LIB: Professional Dust Chamber Manufacturer
Since 2009, Xi An LIB Environmental Simulation Industry has designed, manufactured, sold, and serviced environmental test chambers globally, promoting "MADE IN CHINA". LIB's comprehensive product range includes temperature/climate chambers, corrosion chambers, dust/water IP chambers, weathering chambers, and custom test solutions for aerospace, automotive, defense, electronics and medical.
-
![Environmental Dust Tight Test Chamber]()
Environmental Dust Tight Test ChamberThe environmental dust tight test chamber from LIB industry simulates a dry and dusty natural environment, it replicates harsh, arid, and dusty conditions to rigorously test product resilience. -
![IP6X Dust Resistant Chamber]()

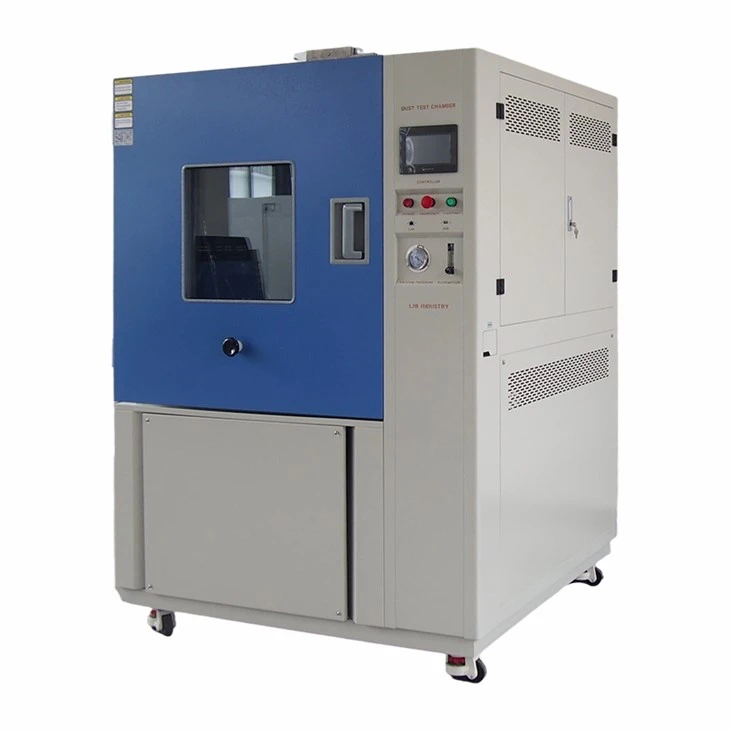

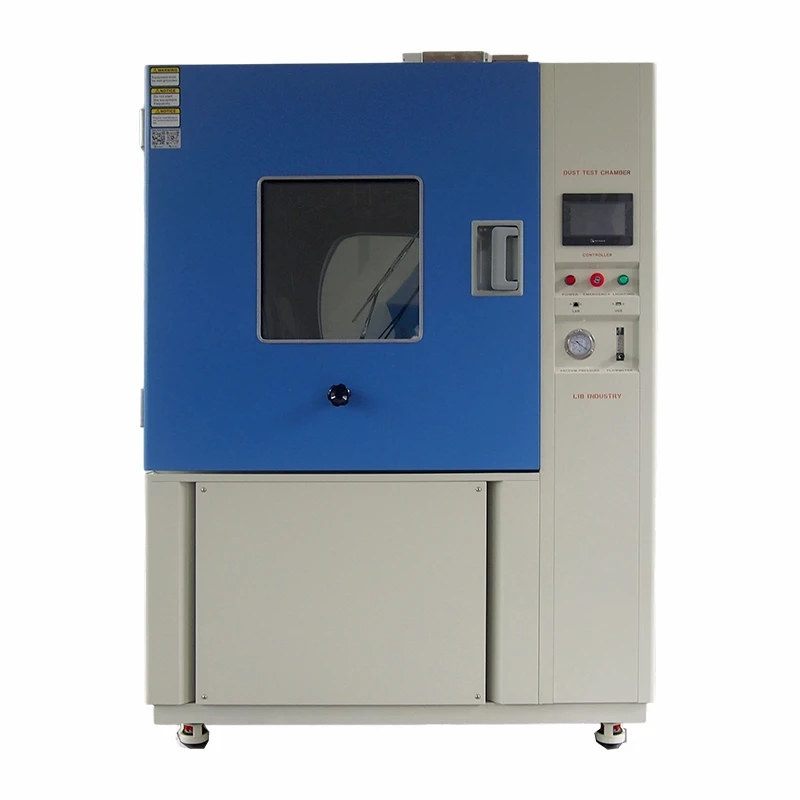

IP6X Dust Resistant ChamberProducts that pass the IP6X dust resistant chamber test mean that they have the highest dust-proof performance level.. Temperature Range: Ambient ~ +50℃. Humidity Range: < 30% RH. Normal Wire -
![MIL STD 810 Dust Chamber]()
MIL STD 810 Dust ChamberMIL STD 810 dust chamber simulates sandstorms and sandstorms to evaluate the dust-proof capabilities of military equipment, communication devices, automobiles and other products.Blowing DustAir -
![Blowing Sand And Dust Test Chamber]()
Blowing Sand And Dust Test ChamberThe blowing sand and dust test chamber can precisely control wind speed, temperature, humidity and dust concentration for testing in accordance with MIL-STD-810H military standard.Interior -
![IP66 Dust Proof Tester]()

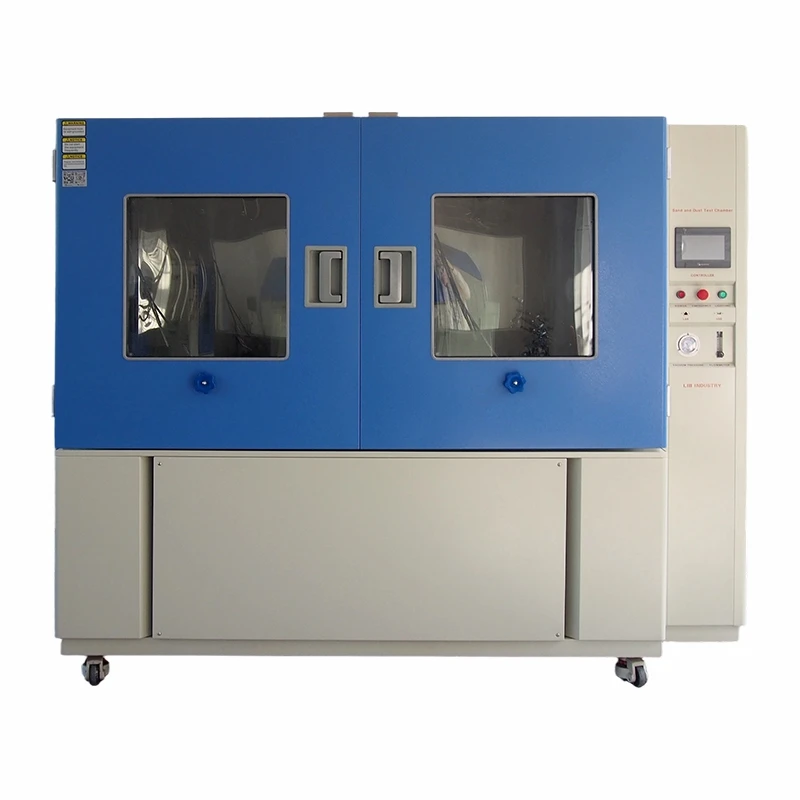

IP66 Dust Proof TesterThe IP66 dust proof tester is divided into two parts: dustproof and water-proof. The dust proof tester only tests for the first number (6), and additional tester is required for the water spray -
![Dust Proof Test Chamber]()
Dust Proof Test ChamberLIB dust proof test chamber evaluates the dust-proof performance of products, widely used in electronics, electrical appliances, and automotive parts.. Model: DI-800 DI-1000 DI-1500 DI-2000. -
![Dust Ingress Test Chamber]()
Dust Ingress Test ChamberThe Dust Ingress Test Chamber verifies product reliability and enclosure integrity under dry, dusty, and airborne particle environments. By accurately simulating suspended dust conditions, the system -
![Dust Chamber IEC 60529]()
Dust Chamber IEC 60529High precision, one-click, fully automatic dust chamber IEC 60529 solution for IP5X/IP6X double test.. Useful Volume (L): 800 1000 1500 2000. Temperature Range: Ambient ~ +50℃. Humidity Range: < 30% -
![Dust Chamber Talcum Powder]()
Dust Chamber Talcum PowderThe dust chamber talcum powder is talcum powder used in the dust chamber to simulate dust and check the IP dust-proof level of the equipment.. Particle size: ≤ 75 µm. Dust concentration: 2 kg/m³. -
![Sand and Dust Test Chamber]()
Sand and Dust Test ChamberThe sand and dust test chamber is used to test the dust-proof performance of the product and complies with the IEC 60529 standard.. Temperature Range: Ambient ~ +50℃. Humidity Range: < 30% RH. Normal -
![IP Dust Test Chamber]()
IP Dust Test ChamberThe IP dust test chamber conducts dust-proof level tests (IP5X/IP6X) and is widely used in various electronic, electrical, automotive and industrial products.. Internal Capacity: 800L, 1000L, 1500L,
Why Choose Us
Quality Assurance
Prioritizing quality, we controls raw materials, production, and inspection, conducting performance tests, functionality checks, commissioning, calibration, and issuing reports for each test chamber, ensuring compliance with CE, RoHS, and other national certifications.
Elite Team
LIB has elite team to service our customers, including R&D team, QC team, sales team and after-sales service center. When we get questions and requests, we reply within 1-3 hours to our clients.
Global Market
Serving 56+ countries with expanding pace, local agents/service centers ease purchasing and support (USA, Canada, UK, Malaysia and more).
Customized Test Solutions
Modular combined test function to meet special test needs, diverse delivered non-standard customized projects.
Types of Dust Chamber
IP6X Dust Resistant Chamber
Products that pass the IP6X dust resistant chamber test mean that they have the highest dust-proof performance level.
01
Blowing Sand And Dust Test Chamber
The blowing sand and dust test chamber can precisely control wind speed, temperature, humidity and dust concentration for testing in accordance with MIL-STD-810H military standard.
02
IP66 Dust Proof Tester
The IP66 dust proof tester is divided into two parts: dustproof and water-proof. The dust proof tester only tests for the first number (6), and additional tester is required for the water spray protection test.
03
Sand and Dust Test Chamber
The sand and dust test chamber is used to test the dust-proof performance of the product and complies with the IEC 60529 standard.
04
IP Dust Test Chamber
The IP dust test chamber conducts dust-proof level tests (IP5X/IP6X) and is widely used in various electronic, electrical, automotive and industrial products.
05
Parameter
|
Model |
DI-800 |
DI-1000 |
DI-1500 |
DI-2000 |
|
Internal Dimension (mm) |
800*1000*1000 |
1000*1000*1000 |
1000*1500*1000 |
1000*2000*1000 |
|
Overall Dimension (mm) |
1040*1450*1960 |
1330*1450*1960 |
1330*1950*1990 |
1330*2450*1990 |
|
Useful Volume (L) |
800 |
1000 |
1500 |
2000 |
|
Temperature Range |
Ambient ~ +50℃ |
|||
|
Humidity Range |
< 30% RH |
|||
|
Normal Wire Diameter |
50um |
|||
|
Nominal Width of a Gap Between wires |
75um |
|||
|
Fight Time |
0 ~ 99H59M |
|||
|
Blowing Time |
0 ~ 99H59M |
|||
|
Specimen Power Outlet |
Dust-proof socket 16A |
|||
|
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|||
|
Safety Device |
Over-temperature Protection; Over-current Protection; Earth Leakage Protection; Phase Sequence Protection |
|||
|
Exterior Material |
A3 Steel Plate with protective coating |
|||
|
Interior Material |
SUS304 stainless steel |
|||
|
Standard Configuration |
Sample shelf, dust wiper, talcum powder(5kgs) |
|||
|
Power |
AC380V 50Hz |
|||
Benefits of Dust Chamber
Safety
Dust test chambers provide a closed testing environment, ensuring the safety of the testing process.
Stability
With the control system, dust test chambers can maintain constant temperature, humidity, and dust concentration, ensuring the accuracy and repeatability of test results.
Flexibility
Dust test chambers can be adjusted and customized according to the requirements of different devices, meeting the dustproof testing needs of various industries.
Observability
Dust test chambers are equipped with observation windows, allowing testing personnel to observe the device’s condition during the test in real-time, improving the efficiency and accuracy of the testing.
Application of Dust Chamber
Electronics and Electrical Equipment: A dust test chamber may be used to assess the efficacy of various components, including seals, connections, and ventilation systems, in terms of preventing dust from entering the space.
Automotive and Aerospace: The air filters, connectors, sensors, and electrical systems of a vehicle are only some of the components that may be subjected to durability testing in a dust test chamber by the aerospace and automotive sectors.
HVAC and Air Filtration Systems: The effectiveness of filters is often evaluated using dust test chambers by their producers to guarantee that the filters are capable of effectively capturing dust particles and preventing them from entering the system and deteriorating the quality of the indoor air.
Consumer Goods and Appliances: A dust test chamber allows for the performance, durability, and safety of a product to be examined in relation to the impacts of dust exposure.
Military and Defense Equipment: Dust test chambers that are designed to simulate these conditions are used to evaluate military-grade equipment such as communication devices, vehicles, and protective gear before they are put into use.
Product Details

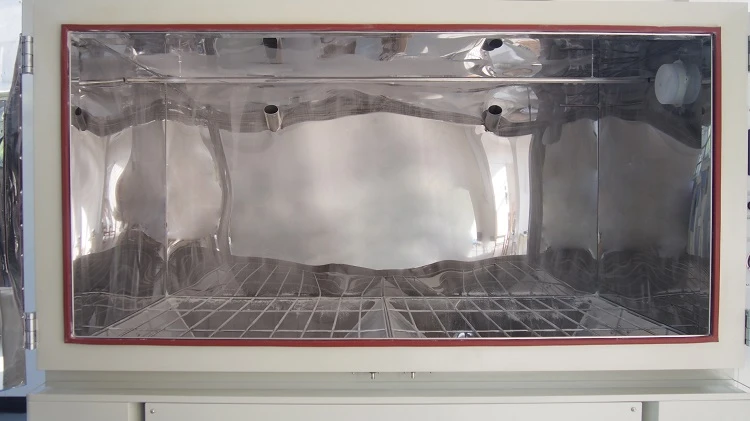

Double-door Workroom
Double-door Workroom:

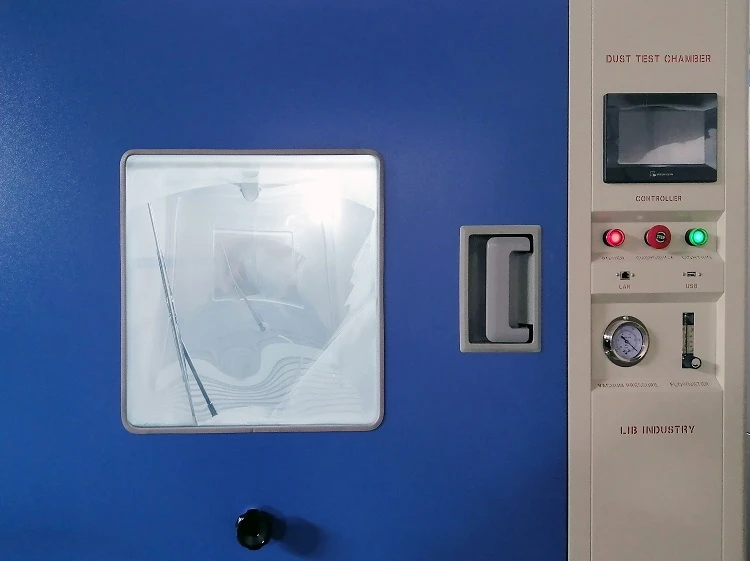

Viewing Window
Double toughened glass observation window, with brush to wipe dust in time, the work room is also equipped with lighting, easy to observe the test process.

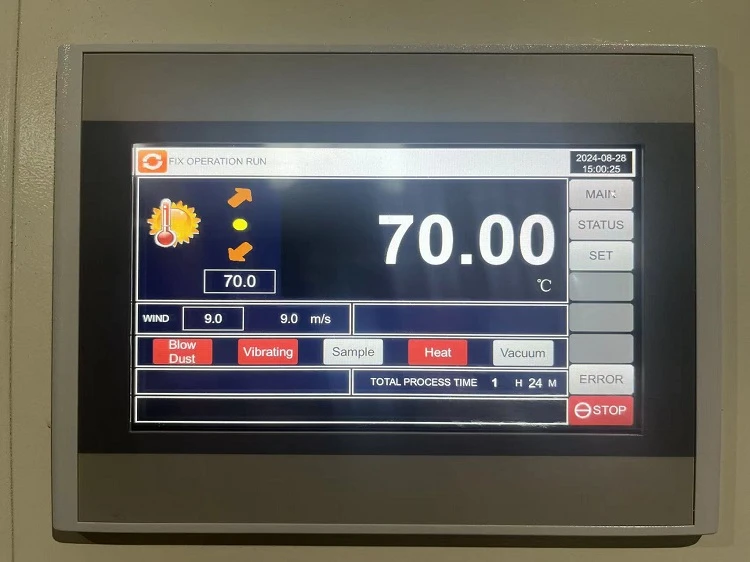

PID Controller
Touchable PLC control system, man-machine interface is friendly, easy to operate, can set the test time, fan running cycle, vibration cycle and other parameters.

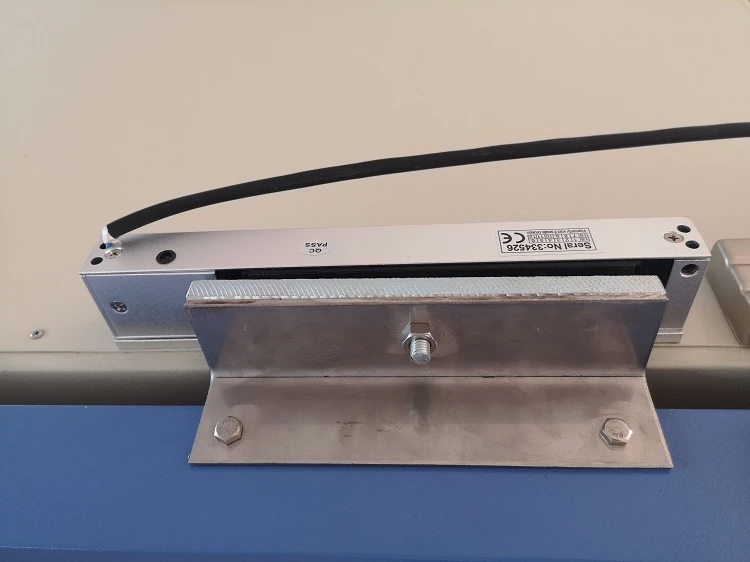

Electromagnetic Lock
It helps to maintain the integrity of the test environment by ensuring that the dust - filled interior of the chamber remains sealed during operation.
Installation Requirements of Dust Chamber
The site must have enough space to accommodate the test equipment and appropriate maintenance space;
The power supply of the device shall have good grounding facilities;
The space height of the site shall enable the device to operate normally, maintain and repair in the future after the placement;
The perennial temperature of the device shall be kept at 2-35 ℃, and the relative humidity shall not be greater than 85%, and there shall be good ventilation facilities;
It shall be installed in a place with little dust;
The ambient temperature of the installation site must not change rapidly;
It shall be installed on the horizontal ground (the level shall be determined on the ground with a spirit level during installation);
It shall be installed in a place without direct sunlight;
It shall be installed far away from combustibles, explosives and high temperature heat sources.
Customization Process
Inquiry: Tell us about your requirements. Phone Number: +8618700875368, E-mail: Info@libtestchamber.com.
1
>>
Design: We provide solutions for you, to make standard test chambers or design the custom chambers.
2
>>
Production: Arrange the production of test chambers according to parameters.
3
>>
Inspection: Inspection and issue test report.
4
>>
Shipping: Packing and ship to your laboratory.
5
>>
Installation& Training: On site installation, commissioning and training.
6
Warranty Service Policy
36 Months warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
At first, our test chambers are produced based on 20 years product lifetime. Normally once test chambers have problems, we judge the problems, and send spare parts to our customers, and teach them how to change new parts on by email or video. Within 3 years, all spare parts and shipping cost (by DHL, TNT, and FedEx) paid by our company LIB.
If customers need our engineers on-site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineer’s repair, we will produce a new test chamber (same as the old one) to our customers with no charge. You can contact our local service center in overseas market to get service and product.
Quality Control Process
Raw Materials
When selecting raw materials, LIB team has a strict incoming inspection process to protect the rights and interests of customers from the root.
R&D and Design
An independent product design and development team, with close cooperation among all departments, continuously optimizes and improves product structure and technology to customize unique solutions for customers.
Standardized Production Process
Drawings, laser, cutting, bending, welding, assembly, power distribution, debugging. Through continuous improvement and perfection in production practice, we ensure production safety and improve product quality.
QC
Precise and third-party verified testing equipment, such as 9-point recorder, all machines have passed 9-point temperature test or 7-day uninterrupted operation and debugging before leaving the factory to ensure product quality and performance, and ensure that customers receive Satisfied machine.
Packaging and Shipping
|
Packaging |
First, seal chamber with waterproof plastic film.Protect chamber from seawater corrosion. Second, buffer foam is placed in the four corners of the chamber.It is used for fixing equipment to prevent shaking and damaging chamber during transportation. Plywood: Standard wood export packaging.The wooden box is fixed by sheet metal to prevent damage during transportation. |
|
Shipping |
With strong packaging suitable for sea, air, railway, and truck transport, LIB provides door-to-door logistics. |
|
Warranty |
3 Years Warranty |
Our Factory
Our Certificates
FAQ
As one of the most professional dust chamber manufacturers and suppliers, we're featured by quality products and good price. Please rest assured to wholesale discount dust chamber in stock here and get quotation from our factory. Contact us for customized service.
Dust Proof Test Chamber, IP66 Dust Proof Tester, Dust Chamber IEC 60529
