The LIB IP6X dust resistant chamber is designed to simulate extreme dust environments and is suitable for testing the dustproof performance of electronic equipment, automotive parts, industrial instruments and other products (IP6X class certification). Accelerate the verification of seal integrity and long-term reliability in dusty environments with precise control of dust concentration, airflow speed, temperature and cycle times.
Key features
iP6X dust resistant chamber
Dust concentration (2~4kg/m³), airflow speed, temperature real-time monitoring.
Enhanced dust erosion intensity and compress the wear of the natural environment to hundreds of hours.
IP5X,IP6X, ISO 20653, IEC 60529 and other international standards.
Dust testing of metal, plastic, rubber, electronic components, precision instruments.
Customized workroom size,sample frame structure for special-shaped parts.
Fully closed cycle dustproof design, dust recovery rate ≥98%.
SUS304 material, the inner wall seamless design to prevent dust residue.
parameter list
IP6X Dust Resistant Chamber
|
Model |
DI-800 |
DI-1000 |
DI-1500 |
DI-2000 |
|
Internal Dimension (mm) |
800*1000*1000 |
1000*1000*1000 |
1000*1500*1000 |
1000*2000*1000 |
|
Overall Dimension (mm) |
1040*1450*1960 |
1330*1450*1960 |
1330*1950*1990 |
1330*2450*1990 |
|
Useful Volume (L) |
800 |
1000 |
1500 |
2000 |
|
Temperature Range |
Ambient ~ +50℃ |
|||
|
Humidity Range |
< 30% RH |
|||
|
Normal Wire Diameter |
50um |
|||
|
Nominal Width of a Gap Between wires |
75um |
|||
|
Fight Time |
0 ~ 99H59M |
|||
|
Blowing Time |
0 ~ 99H59M |
|||
|
Specimen Power Outlet |
Dust-proof socket 16A |
|||
|
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|||
|
Safety Device |
Over-temperature Protection; Over-current Protection; Earth Leakage Protection; Phase Sequence Protection |
|||
|
Exterior Material |
A3 Steel Plate with protective coating |
|||
|
Interior Material |
SUS304 stainless steel |
|||
|
Standard Configuration |
Sample shelf, dust wiper, talcum powder(5kgs) |
|||
|
Power |
AC380V 50Hz |
|||
Product details
IP6X Dust Resistant Chamber

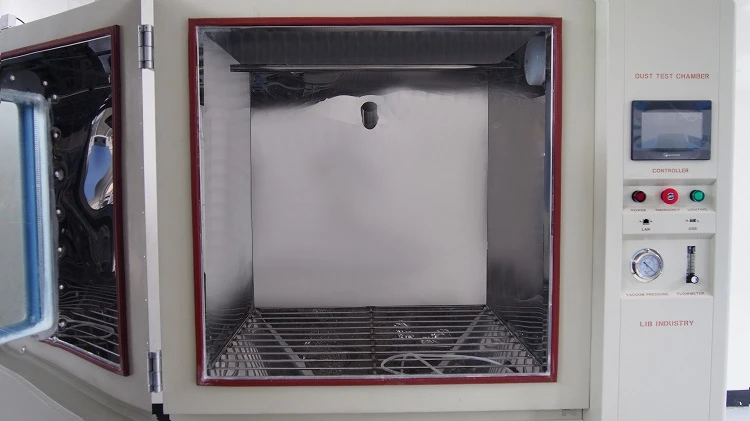

Workroom
The heating tube inside of the workroom keeps the temperature at the right level to stop the dust from clumping together. This ensures smooth airflow, a steady flow of dust, and even dust distribution, which improves the accuracy of tests and prevents interruptions

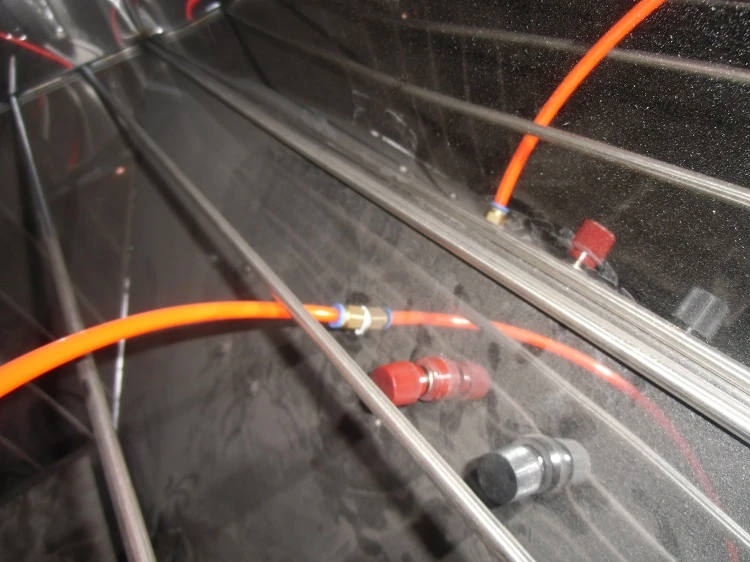

Built-in wiring port
The integrated wiring port offers a practical way to power or control test equipment during testing without affecting the chamber's performance.

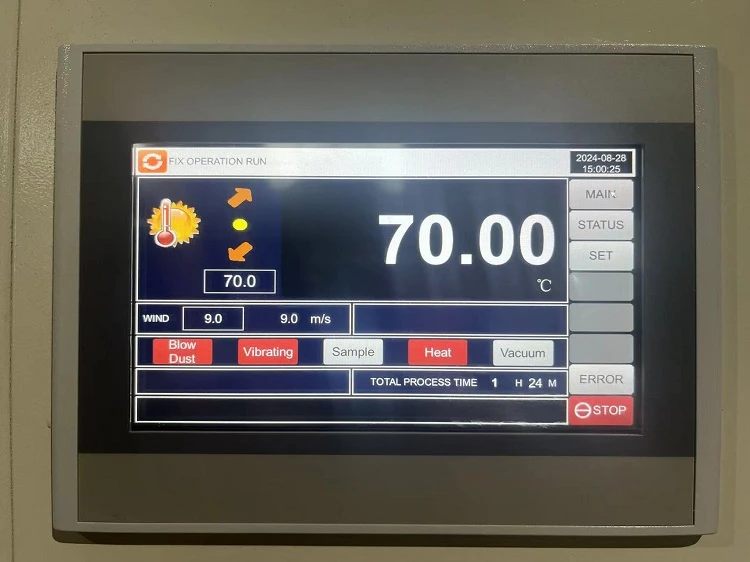

PID Controller
Allows Ethernet remote access and PC software monitoring, enabling technicians to operate and check testing status off-site.
Talcum powder
The test uses talcum powder with a size of about 50 um,. It ensures that the test results closely reflect actual usage conditions, helping you predict real-world product performance more accurately.
LIB IP6X dust resistant chamber passed CE, RoHS certification, warranty for 3 years.
It is also equipped with movable sample rack and dust recovery device.
LIB service promise: 24-hour fast response, lifelong technical support, customized services.
Contact us today for a free design and quote!
