The IP dust test chamber is a professional equipment used to evaluate the dust resistance of electrical product enclosures according to IEC 60529 standards. The equipment can carry out IP5X (dust) and IP6X (dust density) to test the tightness of the product, which is suitable for the protection level certification of electronics, electrical appliances, automobiles, lighting, communication equipment and other products.
Key features
IP Dust Test Chamber
Dual test mode: IP5X (limited dust entry) and IP6X (no dust entry) test.
SUS304 stainless steel, resistant to wear and corrosion.
Closed air duct system, with circulating fan, to ensure the continuous suspension of dust, no deposition.
Vibration motor to ensure the uniform distribution of dust particles and no agglomeration.
Double-layer door seal and electromagnetic lock, reliable test dust and no leakage
Cable diameter Φ50mm to facilitate sample test wiring
Sound insulation design, low noise fan, running noise <65 dB
parameter list
IP Dust Test Chamber
Model |
DI-800 |
DI-1000 |
DI-1500 |
DI-2000 |
Internal Dimension (mm) |
800*1000*1000 |
1000*1000*1000 |
1000*1500*1000 |
1000*2000*1000 |
Overall Dimension (mm) |
1040*1450*1960 |
1330*1450*1960 |
1330*1950*1990 |
1330*2450*1990 |
Useful Volume (L) |
800 |
1000 |
1500 |
2000 |
Temperature Range |
Ambient ~ +50℃ |
|||
Humidity Range |
< 30% RH |
|||
Normal Wire Diameter |
50um |
|||
Nominal Width of a Gap Between wires |
75um |
|||
Fight Time |
0 ~ 99H59M |
|||
Blowing Time |
0 ~ 99H59M |
|||
Specimen Power Outlet |
Dust-proof socket 16A |
|||
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|||
Safety Device |
Over-temperature Protection; Over-current Protection; Earth Leakage Protection; Phase Sequence Protection |
|||
Exterior Material |
A3 Steel Plate with protective coating |
|||
Interior Material |
SUS304 stainless steel |
|||
Standard Configuration |
Sample shelf, dust wiper, talcum powder(5kgs) |
|||
Power |
AC380V 50Hz |
|||
Product details
IP Dust Test Chamber
Double-door Workroom
The workroom features double doors made from A3 steel plate on the exterior, ensuring cleanliness and preventing static buildup, while also being resistant to external wear.

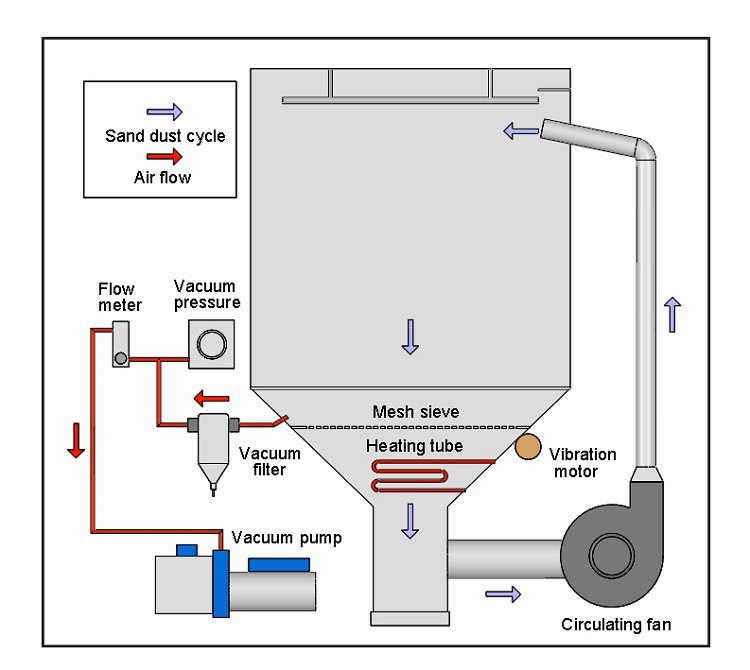

Sand and Dust Circulation System
Dust is sprayed into the workroom through this outlet. The vertical circulating airflow design enables the dust to be smoothly blown into the working room, forming an efficient dust - blowing circulation system.
Talcum powder
A controlled dust level of 2 kg/m³ ensures accurate and consistent testing. And we include 5 kg of complimentary talcum powder to help you begin testing without extra cost.
PID Controller
Displays real-time curves for temperature and dust concentration; historical data can be tracked and exported via USB interfaces.
Now consult the IP dust test chamber, LIB will provide a one-stop solution: design, production, door-to-door shipping, and complimentary talc. Customize your IP dust test chamber to meet stringent industry standards.
