The IP66 dust proof tester is specifically used to evaluate the dust-proof performance of the enclosures of various electronic and electrical products, and complies with the test requirements for the IP6X protection grade in IEC 60529. IP66 dust proof tester effectively tests the sealing performance and protective capacity of the product in harsh dust environments by simulating a high-concentration dust environment and combining it with a negative pressure extraction system.
Key features
IP66 Dust Proof Tester
Precise negative pressure exhaust system enhances the authenticity and validity of the test.
Test time setting, dust circulation, alarm prompt and other fully automated operations
Made of SUS304, it is corrosion-resistant and wear-resistant.
High-performance blower device ensures that the dust is evenly distributed within the cavity
Structure of the workroom is simple and the dust cleaning is convenient
Multiple protection mechanisms such as overvoltage, overcurrent, phase loss and over-temperature.
Suitable for testing products of various specifications and sizes and is widely used in multiple industries.
parameter list
IP66 Dust Proof Tester
|
Model |
DI-800 |
DI-1000 |
DI-1500 |
DI-2000 |
|
Internal Dimension (mm) |
800*1000*1000 |
1000*1000*1000 |
1000*1500*1000 |
1000*2000*1000 |
|
Overall Dimension (mm) |
1040*1450*1960 |
1330*1450*1960 |
1330*1950*1990 |
1330*2450*1990 |
|
Useful Volume (L) |
800 |
1000 |
1500 |
2000 |
|
Temperature Range |
Ambient ~ +50℃ |
|||
|
Humidity Range |
< 30% RH |
|||
|
Normal Wire Diameter |
50um |
|||
|
Nominal Width of a Gap Between wires |
75um |
|||
|
Fight Time |
0 ~ 99H59M |
|||
|
Blowing Time |
0 ~ 99H59M |
|||
|
Specimen Power Outlet |
Dust-proof socket 16A |
|||
|
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|||
|
Safety Device |
Over-temperature Protection; Over-current Protection; Earth Leakage Protection; Phase Sequence Protection |
|||
|
Exterior Material |
A3 Steel Plate with protective coating |
|||
|
Interior Material |
SUS304 stainless steel |
|||
|
Standard Configuration |
Sample shelf, dust wiper, talcum powder(5kgs) |
|||
|
Power |
AC380V 50Hz |
|||
Product details
IP66 Dust Proof Tester

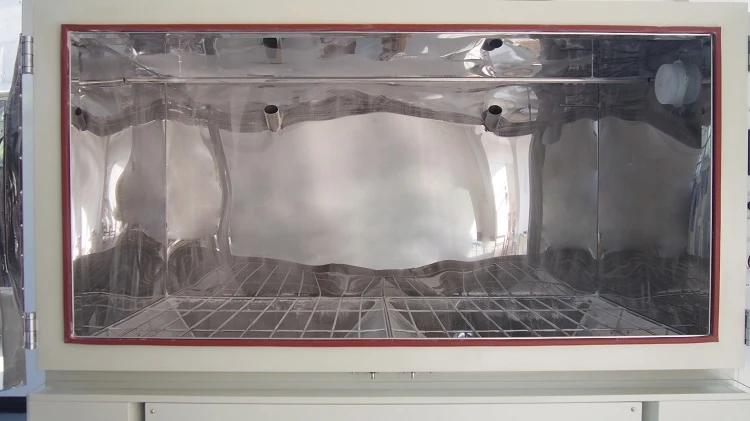

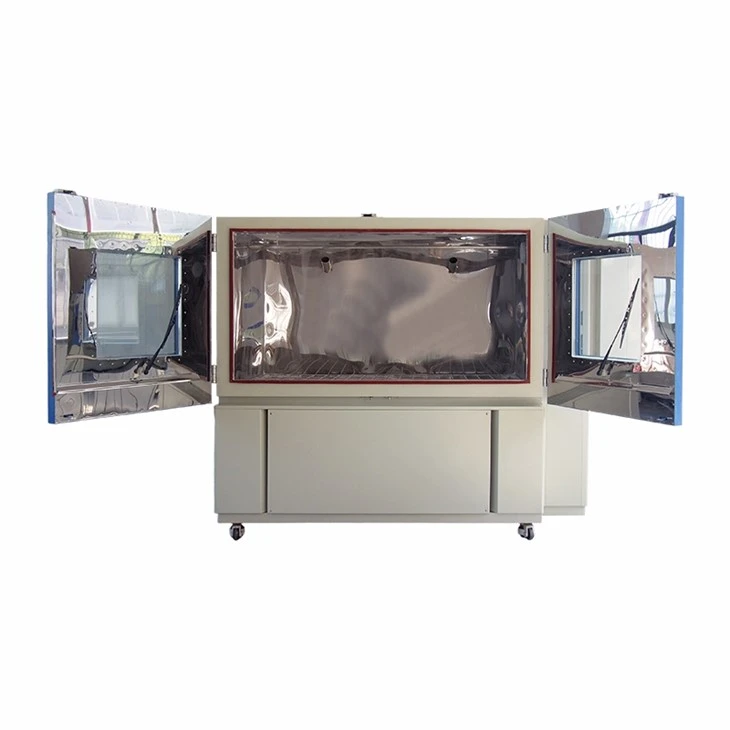

Double-door Workroom
The double-door design is especially beneficial for larger chambers, allowing for easier and more convenient access when loading and unloading test specimens, ensuring smooth operation while maintaining the integrity of the test environment.

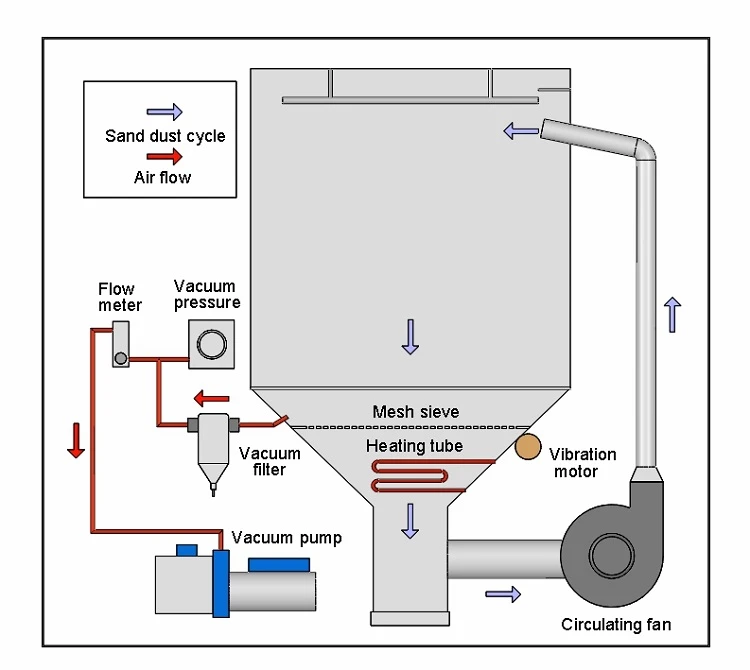

Sand and Dust Circulation System
The circulation pump moves the dust to the outlet and spreads it evenly throughout the testing area using vertical airflow. This guarantees that the dust environment is uniform, ensuring consistent test conditions and reducing any differences in results.

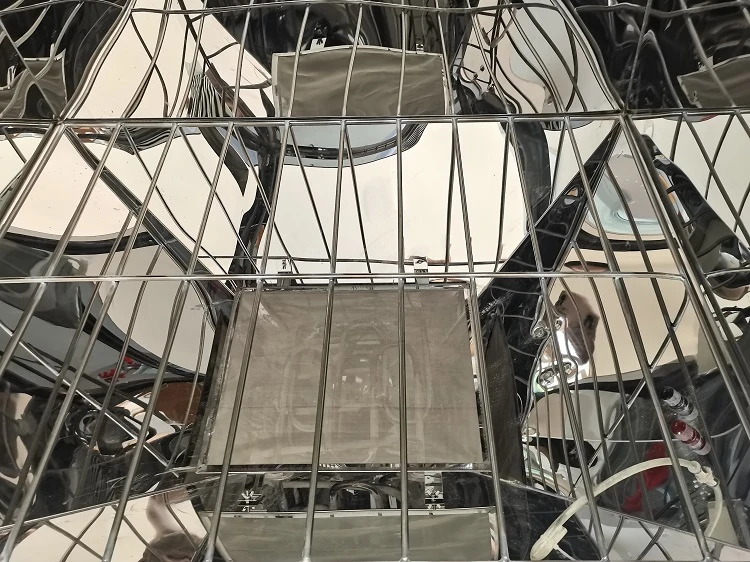

Mesh sieve
The mesh sieve (75 μm) filters out larger dust particles, making sure only the right-sized dust moves through the system. This helps keep the dust flow consistent, protects the equipment from damage, and makes the tests more reliable while extending the equipment's life.

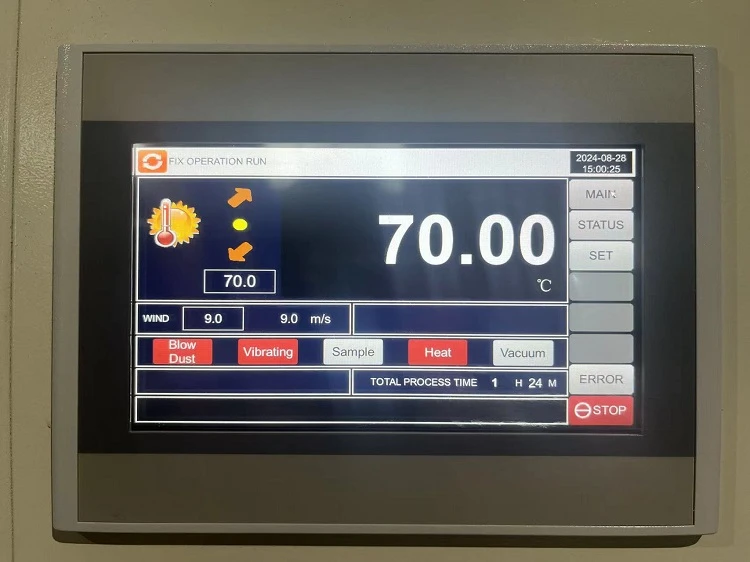

PID Controller
Automatically triggers alarms when temperature or dust concentration exceeds preset limits, ensuring test safety and stability.
Choose the LIB IP66 dust proof tester and talcum powder is given for free. The equipment also enjoys an ultra-long 3-year warranty and lifetime service, allowing your products to easily pass the international standard certification. Contact LIB immediately to obtain product information and professional dust-proof testing solutions!
