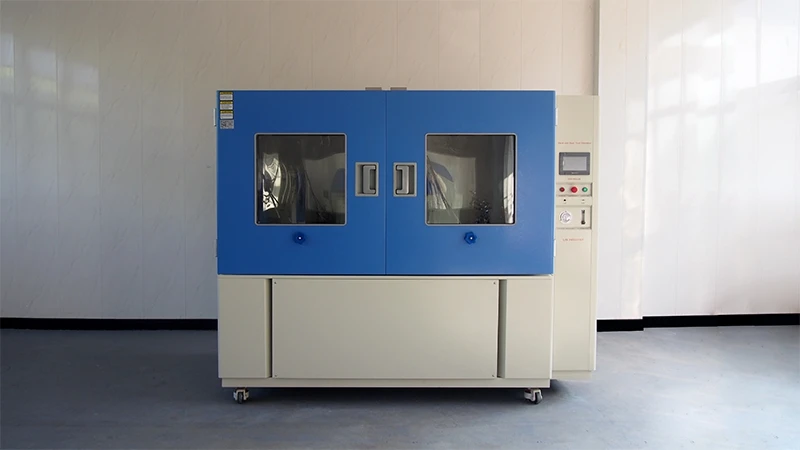

The dust proof test chamber evenly arranges standard dust (such as talcum powder) in a closed space to simulate a dusty environment in nature, and examines whether the protective ability of the product shell against dust particles and the internal performance are affected. The test process is based on the IP5X and IP6X grade requirements in the IEC 60529 standard. It is equipped with a dust circulation system, air flow regulation, pressure difference control and timing functions.
Key features
Dust Proof Test Chamber
In accordance with standards such as IEC 60529 and ISO 20653, it supports IP5X (dust prevention) and IP6X (dust tightness) tests
High-power fans and airflow guidance design ensure uniform suspension of dust.
Applicable to various dust materials, such as talcum powder (particle size ≤75μm), silica powder and other test dusts.
High-efficiency airtightness control, adjustable internal negative pressure of the sample.
Touch screen controller allows for free programming and setting of test parameters.
SUS304 stainless steel, anti-corrosion and wear-resistant, suitable for long-term use requirements.
The heating element is located at the bottom of the dust screen to prevent the dust from caking
parameter list
Dust Proof Test Chamber
Model |
DI-800 |
DI-1000 |
DI-1500 |
DI-2000 |
Internal Dimension (mm) |
800*1000*1000 |
1000*1000*1000 |
1000*1500*1000 |
1000*2000*1000 |
Overall Dimension (mm) |
1040*1450*1960 |
1330*1450*1960 |
1330*1950*1990 |
1330*2450*1990 |
Useful Volume (L) |
800 |
1000 |
1500 |
2000 |
Temperature Range |
Ambient ~ +50℃ |
|||
Humidity Range |
< 30% RH |
|||
Normal Wire Diameter |
50um |
|||
Nominal Width of a Gap Between wires |
75um |
|||
Fight Time |
0 ~ 99H59M |
|||
Blowing Time |
0 ~ 99H59M |
|||
Specimen Power Outlet |
Dust-proof socket 16A |
|||
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|||
Safety Device |
Over-temperature Protection; Over-current Protection; Earth Leakage Protection; Phase Sequence Protection |
|||
Exterior Material |
A3 Steel Plate with protective coating |
|||
Interior Material |
SUS304 stainless steel |
|||
Standard Configuration |
Sample shelf, dust wiper, talcum powder(5kgs) |
|||
Power |
AC380V 50Hz |
|||
Product details

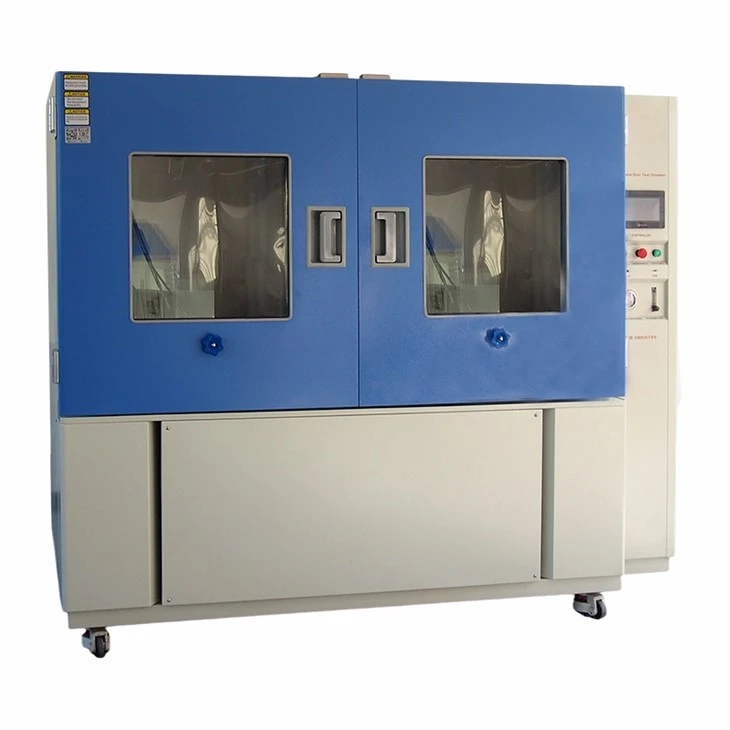

Dust Proof Test Chamber

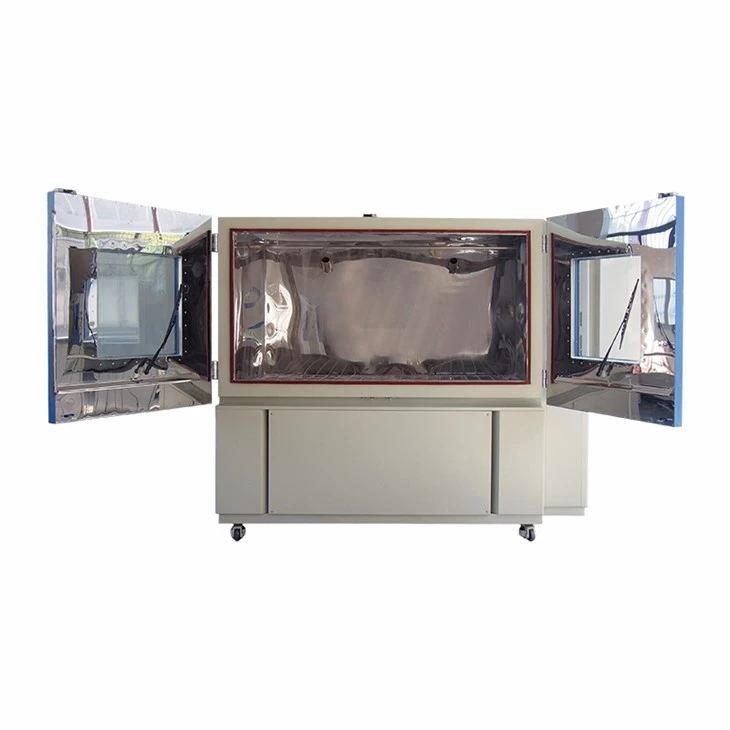

Double-door Workroom
SUS 304 material, resistant to dust wear. The inner wall is smooth without dead corners, equipped with multi-angle airflow diffusion system to ensure uniform distribution of sand and dust.
Viewing Window
Double toughened glass observation window, with brush to wipe dust in time, the work room is also equipped with lighting, easy to observe the test process.
PID Controller
Touchable PLC control system, man-machine interface is friendly, easy to operate, can set the test time, fan running cycle, vibration cycle and other parameters. Supports remote monitoring and data export.
Electromagnetic Lock
It helps to maintain the integrity of the test environment by ensuring that the dust - filled interior of the chamber remains sealed during operation.
If you are looking for high-precision dust proof test chamber, the LIB dust proof test chamber will be the best choice. Contact LIB to get more customized solutions and technical support to ensure your products still operate perfectly in extreme environments!
