The dust chamber IEC 60529 can generate and control the dust environment. According to the IEC 60529 standard, the dust chamber IEC 60529 assesses the enclosure protection level of equipment for solid particulate matter. IEC 60529 defines solid particles of different sizes and the potential hazards they may cause to the interior of equipment, including IP5X tests (dust spray) and IP6X tests (complete dust).
Key features

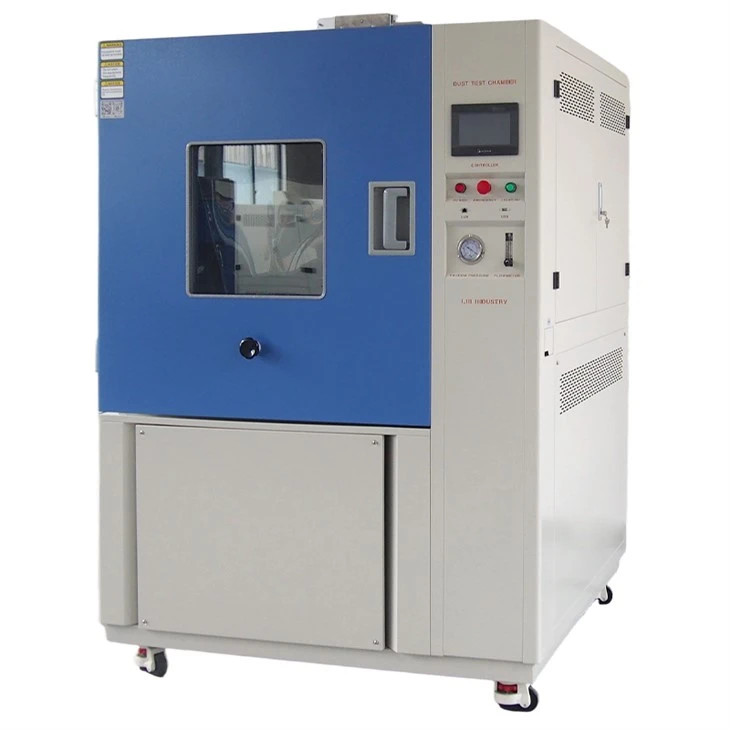

Dust Chamber IEC 60529
High-precision dust concentration control (e.g. 2 kg/m³) ensures stable reproducibility of the test.
Multi-mode dust circulation system: Supports multiple methods such as vacuum suction and air flow blowing
Standardized dust pretreatment screen to ensure that the particle size of the test dust is > 75 μm.
The workroom can be selected and customized according to the size of the tested items
Preset multiple IP5X/IP6X test templates to improve efficiency.
SUS304 stainless steel mirror chamber, corrosion-resistant, prevents dust accumulation
Sealing strips and electromagnetic locks ensure sealing performance and operational safety.
parameter list
Dust Chamber IEC 60529
|
Model |
DI-800 |
DI-1000 |
DI-1500 |
DI-2000 |
|
Internal Dimension (mm) |
800*1000*1000 |
1000*1000*1000 |
1000*1500*1000 |
1000*2000*1000 |
|
Overall Dimension (mm) |
1040*1450*1960 |
1330*1450*1960 |
1330*1950*1990 |
1330*2450*1990 |
|
Useful Volume (L) |
800 |
1000 |
1500 |
2000 |
|
Temperature Range |
Ambient ~ +50℃ |
|||
|
Humidity Range |
< 30% RH |
|||
|
Normal Wire Diameter |
50um |
|||
|
Nominal Width of a Gap Between wires |
75um |
|||
|
Fight Time |
0 ~ 99H59M |
|||
|
Blowing Time |
0 ~ 99H59M |
|||
|
Specimen Power Outlet |
Dust-proof socket 16A |
|||
|
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|||
|
Safety Device |
Over-temperature Protection; Over-current Protection; Earth Leakage Protection; Phase Sequence Protection |
|||
|
Exterior Material |
A3 Steel Plate with protective coating |
|||
|
Interior Material |
SUS304 stainless steel |
|||
|
Standard Configuration |
Sample shelf, dust wiper, talcum powder(5kgs) |
|||
|
Power |
AC380V 50Hz |
|||
Product details
Dust Chamber IEC 60529

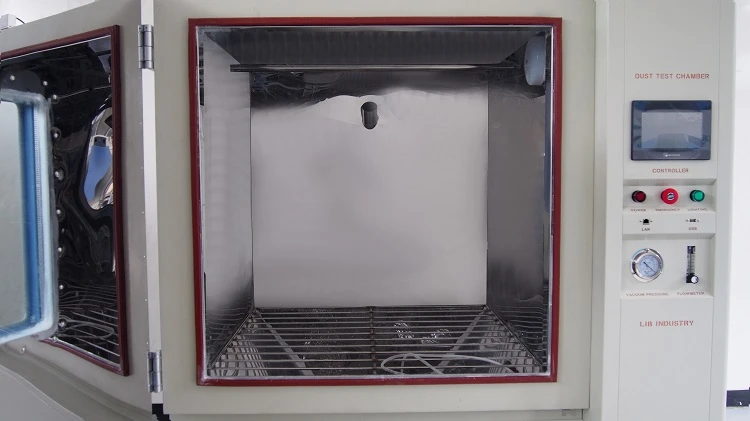

Workroom
Made of SUS 304 stainless steel with a mirror surface, it is highly resistant to high and low temperature as well as moisture corrosion.

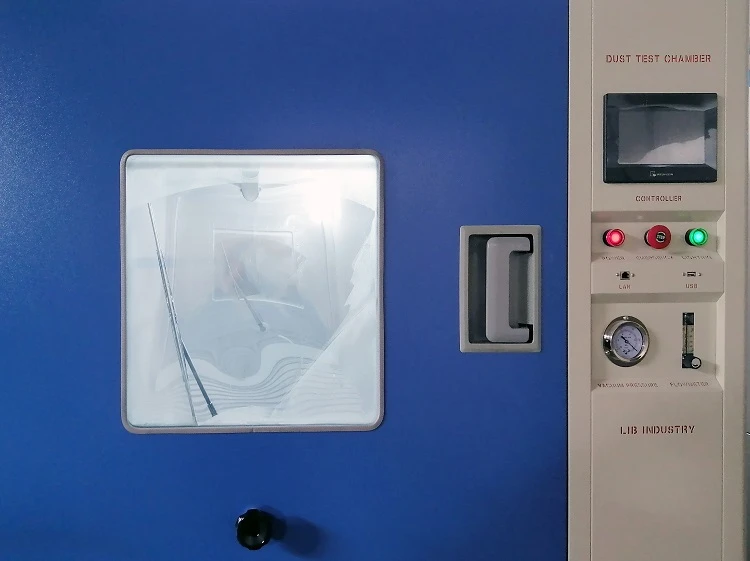

Viewing Window
Equipped with a wiper to remove dust from the window. This ensures that operators can clearly observe the test specimens during the dust - testing process, enabling real - time monitoring of the test situation.

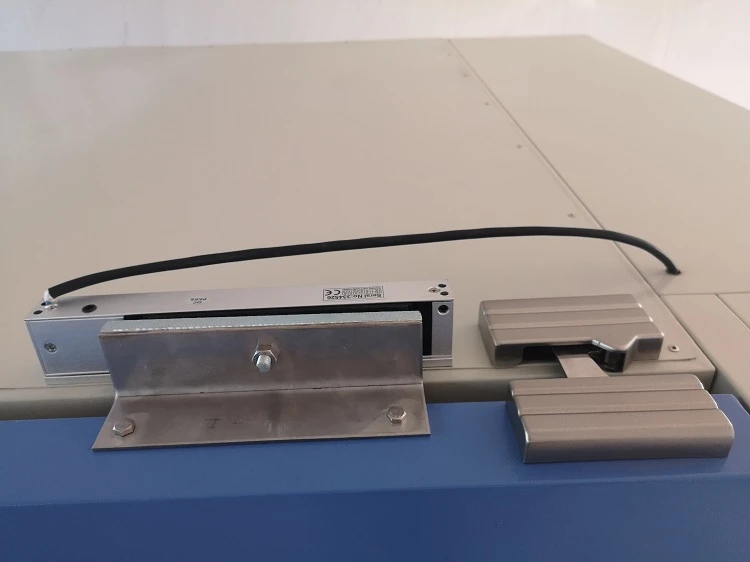

Electromagnetic Lock
Generates a strong suction force to tightly attract the iron plate, effectively locking the door. This lock mechanism is designed for safety purposes, preventing the door from accidentally opening during the test, which could pose risks to the operator and affect the test results.

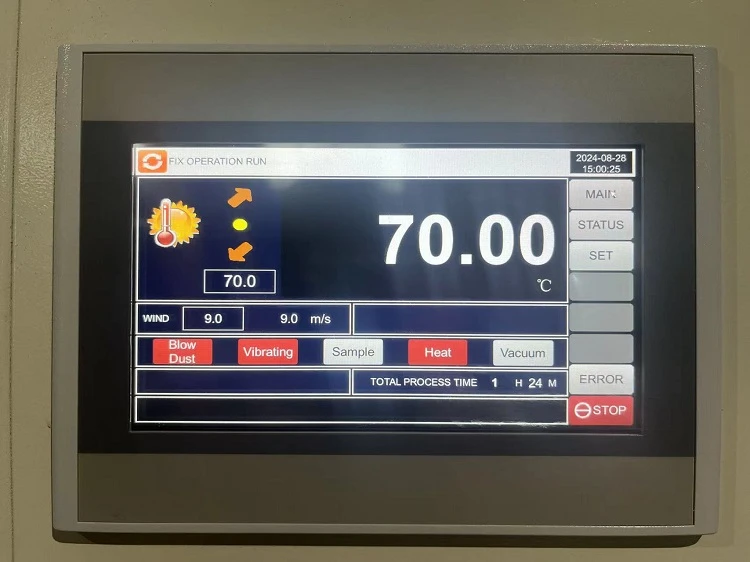

PID Controller
Equipped with a PID programmable color touch screen, allowing intuitive control and real-time display of temperature and sand-dust concentration.
LIB promises a 3-year warranty and lifetime technical support, ensuring your equipment operates stably even in the most demanding dusty environments. Leave your testing requirements and a professional will provide you with a corresponding solution within 24 hours.
