The blowing sand and dust test chamber simulates two test modes: dust test and blowing sand test,in accordance with Method 510.7 of MIL-STD-810H. It can used to evaluate the protection performance of products in extreme dust storms environments. The blowing sand and dust test chamber simulates high temperature, low humidity and strong wind conditions , and is widely used in quality inspection and R & D testing in military, aerospace, automotive, electronics and communication fields.
Key features

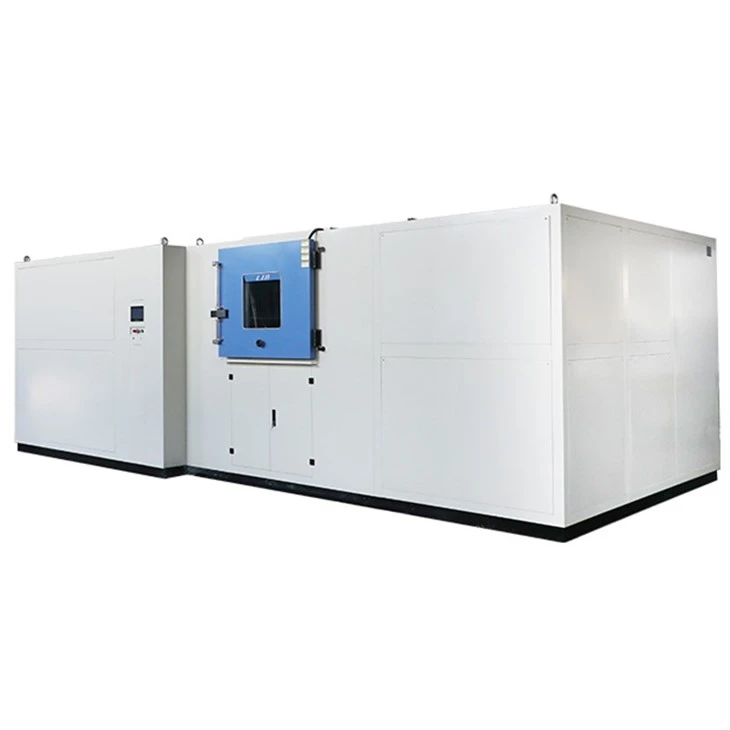

Blowing Sand and Dust Test Chamber
Workroom is made of SUS304 stainless steel, wear-resistant and durable for a long time.
Dust circulation system, efficient dust recovery, reduce material waste.
Dust concentration probe, wind speed probe real-time monitoring data to ensure accuracy.
The control system monitors key indicators , and supports remote monitoring and data export.
An electromagnetic lock prevents the opening of workroom doors by mistake.
Strict compliance with MIL-STD-810H, IEC 60529 and ISO 20653 standards.
parameter list
Blowing Sand And Dust Test Chamber
|
Model |
DIM-1000 |
|
|
Internal Dimension (mm) |
1000*1000*1000mm D*W*H |
|
|
Overall Dimension (mm) |
3000*6100*2200mm D*W*H |
|
|
Interior Volume |
1000L | |
|
Blowing dust |
||
Air velocity |
1.5 -8.9m/s |
|
Concentration of dust |
10.7±7g/ m³ |
|
| Dust particles | ＜ 150μm | |
| Blowing sand | ||
Air velocity |
18.0 -29.0m/s |
|
Concentration of sand |
0.18+0.2g/m³; 1.1+0.3g/m³; 2.2+0.5g/m³ |
|
Sand particles |
149μm - 600μm, 600μm - 850μm |
|
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|
Testing Platform Diameter |
600mm |
|
Door Lock |
Electromagnetic lock |
|
Testing Platform Speed |
1-7 r.p.m |
|
Dust Detector |
Integrated dust detector |
|
Exterior Material |
A3 Steel Plate with protective coating |
|
Interior Material |
SUS304 stainless steel |
|
| Standard | MIL-STD- 810 | |
Product details
Blowing Sand And Dust Test Chamber

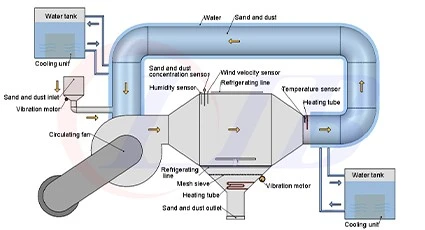

Dust circulation system
Circulation fan (wind speed up to 29 m/s) and circulation duct diversion channel design, so that dust particles form a continuous closed loop circulation. Dust can be recovered from the dust outlet, and dust can be reused.

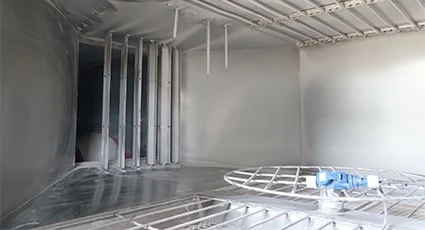

Rotation Turntable
Adjustable speed: Support 1 to 7 rpm speed control, suitable for different test conditions. Standard turntable bearing 50kg, support large equipment testing.

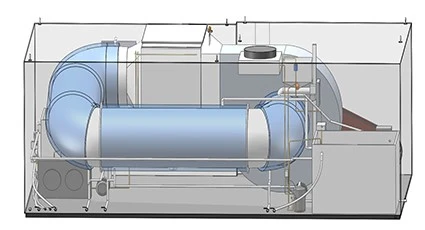

Pipe cooling system
The high wind speed in the test of the equipment will generate a lot of heat on the friction pipe, and the water pipe is wrapped outside the air duct to cool the temperature, which is stable and efficient.
Remote control
Equipped with a high-precision touch controller, it supports multi-segment program editing and automatic operation. Users can easily set parameters such as wind speed, temperature, and test time to ensure a stable and reliable testing process. Support remote connection function.
LIB provides tailor-made blowing sand and dust test chamber solutions for defense, automotive and other industrial sectors. 3 year warranty, lifetime service, solve all your problems in testing, consult LIB now!
