With an internal space of 800L,1000L,1500L,2000L and more customized workspace volume and a specimen capacity of up to 100 kg, it accommodates a wide range of electronics, automotive components, and mechanical parts. The advanced airflow circulation system guarantees uniform dust distribution, with automatic dust feeding system allows adjustable rates,and dust can be recycled and reused. Temperature control from ambient to 50°C and humidity below 30% RH creates realistic arid conditions. Users can program complex testing cycles on the intuitive touchscreen controller, capturing real-time dust concentration, temperature, and exposure duration. Built for repeatable, reliable results, this dust tight test chamber empowers R&D teams and quality engineers to confidently validate product durability and IP5X and IP6X compliance under demanding dust environments.
Features & Advantages of Environmental Dust Tight Test Chamber
Advanced Dust Simulation Capability
Accurately replicates dry, dusty environments with adjustable dust feed rates from 0.1–1 kg/min, capable of simulating sandstorms, fine industrial dust, and desert-like conditions.
High-Efficiency Dust Circulation System
Equipped with a precision airflow system ensuring uniform dust distribution with ±5% deviation, preventing sedimentation and "dead zones" in the dust tight test chamber.
Built-in Interfaces for Integration
Internal ports allow easy connection of sensors, power lines, or data cables, enabling simultaneous functional testing without compromising dust-proof conditions.
Safety and Cleanliness Assurance
Anti-misoperation design, sealed access doors, and integrated filtration protect operators and maintain chamber cleanliness during and after tests.
Intelligent Control & Monitoring
Touchscreen controller records real-time dust concentration, temperature, humidity, and exposure time, with programmable cycles for repeatable, precise testing.
Optimized Air Circulation System
Multi-directional airflow ensures every specimen experiences consistent environmental conditions, reducing testing errors and improving repeatability.
What Are the Technical Specifications You Need to Know?
|
Model |
DI-800 |
DI-1000 |
DI-1500 |
DI-2000 |
|
Internal Dimension (mm) |
800*1000*1000 |
1000*1000*1000 |
1000*1500*1000 |
1000*2000*1000 |
|
Overall Dimension (mm) |
1040*1450*1960 |
1330*1450*1960 |
1330*1950*1990 |
1330*2450*1990 |
|
Useful Volume (L) |
800 |
1000 |
1500 |
2000 |
|
Temperature Range |
Ambient ~ +50℃ |
|||
|
Humidity Range |
< 30% RH |
|||
|
Normal Wire Diameter |
50um |
|||
|
Nominal Width of a Gap Between wires |
75um |
|||
|
Fight Time |
0 ~ 99H59M |
|||
|
Blowing Time |
0 ~ 99H59M |
|||
|
Specimen Power Outlet |
Dust-proof socket 16A |
|||
|
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|||
|
Safety Device |
Over-temperature Protection; Over-current Protection; Earth Leakage Protection; Phase Sequence Protection |
|||
|
Exterior Material |
A3 Steel Plate with protective coating |
|||
|
Interior Material |
SUS304 stainless steel |
|||
|
Standard Configuration |
Sample shelf, dust wiper, talcum powder(5kgs) |
|||
|
Power |
AC380V 50Hz |
|||
Technical Features of LIB Environmental Dust Tight Test Chamber

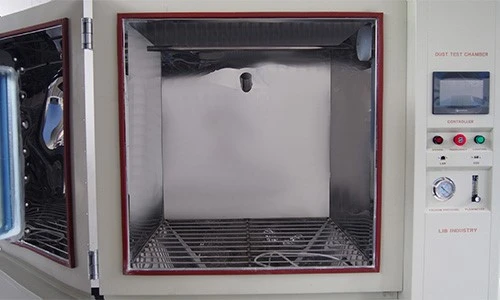

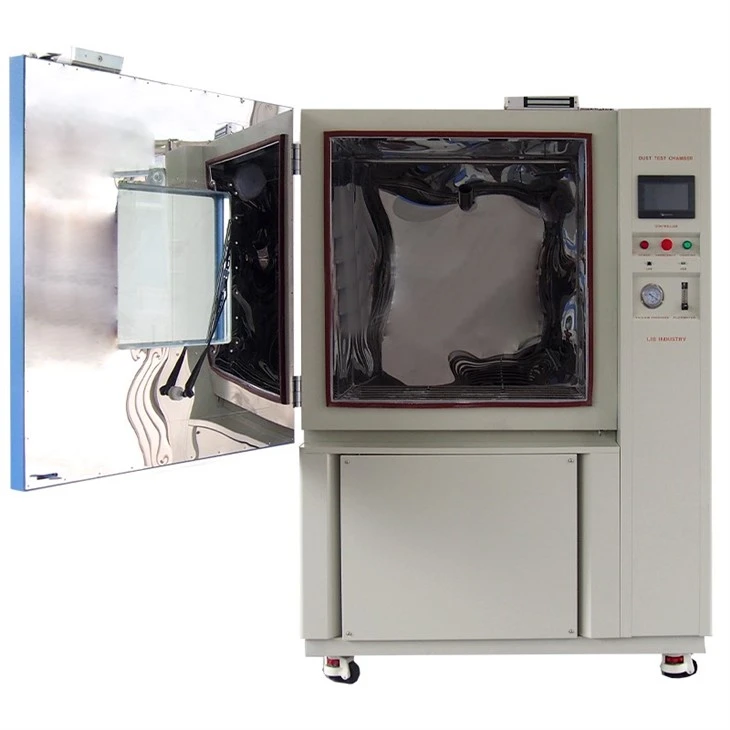

Workspace
- Constructed from mirror-finish SUS304 stainless steel, resistant to sand and dust erosion, and easy to clean
- Interior equipped with built-in LED lighting and observation window with manual wiper for clear visibility

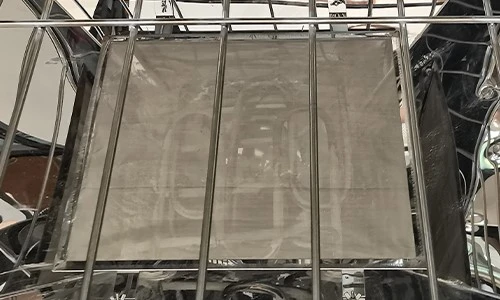

- 2 Sample rack options: bottom grid-style sample rack and top hanging sample rack
- Dust outlet located at the top of the chamber, combined with the air circulation system to ensure uniform dust distribution
- Available in multiple standard sizes to suit different testing needs
Heating Elements
- High-power heating tubes positioned under the dust sieve
- Ensures both the workspace and dust remain dry during testing
- Supports stable environmental conditions for dust resistance tests

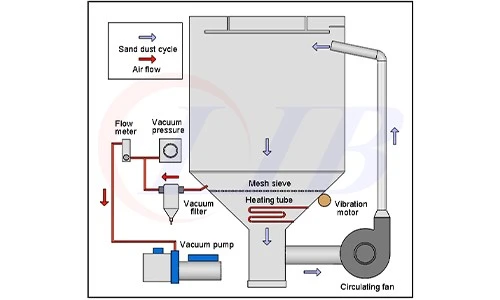

Dust Circulation System
- Top-to-bottom dust flow design: dust enters from the top and returns to the bottom collection port
- Comes with 5 kg of talcum powder compliant with IEC 60529 for sand/dust testing
- Dust can be collected and reused after testing, reducing waste and operational costs
- Paired with the chamber's air circulation system to maintain even dust distribution

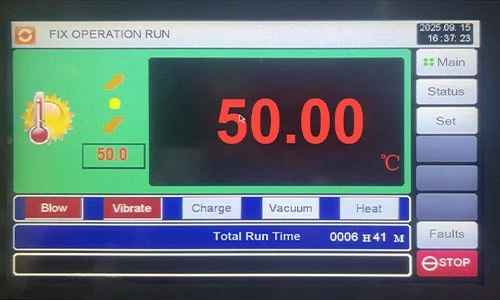

Controller System
- Touchscreen: 7 inch, programmable
- Test Programs: Up to 120 programme 99 steps, adjustable temperature, humidity, duration, dust feed
- Monitoring & Logging: Real-time dust, temperature, export CSV/PDF
- Remote Control & Alarms: Ethernet, alerts for parameter deviations
Vibration Motor
- Maintains particles in suspension, preventing sedimentation
- Ensures uniform dust exposure for all specimens
About IP Testing Solutions- LIB Industry Answers
Q1: Can LIB Industry help set up a new IP testing laboratory?
A: Yes. LIB industry provides complete support for establishing IP testing labs, including selecting suitable dust and water test chambers, configuring test setups for IP5X/IP6X dust tests and IPX1–IPX9K water ingress tests, and advising on workflow and safety compliance.
Q2: Does LIB Industry provide talcum powder required by IEC 60529?
A: Yes. LIB industry supplies 5 kg of IEC 60529-compliant talcum powder suitable for sand and dust testing. The powder can be collected and reused through the chamber's dust return system, ensuring consistent test conditions and operational efficiency.
Q3: Does LIB Industry offer IP water test chambers?
A: Yes. LIB industry provides water ingress test chambers covering IPX1–IPX9K standards, capable of programmable immersion, spray, and high-pressure wash tests, with precise control of water flow, temperature, and duration to ensure repeatable, standard-compliant results.
