Users can flexibly integrate it into existing test lines or experimental platforms. The equipment simulates the natural rainwater environment through a swing pipe or directional nozzle system. The spray angle can reach ±60°, and the nozzle aperture is usually φ 0.4mm. The water flow rate is controlled within the range of 10-15 L/min. The open structure design is convenient for operation, maintenance and cleaning, and at the same time enhances the adaptability of the test equipment in multiple scenarios and application fields.
Key features

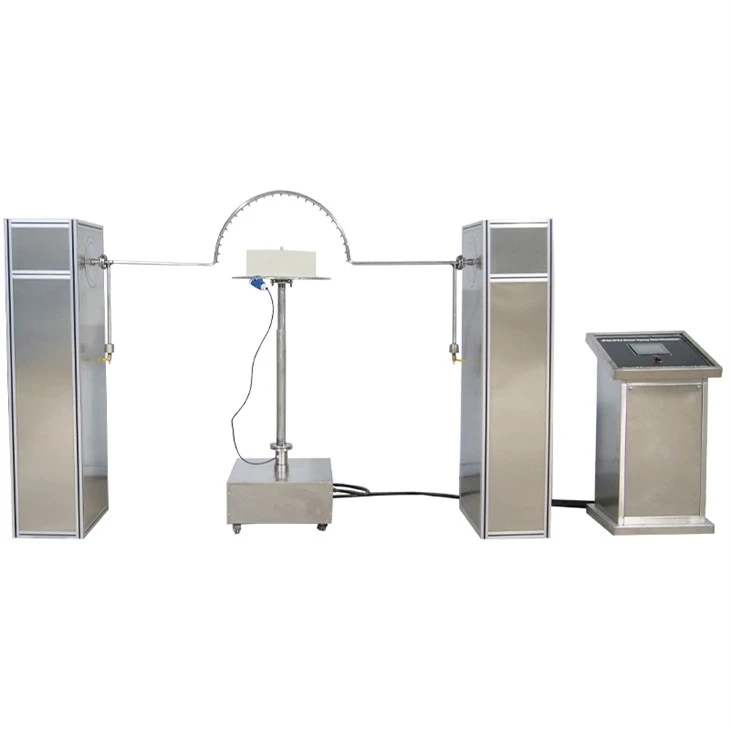

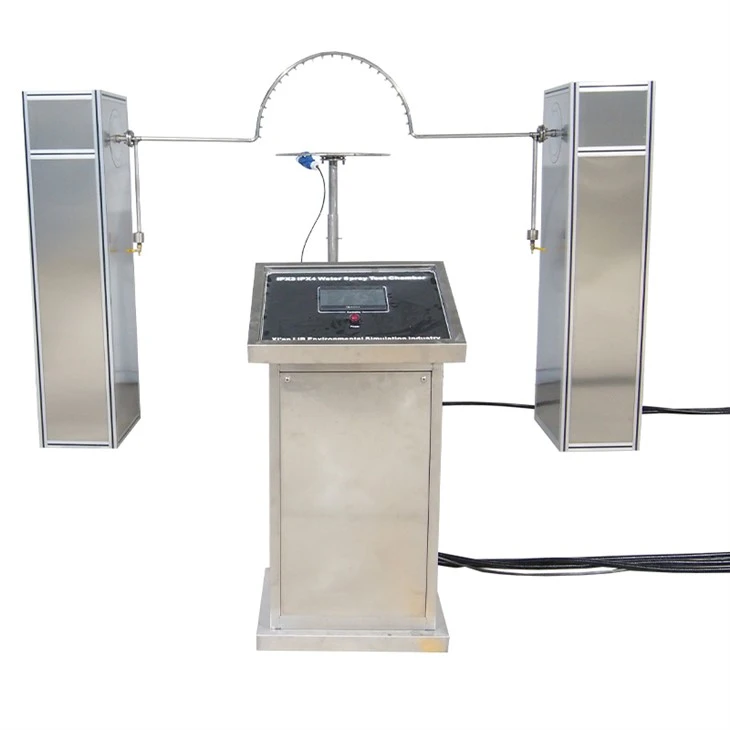

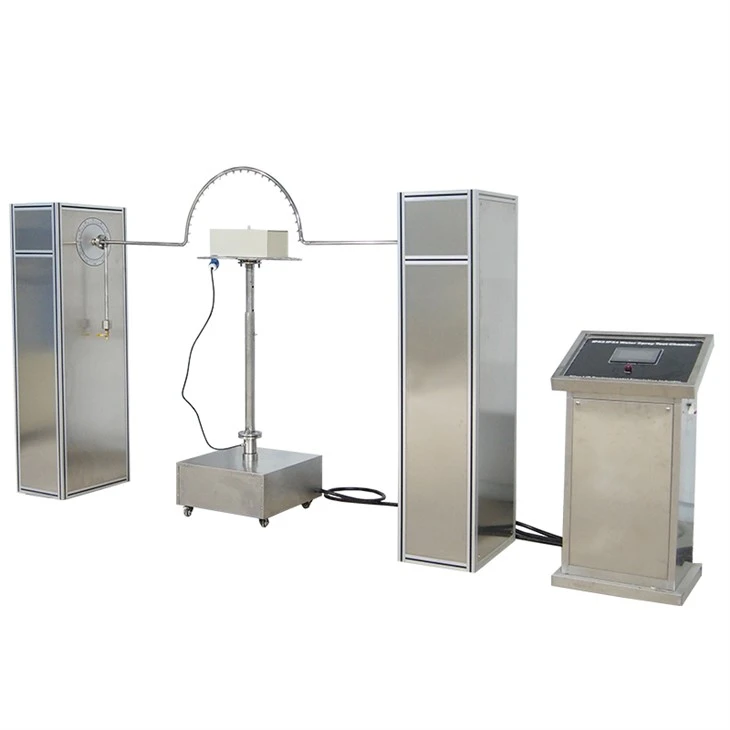

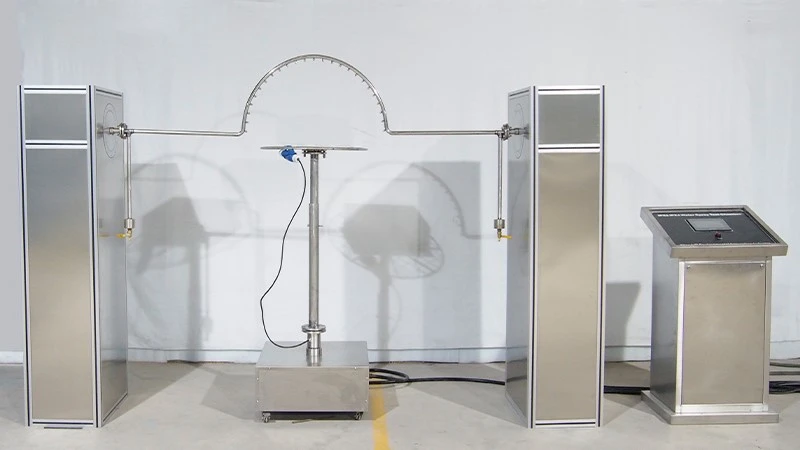

No Housing IPX3 X4 Rain Test Chamber
No shell design, an open structure and flexible operation.
Compatible with IPX3 and IPX4 tests, it supports ±60° swing spray and all-round splash tests.
The adjustable range of water flow is 10-15 L/min, meeting the standard requirements of IEC 60529 for IPX3/X4 testing.
φ 0.4mm standard nozzle to ensure the intensity and uniformity of water flow.

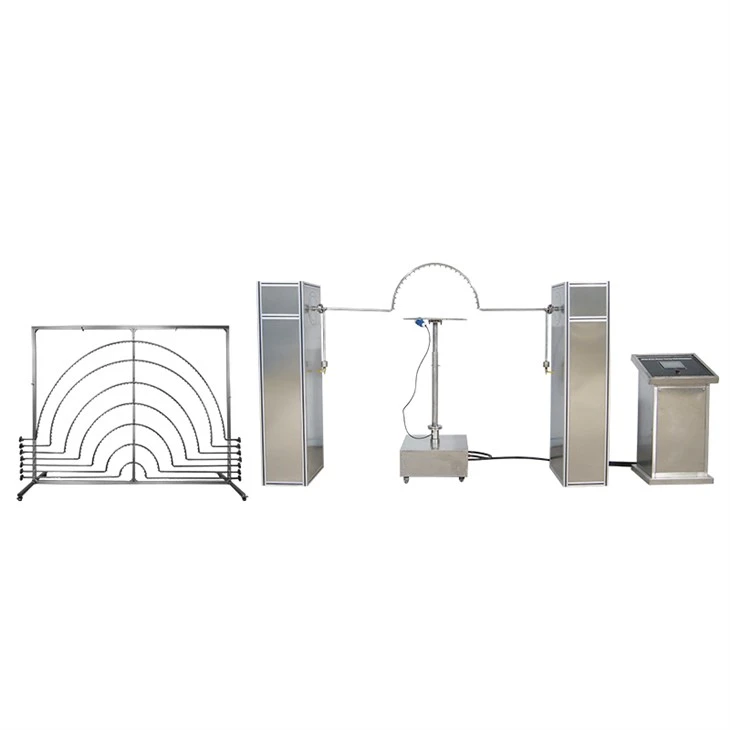

Equipped with multiple sets of detachable swing pipes of different diameters.
The test time range is 1 to 999 minutes, and it is equipped with automatic water spray circulation and intermittent control functions.
All components in contact with water are made of SUS304 stainless steel, rust-proof and corrosion-resistant.
The modular structure design makes it easy to disassemble, drain and maintain, shortening the maintenance cycle.
parameter list
No Housing IPX3 X4 Rain Test Chamber
|
Model |
R-800C |
R-1200C |
||
Oscillating Tube Radius |
400mm |
600mm |
||
Spraying Hole Diameter |
φ0.4mm |
|||
Hole Spacing |
50 mm |
|||
Oscillating angle of Oscillating Tube |
0 ~ ±180° (Adjustable) |
|||
Turntable Rotation Speed |
1r/min (Adjustable speed) |
|||
Controller |
Programmable color LCD touch screen controller, Ethernet connection, USB port |
|||
| Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |||
|
Safety Device |
Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
|||
Product details
No Housing IPX3 X4 Rain Test Chamber
Oscillating Tube
The semi-circular stainless steel swing pipe is adopted, with nozzles evenly distributed. The oscillating angle is ±180°, meeting the IPX3/X4 test requirements. The oscillating rate is adjustable, simulating the oblique spraying of natural rainwater. There are also multiple diameter swing tubes available for replacement to meet the requirements of measuring pieces of different sizes.
Turntable
Equipped with height-adjustable sample trays and support rods, it has strong load-bearing capacity and is suitable for product modules or circuit boards of various shapes and sizes.

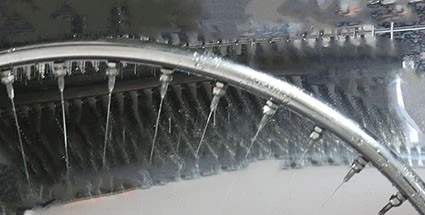

Nozzles
Using a φ 0.4mm precision nozzle, multiple nozzles are distributed on the swing tube or fixed device, allowing for splash water tests on the sample from all directions to ensure complete coverage.
Independent Control System
Color touch screen, multiple language options, PLC module, multi-segment test programming function. Each group can set different water spray times, intervals, water spray types (and other parameters), adapting to complex test requirements. It is equipped with automatic alarm and safety protection functions
In addition to the no-housing IPX3 X4 rain test chamber, LIB can also provide a complete set of shell-less equipment with waterproof grades (IPX1 to IPX9). LIB promises: All products come with a 3-year warranty and 24/7 technical support. LIB is here to safeguard your testing.
