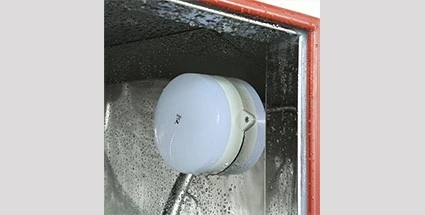

The LIB IP56 waterproof chamber can carry out IPX5 (water jet protection in any direction) and IPX6 (strong water jet protection) waterproof level test, which is often used to simulate outdoor rain splashing, cleaning water washing and other scenes; Verify that the product housing (electronic equipment, electrical components, outdoor equipment, household appliances, etc.) can withstand water pressure shocks from water guns, strong water columns, etc.
Key features

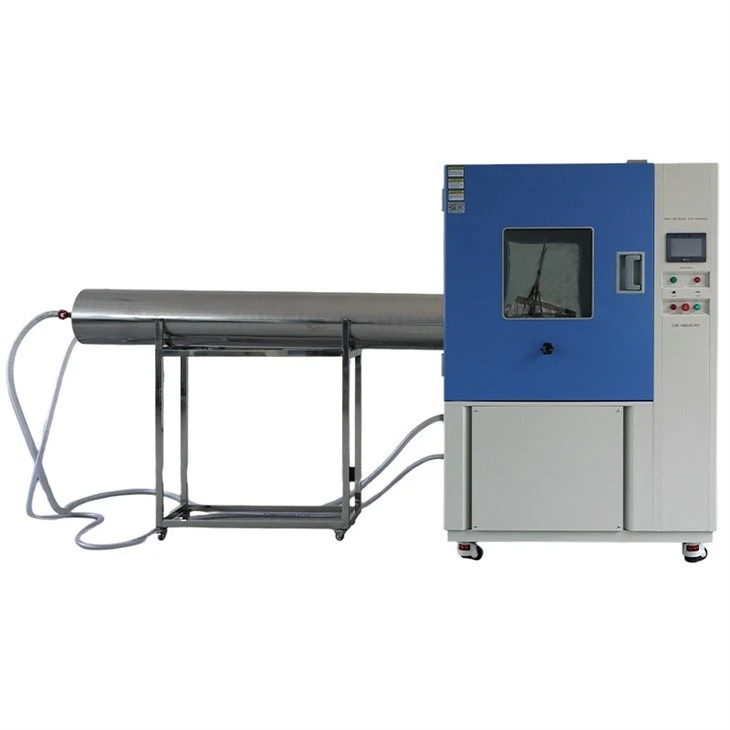

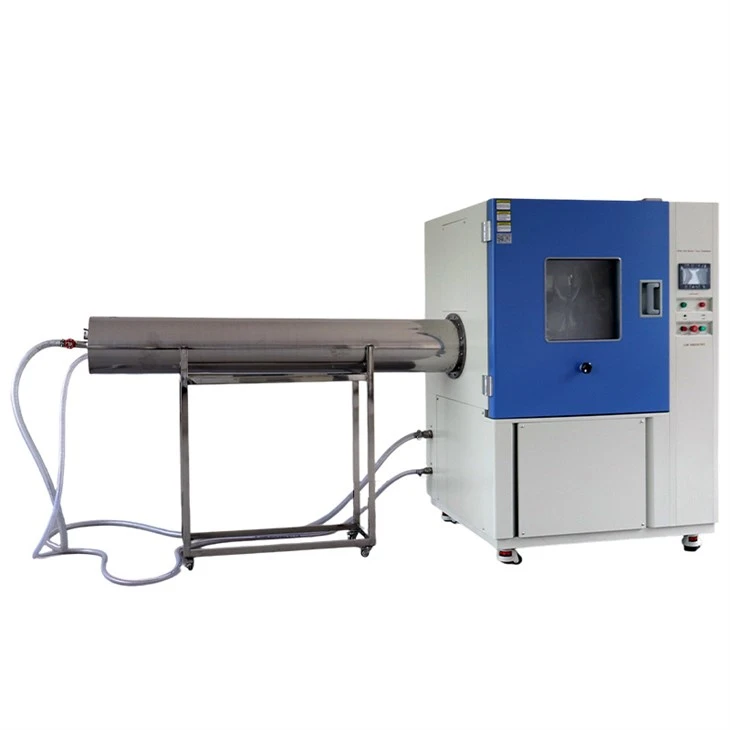

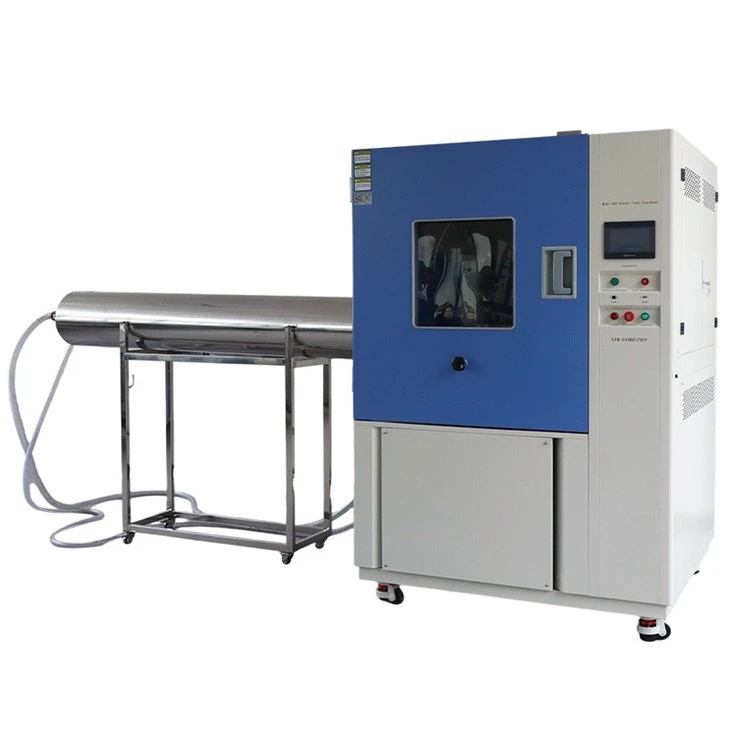

IP56 Waterproof Chamber
Dual system integrated design, support IPX5 and IPX6 free switching.
Equipped with two independent nozzle groups (6.3mm and 12.5mm) for fast switching.
Water intake protection tests according to IEC 60529, ISO 20653 and EN 60529.
Flow meter (± 0.1L /min accuracy) and variable frequency pump ensure stable output water and water pressure.
SUS304 stainless steel chamber and nozzle, corrosion resistant, long term use in wet/high pressure environments.
Overpressure protection, leakage alarm, emergency stop button, nozzle anti-clogging design.
parameter list
IP56 Waterproof Chamber
|
Model |
R56-800 |
|||
|
Internal Dimension (mm) |
800*800*800 D*W*H |
|||
|
Overall Dimension (mm) |
950*3150*1800 D*W*H |
|||
|
Interior Volume (L) |
510 |
|||
|
Diameter of Turntable (mm) |
600 |
|||
|
Turntable loads |
20kgs Max |
|||
|
Turntable Rotation Speed |
0~7r/min (Adjustable) |
|||
|
Internal Diameter of IPX5 Nozzle |
6.3mm |
|||
|
Internal Diameter of IPX6 Nozzle |
12.5mm |
|||
|
Water Flow Rate IPX5/ IPX6 |
12.5L/min ±5% / 100L/min ±5% |
|||
|
Build-in Water Tank(mm) |
370*375*950 |
|||
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
|||
| Standard | IEC 60529, ISO20653 | |||
Product details

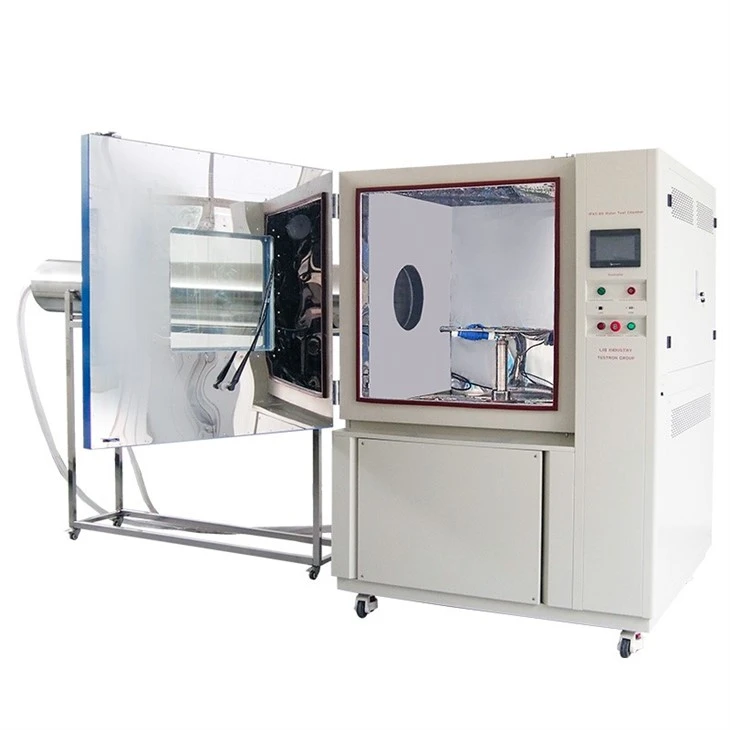

IP56 Waterproof Chamber

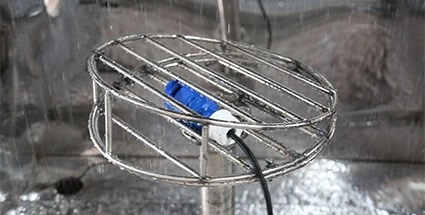

Turntable
Continuously adjustable speed (0-7r/min) for uniform water exposure during the test.Standard table size diameter 600mm, load capacity 20kg (for large products can be upgraded).

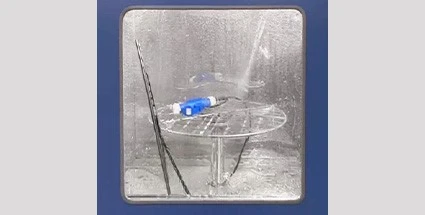

Transparent observation window
Double toughened glass with heating and fog removal function, built-in LED lighting for real-time observation of sample status.
Controller
Multi-language interface, remote monitoring,PC/LAN connection real-time parameter adjustment and firmware update. Automatically generate test reports and charts (pressure, flow, time).
Built-in Lighting
The chamber includes energy-efficient LED lighting that fully illuminates the workspace, enhancing visibility during testing.
LIB provides a turnkey solution. 24/7 technical support, remote troubleshooting and on-site installation. Contact LIB today for a tailored IP56 waterproof chamber.
