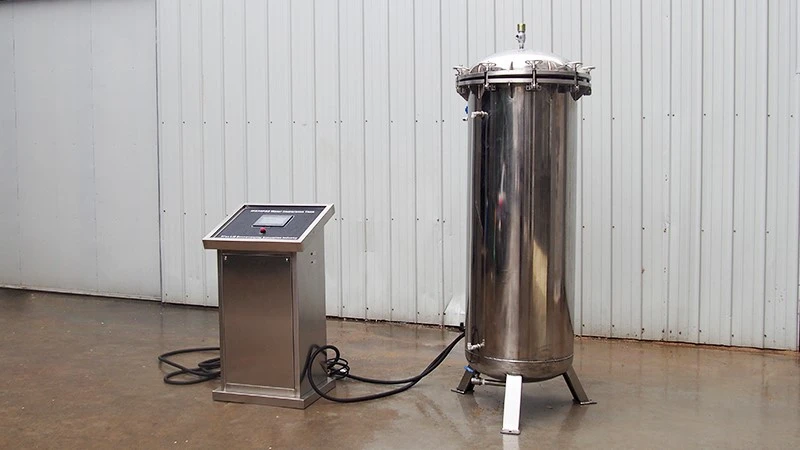

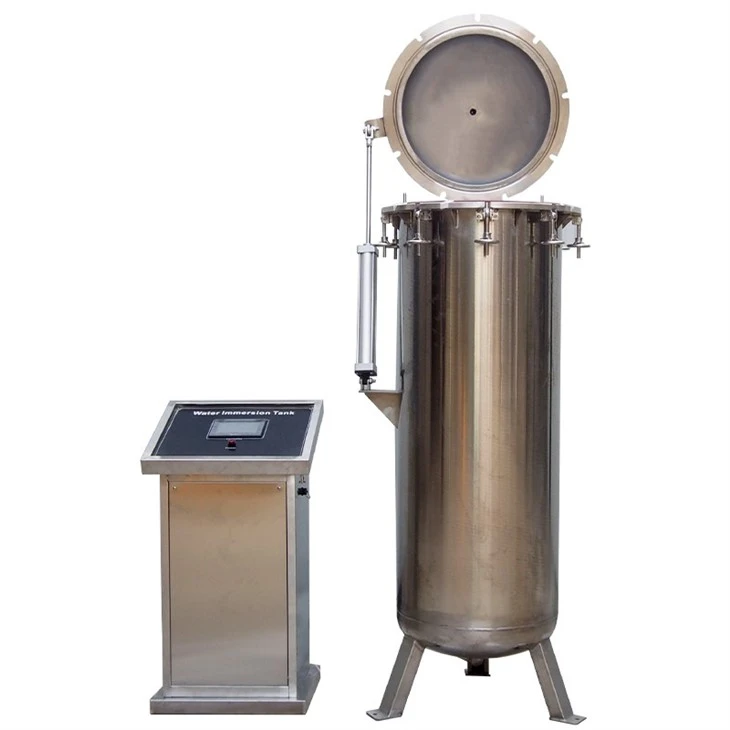

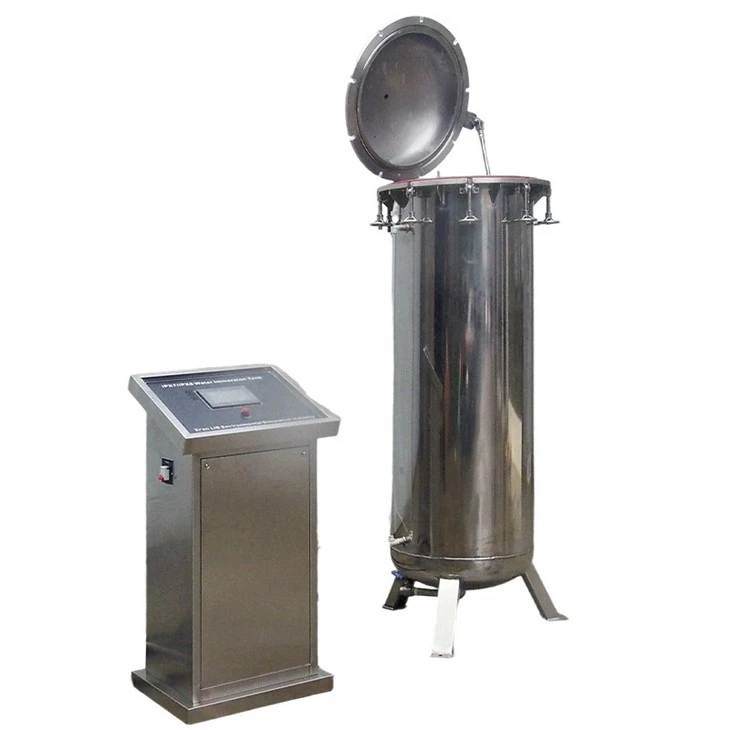

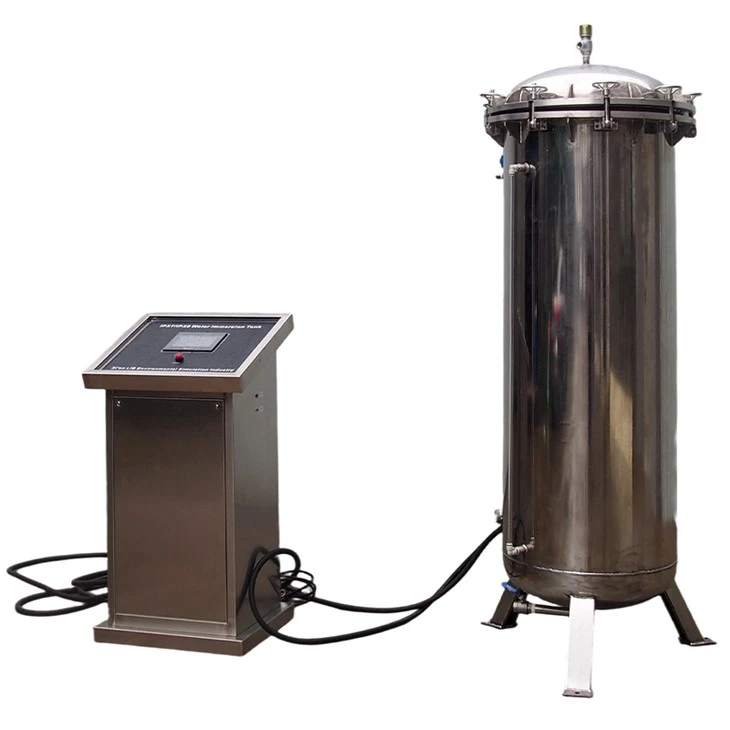

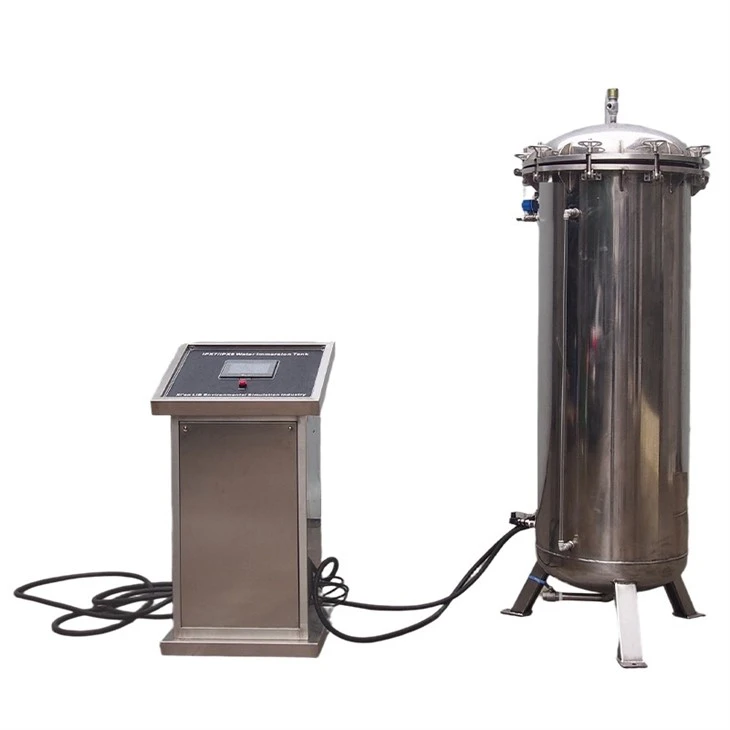

LIB water immersion test chamber strictly evaluates the waterproof performance of products under immersion conditions, simulates IPX7 (temporary immersion to 1m depth) and IPX8 (continuous immersion under specified pressure/depth) protection levels,IPX7 is suitable for products that are occasionally immersed in water in daily life, IPX8 is suitable for long-term or deep-water use equipment, the water immersion test chamber verifies its reliability under two kinds of flooding conditions.
Key features
Water Immersion Test Chamber
Module title
IPX7 (1m depth water pressure, 30min) and IPX8 (customizable depth/pressure, up to 50m water pressure, extended duration) immersion test.
Cylindrical symmetrical A3 stainless steel water tank, corrosion resistance, strong pressure capacity.
Adjustable water depth (0~50m), suitable for various depth testing requirements.
Set the time, water level, water temperature, support automatic operation.
Water level sensor + automatic pump to support rapid water injection and drainage.
Leakage protection, water shortage alarm, overtemperature protection, emergency stop switch and other safety design.
Optional negative or pressurized immersion systems are available to simulate high-pressure underwater environments.
parameter list
Water Immersion Test Chamber
|
Model |
R78-600 |
|||
|
Internal Dimension (mm) |
Diameter 600mm * Height 1500 mm |
|||
|
Overall Dimension (mm) |
Diameter 800mm * Height 1800 mm |
|||
|
Pressure |
50m water depth pressure |
|||
|
Open mode |
Pneumatic lid |
|||
|
Material |
A3 steel plate, wall thickness 15mm |
|||
|
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|||
| Water Supply System | Storage water tank, Automatic water supply | |||
Product details
Water Immersion Test Chamber

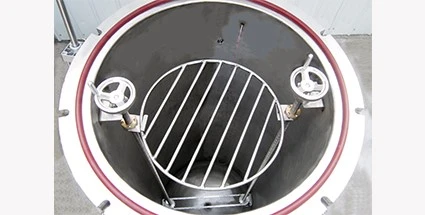

Adjustable Sample Rack
Equipped with stainless steel sample rack, support height and position adjustment, suitable for different volumes and shapes of the test object, bearing 50kg.

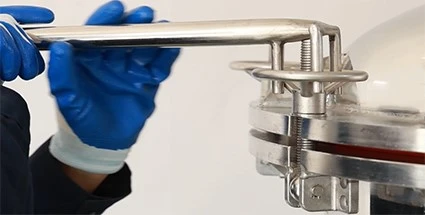

IPX7/X8 Pneumatic Bar
Integrated with an automatic locking mechanism, the bar prevents accidental opening when the chamber is under pressure, ensuring operator safety and maintaining environmental sealing.
Safety Interlock System
The design of 12 manual safety locks ensures that the cover cannot be opened by mistake during the test, and the test hole can be opened on the cover to power the test part.

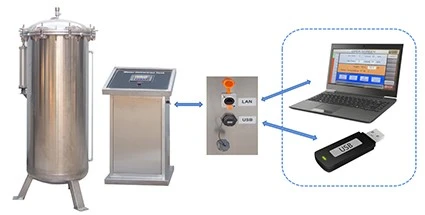

USB Interface and PC Link for IPX7/IPX8
The touch screen controller features language switching, USB data export, remote operation, and early warning functions. It automatically generates and stores test data for efficient management and analysis
LIB provides customized water immersion test chambers, 24/7 technical support, one-stop solutions. Contact LIB for detailed specifications.
