LIB IPX3 X4 test chamber simulate the dynamic rainfall, a variety of swing tube sizes can be selected, IPX3 IPX4 level test can be performed by changing the swing angle of the swing tube, accurate control of water flow, pressure and test cycle. LIB can also customize no-housing type IPX3 X4 test equipment. Built-in water circulation and water filtration system.
Key features
IPX3 X4 Test Chamber
The oscillating tube swings 0°-180° to meet the requirements of IPX3 (±60° inclined rain) and IPX4 (omnidirectional splashing)
0.4mm precision hole array (50mm pitch)
Variable frequency pump, flow stability control (IPX3:0.5L/min, IPX4:1L/min)
Comply with IEC 60529, ISO 20653 and other international standards
Workroom sizes can be customized and a variety of models are available
Stainless steel water tank + precision filtration system to achieve water recycling
Suitable for metal, plastic, rubber, electronic components and other materials testing
parameter list
IPX3 X4 Test Chamber
|
Model |
R-800C |
R-1200C |
||
|
Internal Dimension (mm) |
900*950*950 |
1300*1350*1370 |
||
|
Overall Dimension (mm) |
1180*1420*1920 (excluding stainless steel tube) |
1540*1820*2200 (excluding stainless steel tube) |
||
|
Interior Volume |
810 |
2400 |
||
Oscillating Tube Radius |
400mm |
600mm |
||
Spraying Hole Diameter |
φ0.4mm |
|||
Hole Spacing |
50 mm |
|||
Oscillating angle of Oscillating Tube |
0 ~ ±180° (Adjustable) |
|||
Jet nozzles |
IPX5: Dia6.3mm, IPX6: Dia12.5mm |
|||
Jet distance |
2.5~3meter |
|||
Turntable Rotation Speed |
1r/min (Adjustable speed) |
|||
Controller |
Programmable color LCD touch screen controller, Ethernet connection, USB port |
|||
| Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |||
|
Safety Device |
Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
|||
Product details
IPX3 X4 Test Chamber

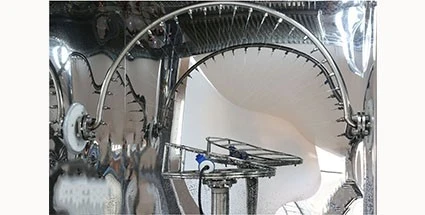

Oscillating Tube
Simulates IPX3 and IPX4 rainfall exposure using a semi-circular tube with evenly spaced (50 mm) stainless steel nozzles (φ0.4 mm), ensuring precise and uniform water distribution for accurate test results.

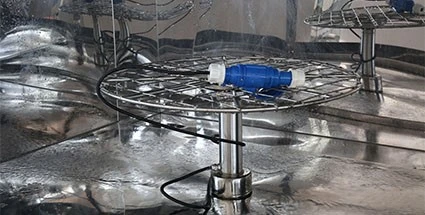

Turntable
The speed can be controlled and the rotation stabilized to ensure uniform water distribution on all sides of the sample, which is critical for uniform exposure.
Intelligent Control System
color touch screen, support for multi-language switching
Multiple groups of test programs can be preset, real-time display of angle, flow, time and other parameters
USB data export + remote monitoring, supporting fault diagnosis.

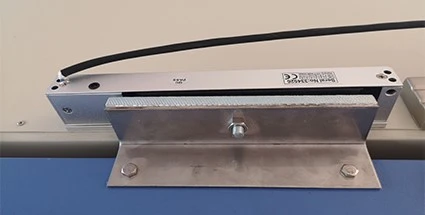

Electromagnetic Lock
To prevent accidental opening by personnel and ensure the safety and sealing of the test. Electromagnetic lock is linked with the control system. It is locked at the beginning of the test and automatically unlock after the test is completed.
If you are interested in this IPX3 X4 test chamber, please leave your requirements and the LIB team will provide you with professional solutions and quotes. LIB provides full waterproof rating test equipment.
