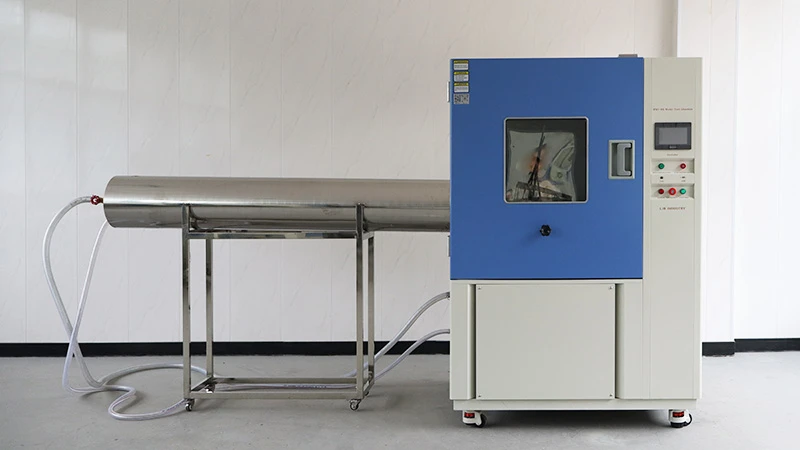

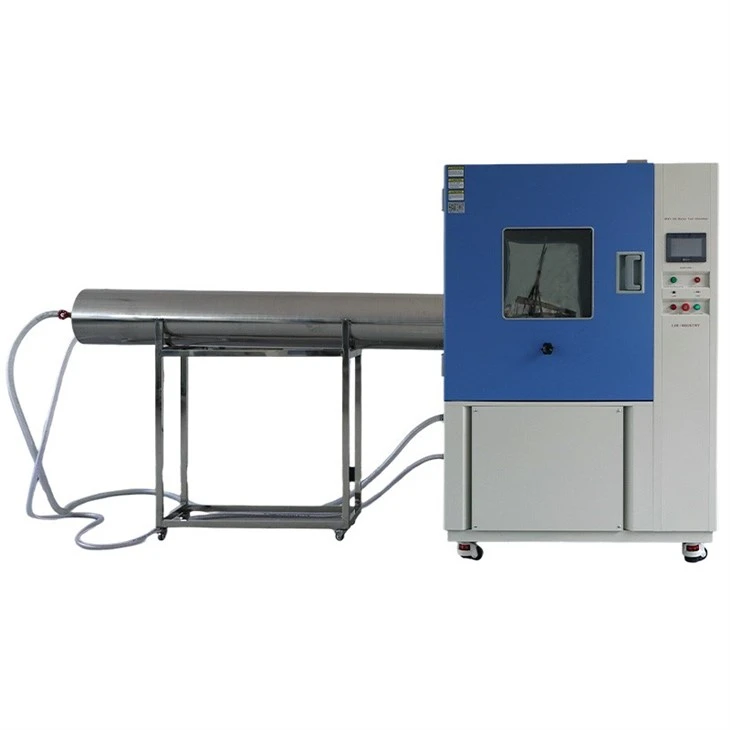

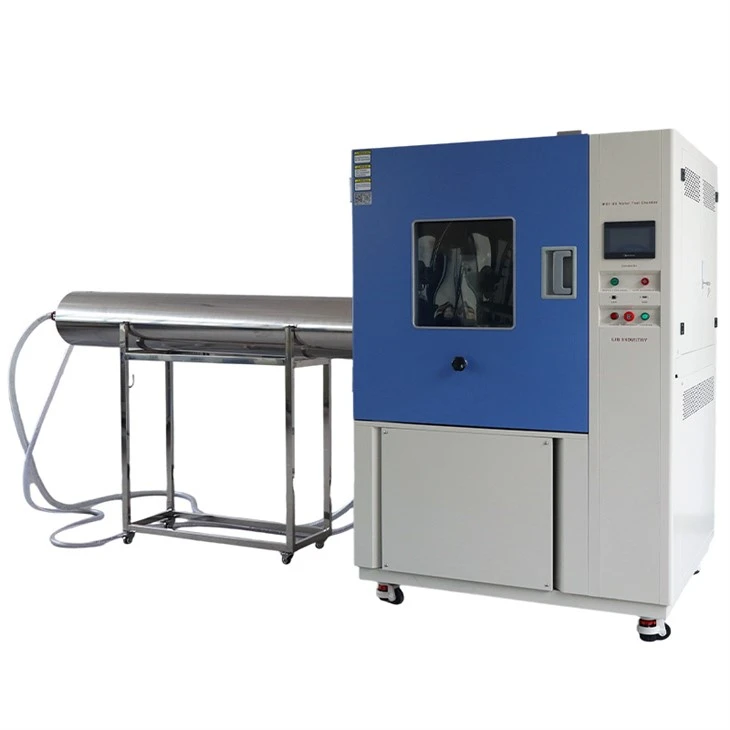

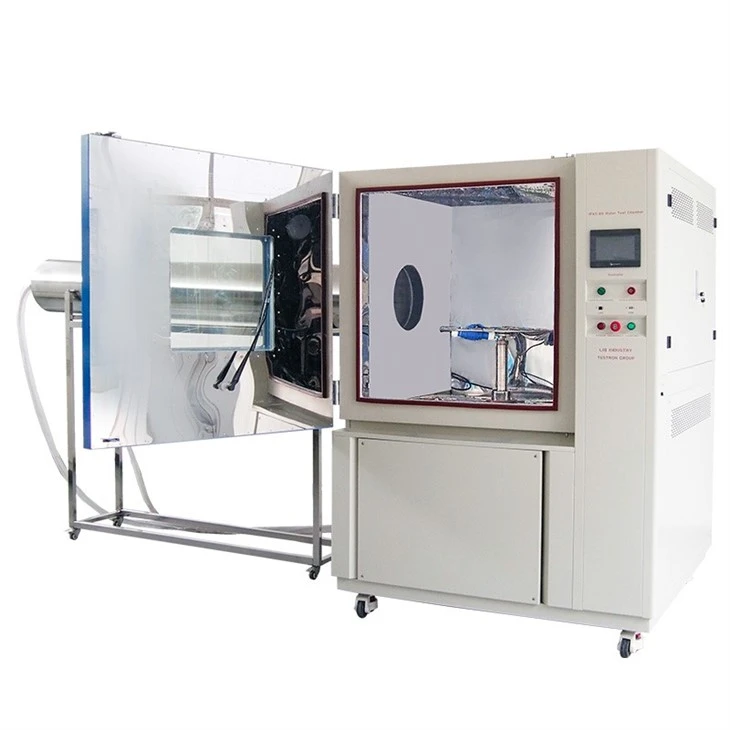

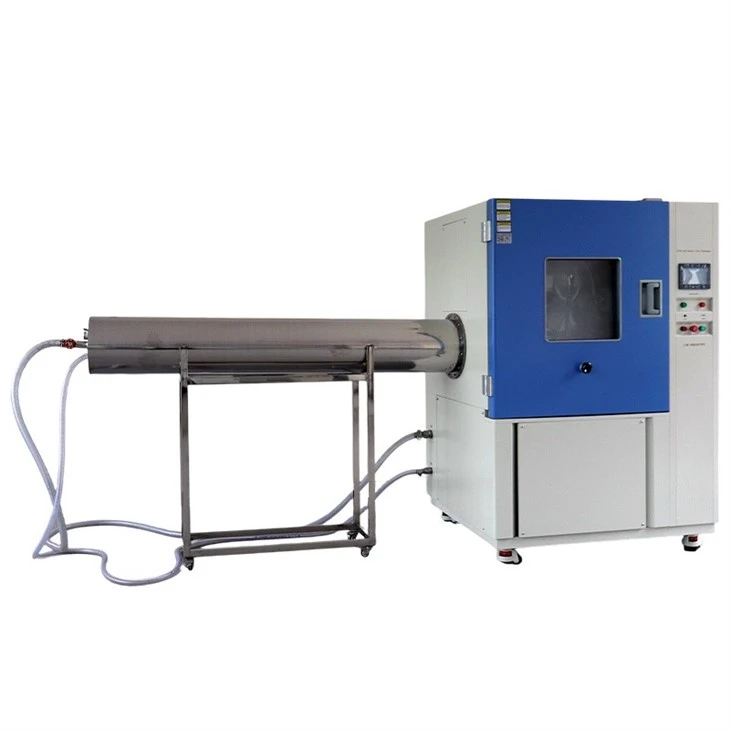

LIB IPX5 IPX6 water jetting test chamber can accurately simulate rainstorm impact and verify the waterproof reliability of products, such as electronic equipment, auto parts and outdoor lamps and other fields. In strict compliance with IEC 60529 and ISO 20653 standards, the IPX5 IPX6 water jetting test chamber provides efficient waterproofing grade verification solutions through intelligent sprinkler system and precise parameter control.
Key features
IPX5 IPX6 Water Jetting Test Chamber
IPX5 IPX6 standard nozzle with high precision flow meter.
An adjustable bracket to ensure test distance (2.5-3m) and angle.
Compatible with IPX5 (12.5L/min) and IPX6 (100L/min) test standards.
Automatically adjusts water pressure, flow rate and test time parameters.
Fully enclosed workroom prevents high pressure water splash.
Water circulation filtration system (accuracy 0.03mm), saving water.
Movable casters + horizontal adjustable feet to adapt to different sites.
Non-standard customization, workroom expansion, special nozzle configuration, etc.
parameter list
IPX5 IPX6 Water Jetting Test Chamber
|
Model |
R56-800 |
|||
|
Internal Dimension (mm) |
800*800*800 D*W*H |
|||
|
Overall Dimension (mm) |
950*3150*1800 D*W*H |
|||
|
Interior Volume (L) |
510 |
|||
|
Diameter of Turntable (mm) |
600 |
|||
|
Turntable loads |
20kgs Max |
|||
|
Turntable Rotation Speed |
0~7r/min (Adjustable) |
|||
|
Internal Diameter of IPX5 Nozzle |
6.3mm |
|||
|
Internal Diameter of IPX6 Nozzle |
12.5mm |
|||
|
Water Flow Rate IPX5/ IPX6 |
12.5L/min ±5% / 100L/min ±5% |
|||
|
Build-in Water Tank(mm) |
370*375*950 |
|||
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
|||
| Standard | IEC 60529, ISO20653 | |||
Product details
IPX5 IPX6 Water Jetting Test Chamber
IPX5/X6 Spray Nozzle
Designed for durability under intense water force, simulating conditions such as heavy rain. Built to withstand harsh conditions, reducing maintenance frequency and saving operational and replacement costs for customers.
Removable nozzle assembly for easy daily cleaning and maintenance,working independently(IPX5 X6), not influencing each other.

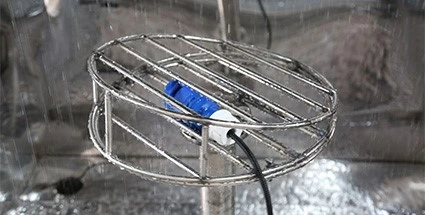

Turntable
Adjustable in height from 350 to 500 mm, the turntable is designed to support a wide range of sample sizes and geometries

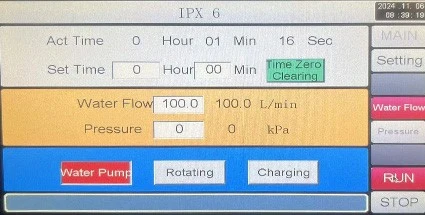

Controller
Multilingual touch screen to set depth, time, pressure and real-time monitoring. Programmable mode supports custom cycles (for example, alternating depth or duration). Store test logs, generate reports, and allow USB/ Ethernet data export traceability.

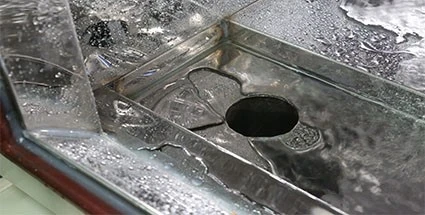

Drain Hole
Supports both manual drainage and automatic pump-assisted drainage.This gives users the convenience to adapt the system to their lab setup, reducing labor and plumbing constraints.
LIB IPX5 IPX6 water jetting test chamber is suitable for automotive lamps, outdoor electronic equipment, industrial instruments and other fields to verify its waterproof performance in heavy rain, high pressure washing and other scenarios.
Through CE and RoHS certification, LIB provides full-cycle services to ensure worry-free use.
