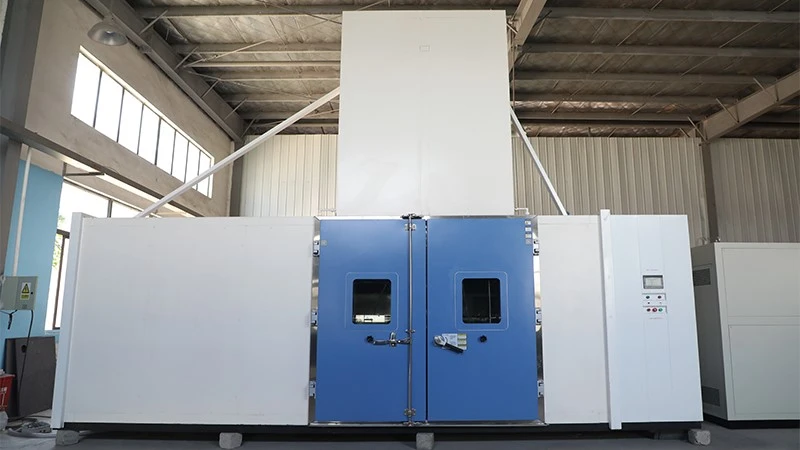

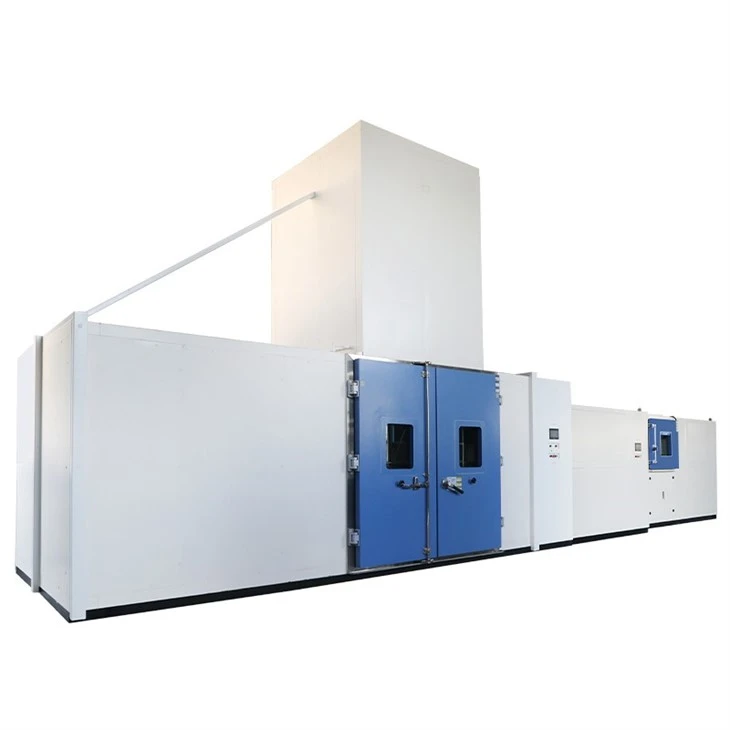

The LIB MIL-STD-810H rain chamber strictly follows the MIL-STD-810H Method 506.6 Rain test standard and can perform procedure 1: rain and blowing, procedure 2: intensification test, procedure 3: dripping test Designed for military equipment, aerospace devices, outdoor electronics and industrial equipment to simulate vertical and inclined rainfall environments.
Key features
IP6K9K Test Chamber
MIL-STD-810H vertical rainfall and 15° inclined rainfall test mode.
Tilt angle adjustment range: 0°~15° adjustable.
MIL-STD-810H, IEC 60529, ISO 20653 and other international/military standards.
Efficient water circulation system, built-in large capacity water tank, automatic water refill function.
Automatic water circulation filter device to extend equipment life.
SUS304 stainless steel, corrosion resistant, rust resistant, suitable for high humidity environment.
CE, RoHS certification and ISO 9001 quality management system.
parameter list
MIL-STD-810H Rain Chamber
|
Model |
R6K9K-1200 |
|||
|
Internal Dimension (mm) |
1000*1200*1000 D*W*H |
|||
|
Overall Dimension (mm) |
1150*3550*2100 D*W*H |
|||
|
Interior Volume |
1200 |
|||
|
The Load of Turntable |
50kg |
|||
|
The Diameter of Turntable |
800mm |
|||
|
Rain and Blowing Rain |
Final rain droplet velocity |
9m/s on test item |
||
Rainfall rate |
≥ 1.7 mm/min |
|||
Droplet size |
0.5mm ~ 4.5mm |
|||
Test specimen heating range |
Water temperature +10°C (max +55°C) |
|||
| Test time | 0 ~ 999min. adjustable | |||
|
Exaggerated |
Nozzle pressure |
276kpa |
||
Rainfall rate |
20.8L/min |
|||
Nozzle amount |
One nozzle for each 0.56m2 of surface area and position each about 48cm from in the test surface |
|||
Droplet size |
0.5mm ~ 4.5mmD |
|||
| Test time | 0 ~ 999min. adjustable | |||
|
drip |
Drip area dimensions |
9m/s on test item |
||
Drip holes |
≥ 1.7 mm/min |
|||
Distance between hole |
0.5mm ~ 4.5mm |
|||
Volume of water |
Water temperature +10°C (max +55°C) |
|||
| Test specimen heating range | 0 ~ 999min. adjustable | |||
Door Lock |
Electromagnetic lock |
|||
Interior Material |
SUS304 stainless steel |
|||
| Standard | MIL-STD- 810H | |||
Product details

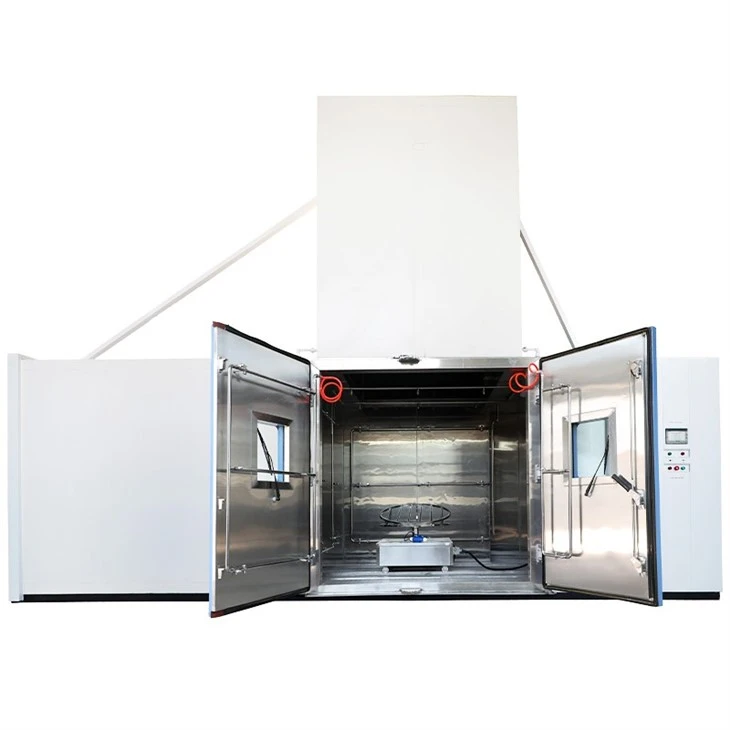

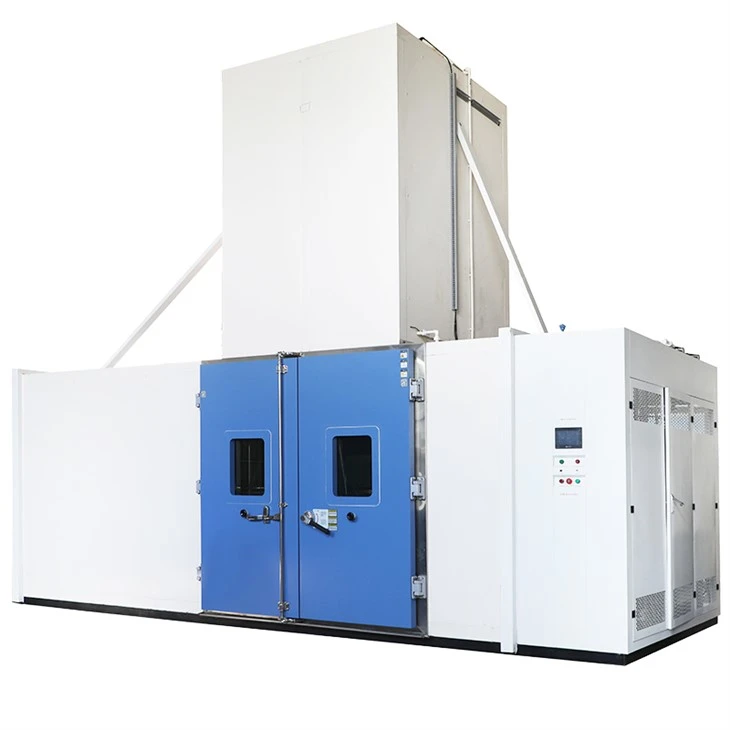

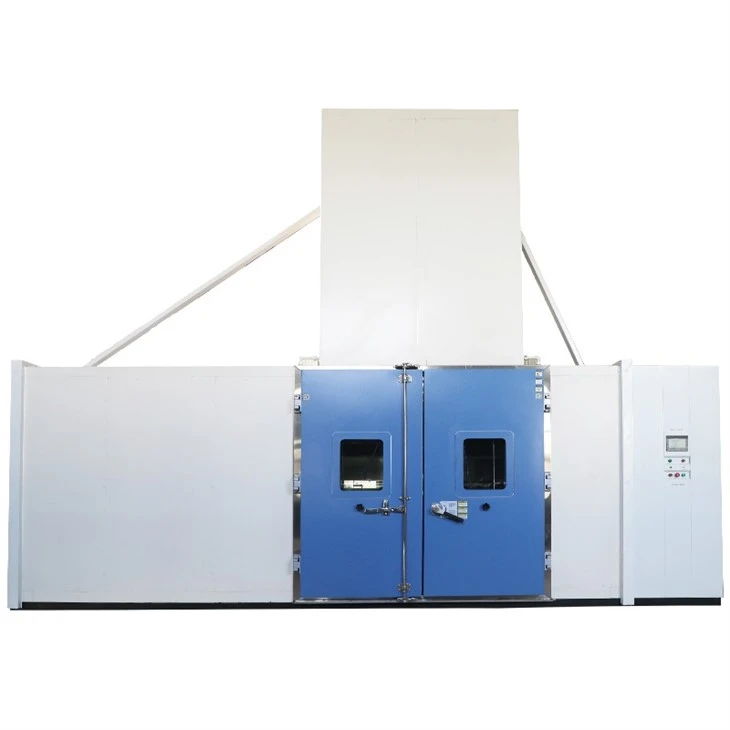

MIL-STD-810H Rain Chamber

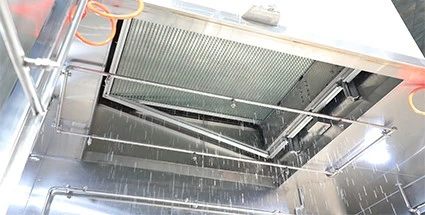

Drip System
The stainless steel nozzle array conforms to the matrix layout of the MIL standard, and the stainless steel nozzle (aperture Φ0.4mm, hole spacing 20mm) ensures uniform rainfall coverage, and with the water filtration system, long-term use without plugging.

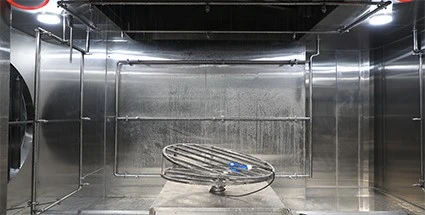

Turntable
50kg (uniform load), tilt angle, rotation speed can be adjusted, stable speed. Equipped with waterproof power supply, it can restore the real use scenario of the product for the test piece.

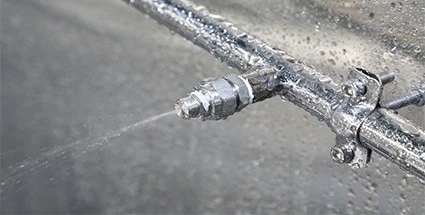

Nozzle Array
316L stainless steel nozzles (12) are arranged to form an even distribution of rainwater, with nozzle diameter of 0.5mm and spacing of 100mm to maintain consistent droplet size.

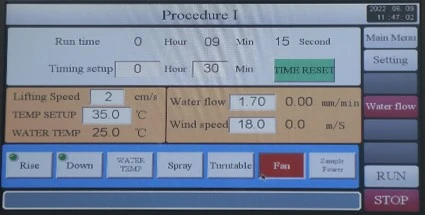

Controller and Data Export
Support test curve drawing (rainfall - time map), real-time display of rainfall, Angle, time and other parameters, historical data storage, USB export CSV/Excel format report, remote monitoring. Compatible with customized test flow.
The LIB MIL-STD-810H rain chamber complies with MIL-STD-810H rainfall test standards, and can also be upgraded for workroom, turntable, function, and more. LIB provides a one-stop solution: model selection, installation and commissioning, calibration and maintenance.
For MIL-STD-810H rain chamber custom solutions and detailed technical manuals, contact the LIB team.
