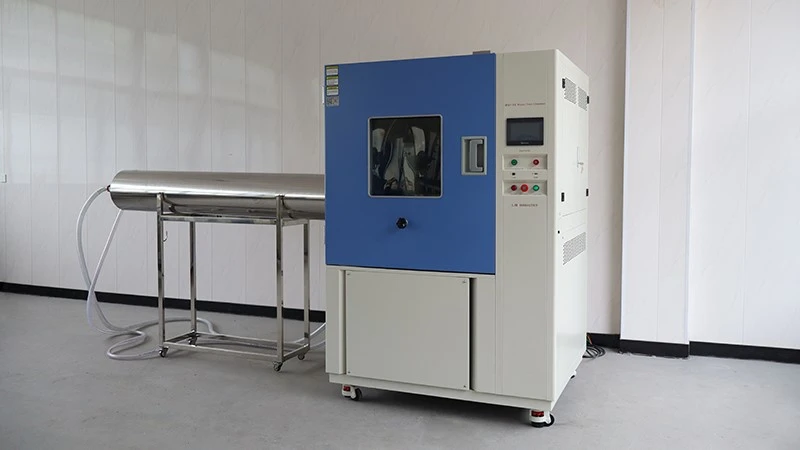

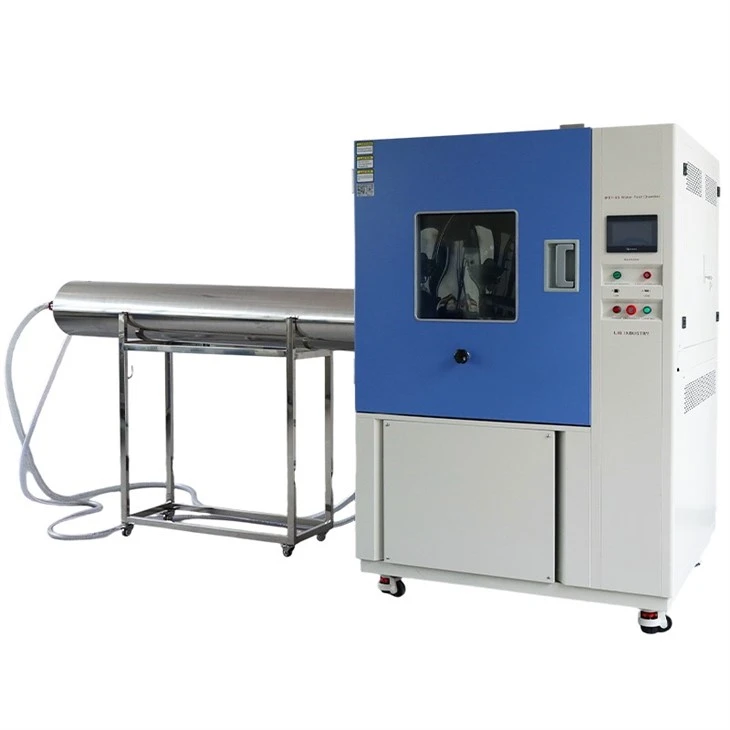

The IP65 waterproof test chamber is a testing equipment used to evaluate the waterproof performance of products under strong water spray conditions. This equipment is in accordance with IEC 60529 and supports IPX5 and IPX6 grade tests. The test chamber is equipped with high-precision nozzles and a water pressure adjustment system, respectively simulating low-pressure and high-pressure water columns to spray the samples from all directions to verify the resistance of its shell to water.
Key features
IP65 Waterproof Test Chamber
According to the IEC 60529 standard, it meets the test requirements of IPX5 and IPX6 grades.
Dual testing integration, with two water spray resistance levels of IPX5 (12.5 L/min) and IPX6 (100 L/min).
SUS 304 nozzles: φ 6.3mm (IPX5) and φ 12.5mm (IPX6) nozzles, with precise and controllable water flow.
PLC control system allows for parameter setting, and the test process is automatically executed and recorded.
The booster pump and pressure stabilizing valve ensure stable water pressure output, meeting the requirements of high-pressure jet.
SUS 304 workroom is corrosion-resistant and rust-proof.
Flexible testing space, suitable for samples of various sizes.
parameter list
IP65 Waterproof Test Chamber
|
Model |
R56-800 |
|||
|
Internal Dimension (mm) |
800*800*800 D*W*H |
|||
|
Overall Dimension (mm) |
950*3150*1800 D*W*H |
|||
|
Interior Volume (L) |
510 |
|||
|
Diameter of Turntable (mm) |
600 |
|||
|
Turntable loads |
20kgs Max |
|||
|
Turntable Rotation Speed |
0~7r/min (Adjustable) |
|||
|
Internal Diameter of IPX5 Nozzle |
6.3mm |
|||
|
Internal Diameter of IPX6 Nozzle |
12.5mm |
|||
|
Water Flow Rate IPX5/ IPX6 |
12.5L/min ±5% / 100L/min ±5% |
|||
|
Build-in Water Tank(mm) |
370*375*950 |
|||
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
|||
| Standard | IEC 60529, ISO20653 | |||
Product details
IP65 Waterproof Test Chamber

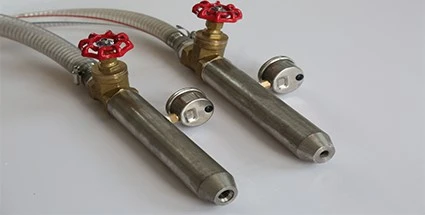

IPX5/X6 Spray Nozzle
IPX6K nozzle: high-speed injection design, uniform coverage Water pressure: 1000kpa (adjustable) Flow rate: 75±5% L/min Nozzle diameter: 6.3 mm Test distance: 2.5-3.0 m.

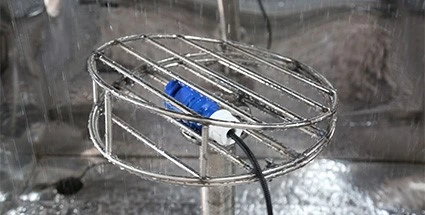

Turntable
600mm diameter turntable bearing 20kg, speed 0-7r/min adjustable, support 360° uniform test.Equipped with waterproof power supply to power the test piece.The fixture prevents specimen from being washed away.

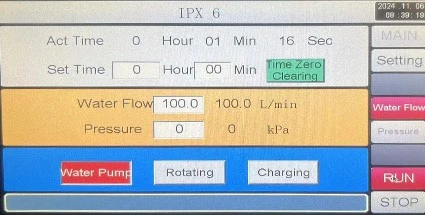

Controller
Color touch screen controller, support multi-segment program editing, can freely set the test time (0~99h59min), water spray cycle and parameter combination, support remote monitoring and data export, meet diverse test needs.
Water and electricity separation
Water separation effectively isolates the risk of contact between water and live parts, improving safety and equipment durability,which is also easy to maintain and repair.
By choosing the LIB IP65 waterproof test chamber, you will obtain: a test plan in line with international standards, a test process, and an integrated IPX5/IPX6 grade verification. A perfect after-sales service system ensures your worry-free use. Contact LIB immediately to get a free test plan and quotation!
