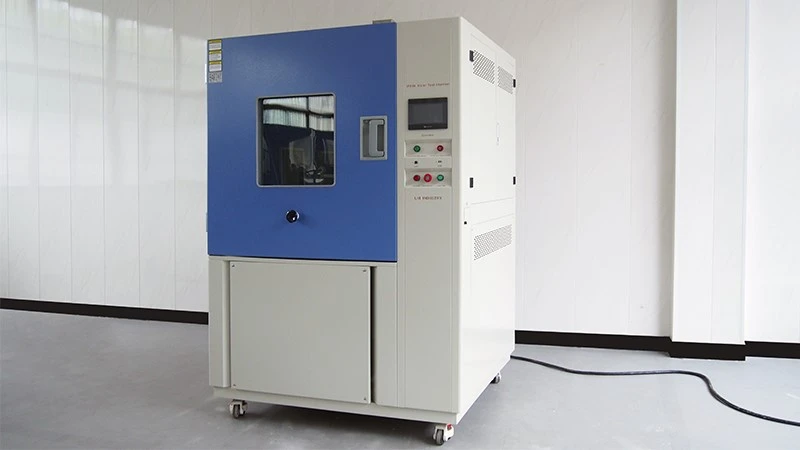

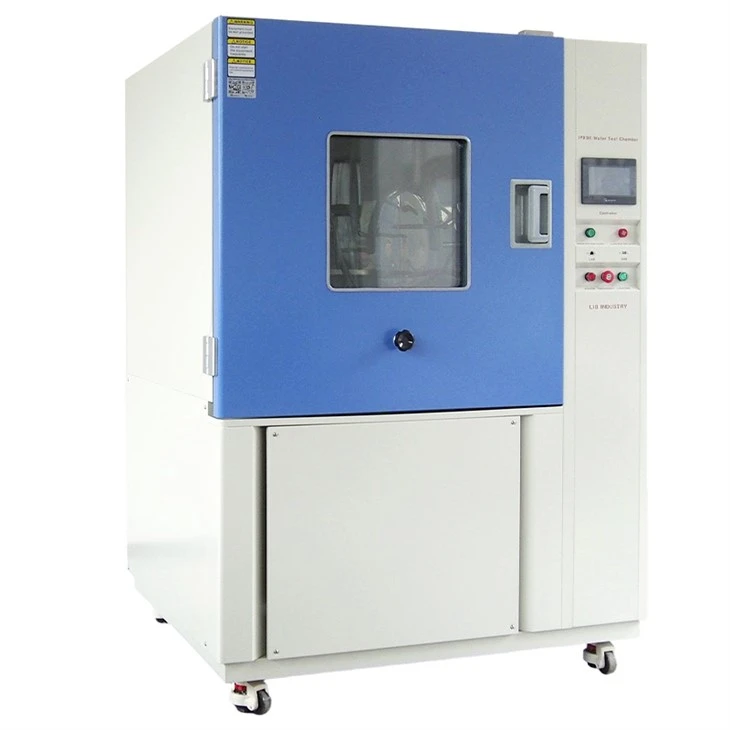

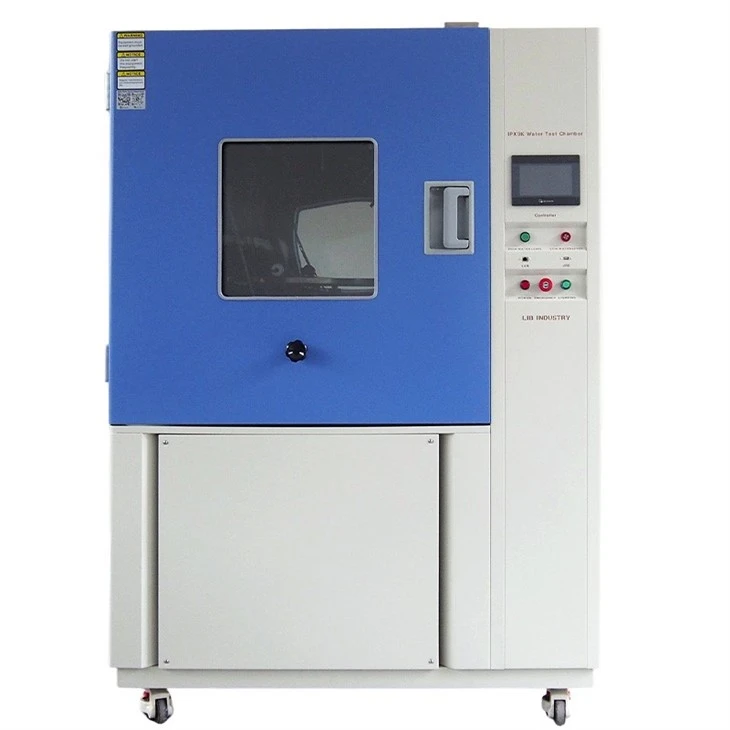

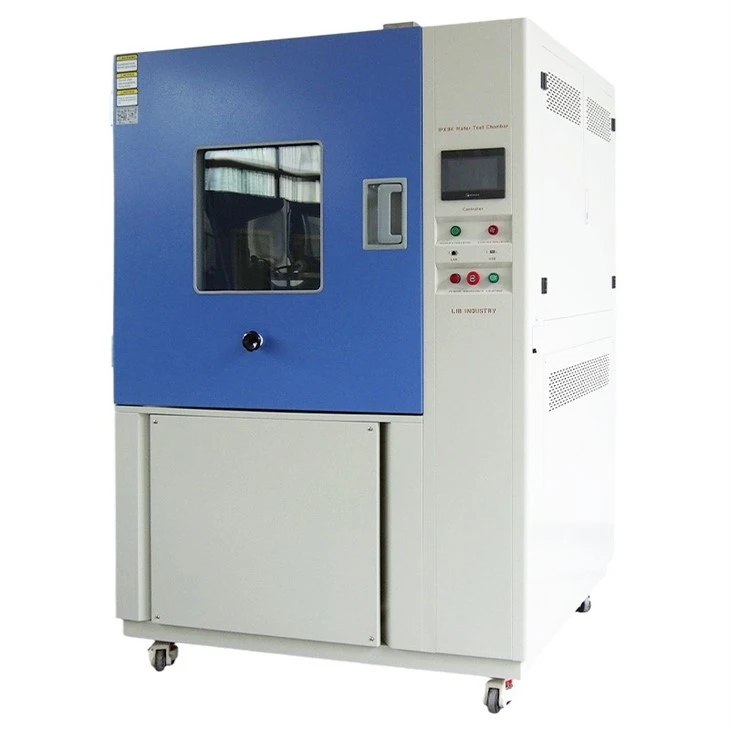

The LIB IPX9K water spray test chamber according to IEC60529 standard, a closed high-pressure water test area is created.High temperature (80°C) and high pressure (10 MPa) environments can verify the waterproof performance of the product in steam cleaning, rainstorm and other scenarios.IPX9K water spray test chamber is commonly used to test the waterproof performance, sealing and protection ability of products.
Key features
IPX9K Water Spray Test Chamber
High temperature water pump to ensure stable output of 8~10MPa high temperature and high pressure water flow.
0°, 30°, 60°, 90° angle nozzle automatic switching, nozzle diameter 12.5mm, spray distance adjustable.

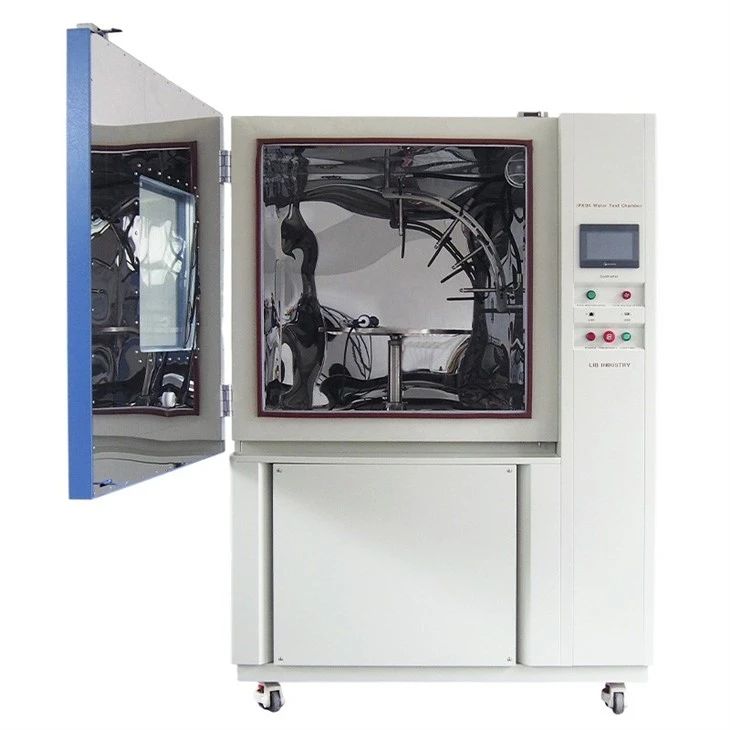

Double tempered glass with wiper, real-time observation of test status.
Leakage protection, overload protection, high temperature warning light, emergency stop button.
Turntable speed 5±1r/min,height 200-400 nm (Adjustable),support power test.
Workroom size 600L/1200L/1900L accommodates different sizes of test pieces,larger space can be customized.
The turbine flowmeter is monitored in real time to ensure water flow at 14~16L/min.
parameter list
IPX9K Water Spray Test Chamber
|
Model |
R9K-1200 |
|||
|
Internal Dimension (mm) |
1000*1200*1000 D*W*H |
|||
|
Overall Dimension (mm) |
1150*3550*2100 D*W*H |
|||
|
Interior Volume |
1200 |
|||
Testing Platform Diameters |
600mm |
|||
Testing Platform Speed |
5±1 r.p.m |
|||
Turntable loads |
50kgs |
|||
| Testing Platform Height | 200-400 mm (adjustable) | |||
Water Spray Angle |
0°, 30°, 60°, 90° |
|||
Water Spray Temperature |
Ambient ~ +88℃ (Adjustable) |
|||
Spray Nozzle |
Four, 30 Seconds each position |
|||
Distance from Water Spraying to Specimens |
10~15cm |
|||
Water Pressure |
8000-10000 Kpa (Adjustable) |
|||
Water Flow Rate |
14L-16L/min |
|||
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV A-class |
|||
| Heater Elements | Nichrome heater | |||
|
Controller |
Programmable color LCD touch screen controller, Ethernet connection |
|||
|
Door Lock |
Electromagnetic lock |
|||
Product details
IPX9K Water Spray Test Chamber

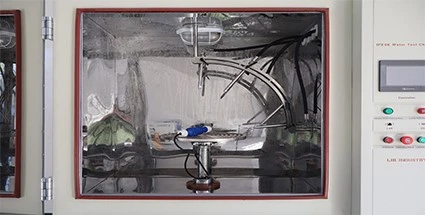

IPX9K Spray
The spray system uses four precisely positioned nozzles to deliver water up to 88 °C with a flow rate of 14–16 L/min. Samples are sprayed for 30 seconds at 0°, 30°, 60°, and 90°, simulating high-pressure cleaning to verify durability under real-world conditions.

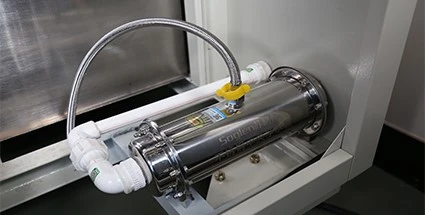

Filtration System
The filter filters impurities within 0.03mm particles, which ensures a smooth injection system. Reduce scale generation and extend equipment life.
Water Circulation System
Features automatic water level detection and refill, combined with a recycling filtration system to reduce water waste.
Water and Electricity Separation
IPX9K test involves the injection of high temperature, high pressure water flow, physical isolation of the electrical system and the waterway system to ensure the safety of the test process. Independent control cabinet, waterproof sealed electrical interface design.
For detailed configuration, quotation and technical solution of IPX9K water spray test chamber, please contact LIB. The device can be equipped with IPX1-IPX8 full series test modules to provide one-stop waterproof solution. 3 years warranty, lifetime service, so that your test no worries.
