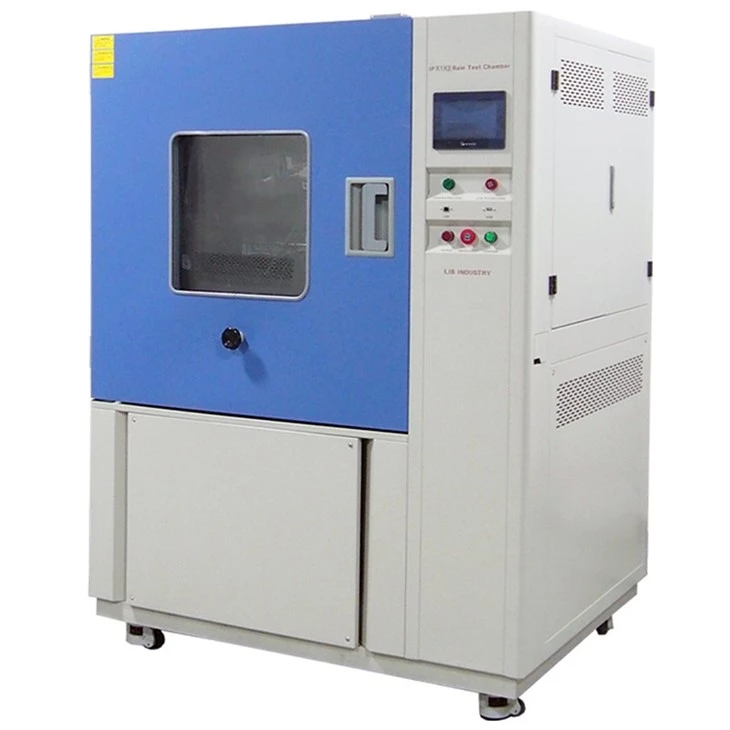

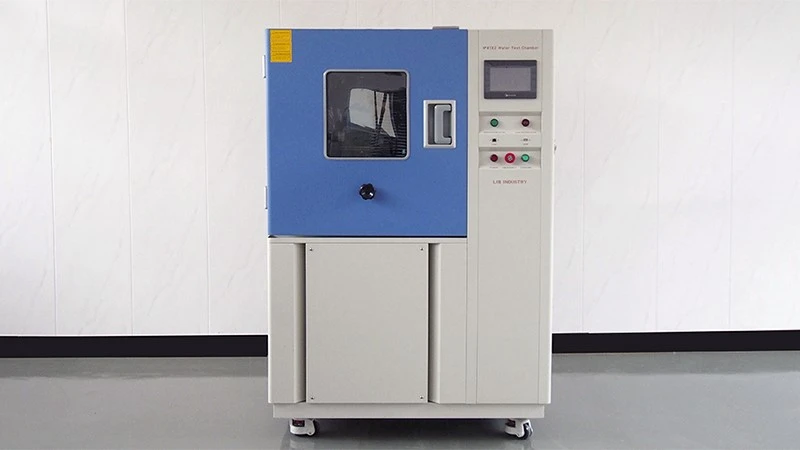

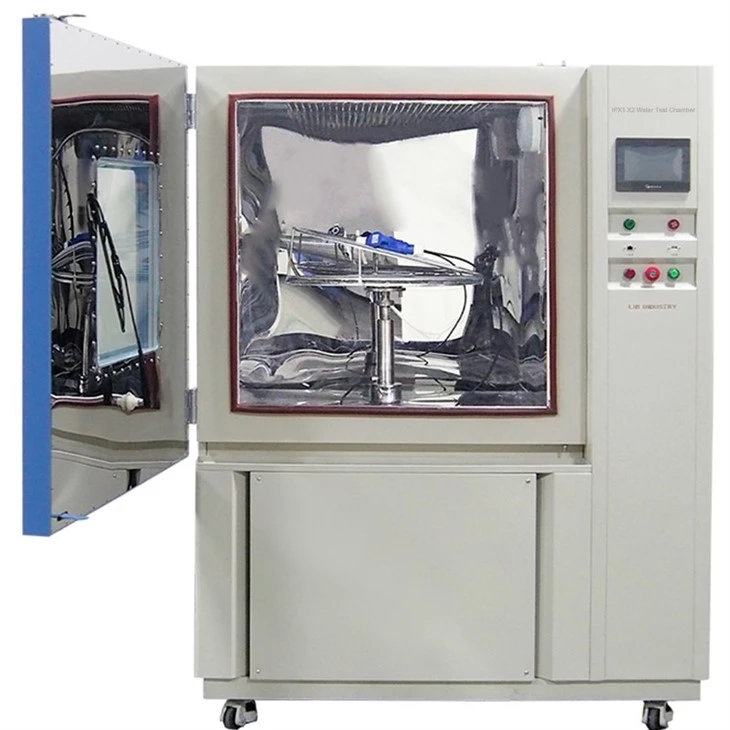

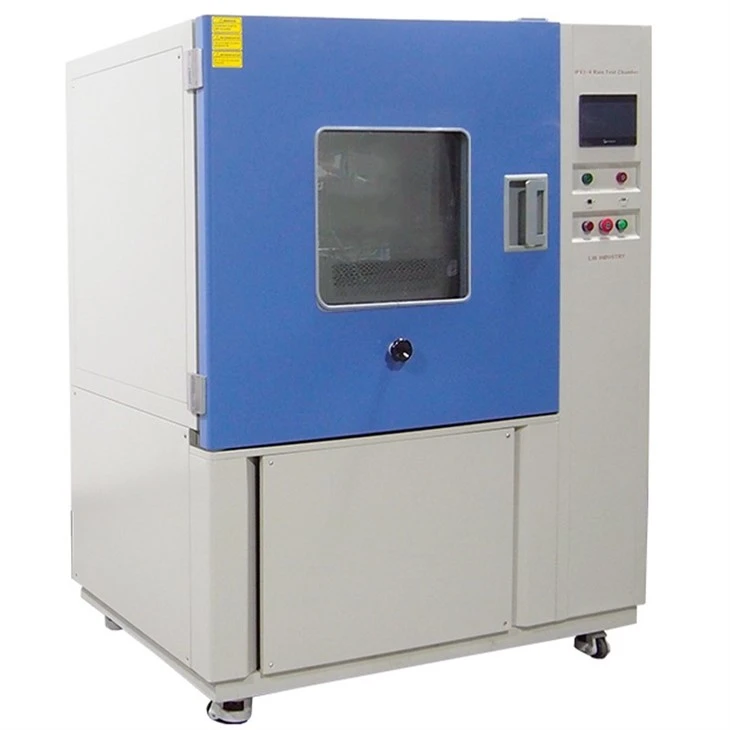

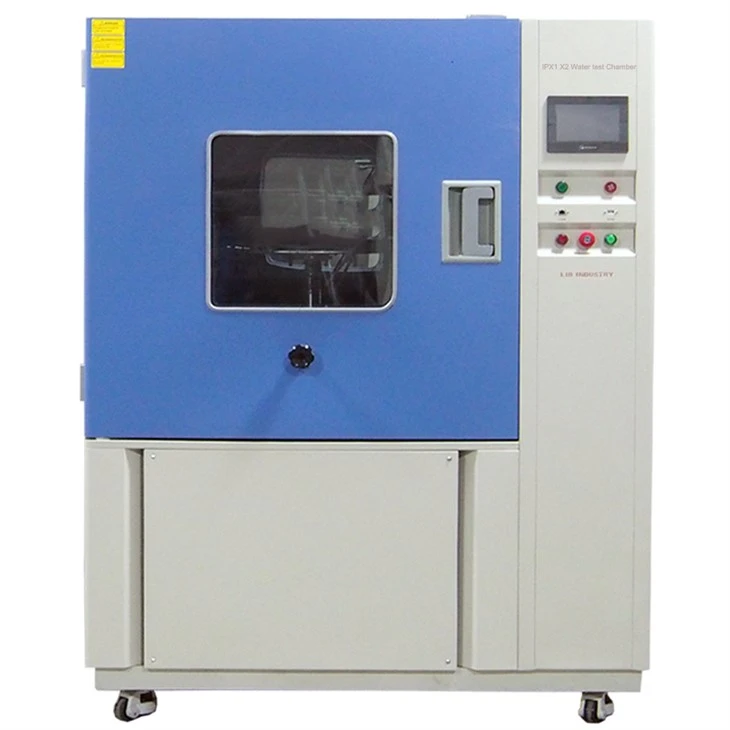

IPX1 X2 Water Spray Test Chamber

LIB IPX1 X2 water spray test chamber simulates IPX1 (vertical drip) and IPX2 (15° inclined drip) waterproof rating test to detect the waterproof performance of electronic equipment, electrical components, outdoor lamps, household appliances and other products to ensure the reliability and safety of products in wet or dripping environments.

LIB IPX1/IPX2 water spray test chamber through the standardization of drip system, angle adjustment device and intelligent control system, strictly follow IEC 60529 and other international standards, to provide a scientific basis for product waterproof certification.

Key features

IPX1 X2 Water Spray Test Chamber



 IPX1 (vertical drip) and IPX2 (15° tilt drip) test modes are supported.
 Through CE, RoHS certification,ISO 9001 quality management system.
 SUS304 material, corrosion resistance, rust resistance, suitable for humid environment.
 Drop tray height (200-2000mm), tilt angle (0°/15° adjustable),rainfall (IPX1:1 ±0.5mm/min; IPX2:3 ±0.5mm/min) can be adjusted.
 Adopt water circulation system, built-in large capacity water storage tank.
 Automatic water intake system, high and low water level light warning.
 Strictly follow IEC 60529, ISO 20653 and other international standards.



parameter list



IPX1 X2 Water Spray Test Chamber

Model	RD-800C			RD-1200C
Internal Dimension (mm)	900*950*950			1300*1350*1370
Overall Dimension (mm)	1180*1420*1920 (excluding stainless steel tube)			1540*1820*2200 (excluding stainless steel tube)
Interior Volume	810			2400
Drip Tray Size	600*600			1000*1000
Spraying Hole Diameter	φ0.4mm
Turntable Rotation Speed	1r/min (Adjustable speed)
Water Pressure Control	Flow meter
Controller	Programmable color LCD touch screen controller, Ethernet connection
Water supply system	Water tank, booster pump, Automatic water supply, Water purification system
Safety Device	Over-temperature Protection; Over-current Protection;Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection
Interior Material	SUS304 stainless steel
Observation Window	Double layer insulating glass with wiper



Product details



IPX1 X2 Water Spray Test Chamber

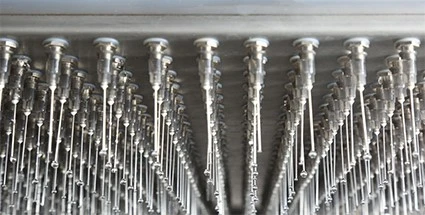

Drip system

SUS304 stainless steel nozzle, in line with the standard drip aperture (Φ0.4mm), 20mm hole spacing. The flow meter displays the drip rate in real time, ensuring that the water flow of IPX1 (10mm/min) and IPX2 (same flow tilt drip) meets the standard.

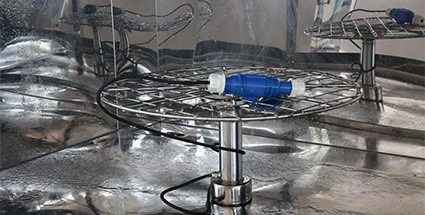

Turntable

The sample table supports 0-15° tilt and 1r/min speed adjustment, adopts to IPX2 four-direction tilt test requirements, and is compatible with samples of various specifications.

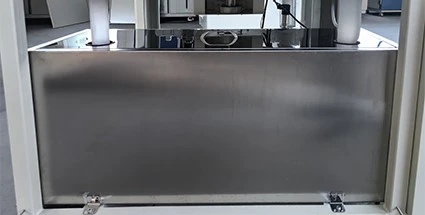

Built-in Large Water Tank

Internal water reservoir supports continuous testing without the need for frequent refilling, enhancing laboratory efficiency.

Control system

Multi-language touch screen, supporting real-time parameter display and connected remotely, curve drawing and abnormal alarm, and the test data can be stored and downloaded.

Test program can be preset, including angle, time, flow and other parameters, support cyclic testing (such as alternating IPX1/IPX2 mode).





IPX1 X2 water spray test chamber supports personalized customization of dripping area, sample table size, control module, etc. It can adjust equipment parameters according to product specifications under test, which can meet the special scene testing, LIB provides one-stop waterproof testing solution.

Consult LIB now: Get custom solutions and more product details.
