LIB's IP6K9K is designed to simulate extreme influent scenarios, combining the stringent requirements of the IPX6K (high pressure water jet) and IPX9K (high temperature and high pressure steam jet) standards. This integrated solution ensures a comprehensive assessment of the waterproofing performance of automotive components, outdoor electronics, industrial equipment, etc. The IP6K9K test chamber complies with standards such as ISO 20653 and IEC 60529.
Key features
IP6K9K Test Chamber
Dual test mode IPX6K mode and IPX9K mode.
Save equipment procurement cost and footprint.
Large area observation window, double tempered glass, wiper system.
SUS304 stainless steel, moisture corrosion resistance, strong impact resistance.
Electromagnetic lock to prevent misoperation and ensure safety and workplace cleanliness.
Automatic water supply system, large capacity tank with high and low water float, water level alarm and automatic water supply
Wide range of industry adaptability and meets various waterproof testing requirements.
Water circulation system with filter device, workroom return water, save water resources.
parameter list
IP6K9K Test Chamber
|
Model |
R6K9K-1200 |
|||
|
Internal Dimension (mm) |
1000*1200*1000 D*W*H |
|||
|
Overall Dimension (mm) |
1150*3550*2100 D*W*H |
|||
|
Interior Volume |
1200 |
|||
Testing Platform Diameters |
600mm |
|||
Testing Platform Speed |
5±1 r.p.m |
|||
Turntable loads |
50kgs |
|||
| Testing Platform Height | 200-400 mm (adjustable) | |||
IPX6K |
Internal Diameter of Nozzle |
6.3mm |
||
Water Flow Rate |
75 L/min +/- 5% |
|||
Water pressure |
1000 Kpa |
|||
Distance fromWater Spraying to Specimens |
between 2.5 m and 3 m | |||
IPX9K |
Water Spray Angle |
0°, 30°, 60°, 90° |
||
Water Spray Temperature |
Ambient ~ +88℃ (Adjustable) |
|||
Spray Nozzle |
Four, 30 Seconds each position |
|||
Distance from Water Spraying to Specimens |
10~15cm |
|||
Water Pressure |
8000-10000 Kpa (Adjustable) |
|||
Water Flow Rate |
14L-16L/min |
|||
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV A-class |
|||
| Heater Elements | Nichrome heater | |||
Product details
IP6K9K Test Chamber
IPX6K Nozzle
High-speed injection design, uniform coverage Water pressure: 1000kpa (adjustable) Flow rate: 75±5% L/min Nozzle diameter: 6.3 mm Test distance: 2.5-3.0 m.

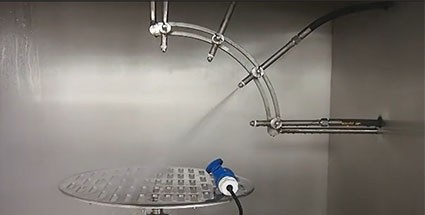

IPX9K Nozzles
4 stainless steel fan nozzles (30°, 30°, 60°, 90°, 4 cycle rotation) Water pressure: 8000-10000kpa (adjustable) Water temperature: 80±5 ° C (ambient temperature to 88 ° C) Flow rate: 14-16 L/min.

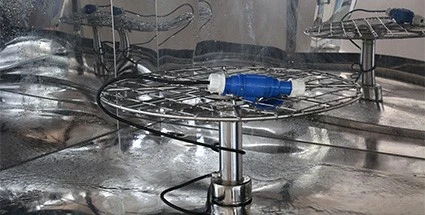

Turntable
The turntable is specifically designed for uniform exposure of the test specimen. It rotates steadily at a speed of 5 ± 1 r.p.m, ensuring each side of the product receives equal spray coverage.

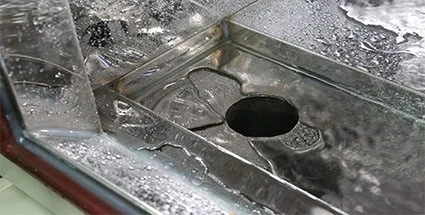

Drain Hole
Strategically located at the lowest point of the chamber floor, the drain hole enables quick and thorough water removal post-test.This design ensures minimal downtime between tests, helping customers improve testing efficiency.
LIB Environmental Simulation Industry offers tailored IP6K9K test chamber for your specific testing needs. Request a quote today to ensure your products meet the highest waterproof standards in extreme conditions.
