Perfect for electronics, automotive components, outdoor lighting, smart appliances, and military devices, it guarantees reliable performance even under extreme wet conditions.
Constructed with SUS304 stainless steel, equipped with a safety interlock system and a programmable touch controller, the IPX6 Water Test Equipment offers stable performance, repeatable results, and low maintenance load. Whether for certification, R&D, or batch production quality assurance, LIB industry delivers precise testing capability with customized options to support diverse IP testing applications.
Key Advantages – Why Choose LIB Industry IPX6 Water Test Equipment
Precision High-Pressure Jet Delivery
Engineered to achieve stable 100 ±5 L/min discharge flow and 100 ±10 kPa water pressure, guaranteeing consistent output even during continuous 60–120 min testing cycles.
No-housing IPX6 Test Equipment for Real Industrial Use
Standard IPX6 water test equipment models no-housing IPX6 water equipment are all available,enabling full-size equipment validation-ideal for EV chargers, outdoor power cabinets, and traffic signaling devices.
Smart Control & Auto Report Generation

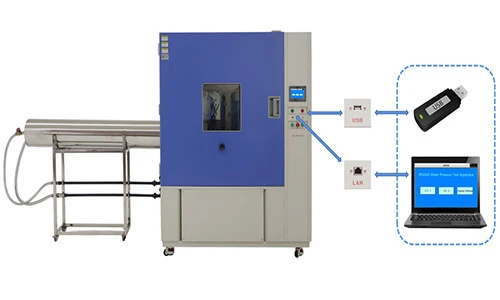

7-inch PLC controller supports multi-language, test scheduling, multi-step programs, USB export, and automatic test report generation including pressure/time/event logs for certification submission.
Low Water & Energy Consumption
Equipped with water filtration circulation,sediment removal, and pump optimization, reducing water waste and lowering operational cost across long-term certification programs.
Industrial-Grade Durability & Corrosion Protection
SUS304 chamber body, nozzle, and pipeline withstand decades years laboratory duty. Every system is pressure tested before delivery ensuring robustness and leak-free performance.
Full Safety Ecosystem Built-In
Emergency stop button, magnetic door interlock, leakage current detection, automatic pump cut-off, and overflow management keep personnel and equipment protected under dynamic testing conditions.
Designed for Standard + Non-Standard Testing
Supports IPX5 / IPX6 dual modes, angle-adjustable jetting, programmable exposure duration, and rotating or fixed object positioning for mission-critical R&D flexibility.
What Are the Technical Specifications You Need to Know?
|
Model |
R56-800 |
|||
|
Internal Dimension (mm) |
800*800*800 D*W*H |
|||
|
Overall Dimension (mm) |
950*3150*1800 D*W*H |
|||
|
Interior Volume (L) |
510 |
|||
|
Diameter of Turntable (mm) |
600 |
|||
|
Turntable loads |
20kgs Max |
|||
|
Turntable Rotation Speed |
0~7r/min (Adjustable) |
|||
|
Internal Diameter of IPX5 Nozzle |
6.3mm |
|||
|
Internal Diameter of IPX6 Nozzle |
12.5mm |
|||
|
Water Flow Rate IPX5/ IPX6 |
12.5L/min ±5% / 100L/min ±5% |
|||
|
Build-in Water Tank(mm) |
370*375*950 |
|||
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
|||
| Standard | IEC 60529, ISO20653 | |||
Highlights of IPX6 Water Test Equipment

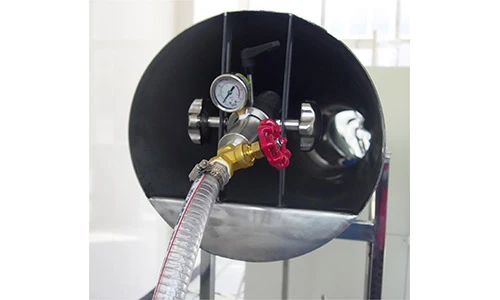

The nozzle is machined to maintain ∅12.5 mm jet diameter, achieving consistent velocity and projection spread. Calibrated pressure sensor feedback ensures every test meets IEC 60529 tolerances.

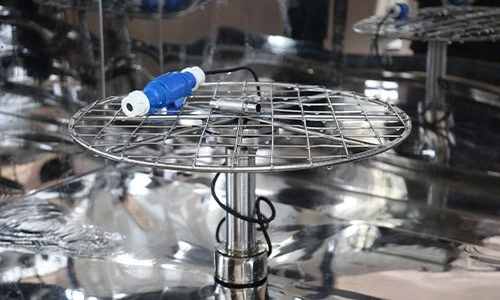

Features a rotatable turntable with height adjustment and variable rotation speed (10–30 RPM), allowing full 360° water exposure for products of different sizes. Equipped with a waterproof power system, it ensures safe and reliable operation even under continuous high-pressure IPX6 testing.
Store 120+ programs, run timed cycles, and monitor live-present pressure curves. Optional cloud dashboard enables multi-site monitoring, maintenance alerts, and standardized report submission across manufacturing hubs.
Equipped with a closed-loop water circulation system and dual-stage filtration reducing nozzle clogging and maintenance frequency. This ensures stable operation, long testing cycles, and environmentally-friendly water reuse for high-volume or long-duration IPX6 testing.

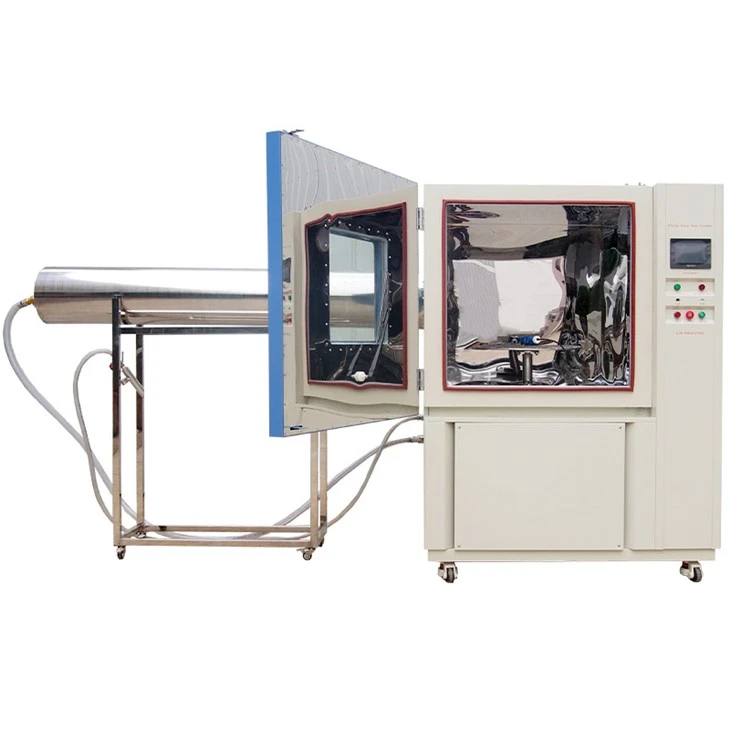

Equipped with a large observation window and manual wiper, allowing operators to maintain visibility during high-pressure water tests. Interior LED lighting ensures the test area is fully illuminated for real-time inspection, documentation.
Industry Applications – Where IPX6 Testing Makes a Critical Difference
EV Charging Stations & Connectors
Ensures waterproof reliability for outdoor charging terminals, plugs, and cable entries.
Outdoor 5G/Communication Cabinets
Protects base stations and signal control enclosures from storm-driven water exposure.
LED Street & Architectural Lighting
Validates sealing reliability for luminaires during rain, cleaning, and long-term humid environments.
Industial Automation & Security Systems
Prevents moisture penetration in control panels and surveillance equipment during high-pressure washing.
Marine & Port Electronic Components
Supports corrosion and splash resistance for devices operating in coastal and saline environments.
Manufacturer's Guide: IPX6 Water Resistance Testing FAQs
Q1: Can the IPX6 water test equipment perform IPX5 and IPX6 tests in one unit?
Q2: Does it require external plumbing or drainage build-in?
Q3: Does LIB industry support custom extra-large workspace?
Ready to Ensure IPX6 Compliance and Waterproof Reliability?
Maximize product reliability before reaching the market with IPX6 Water Test Equipment. LIB industry delivers fast configuration, global technical support, 3-year warranty, lifetime service, and engineer response within 24 hours.
Contact our team today at sales@libtestchamber.com
Discuss your product testing plan and receive your free solution recommendation.
Fast Delivery | Custom Engineering | Full IP Standard Support
