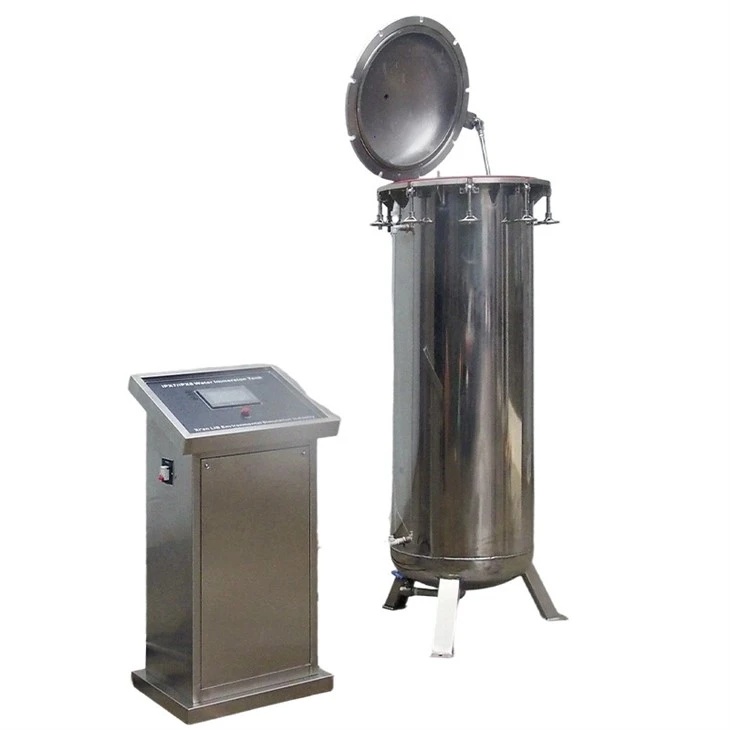

IPX7 IPX8 Immersion Tester

 Dual IP level support: IPX7 test, IPX8 test.
 SUS 304 cylindrical water tank, strong pressure capacity, corrosion resistance.
 High precision silicone sealing and 12 manual safety locks ensure air tightness.
 15mm thick wall design, can withstand pressure in water depth of 50 meters.
 Except standard pressure, the immersion water pressure can be customized.
 The bottom 3 M8 hole Z-shaped tripods guarantee grip.
 Adjustable sample holder to accommodate various sizes.

The monitoring can be installed in tank to directly observe the state of the product.

Model				R78-600
Internal Dimension (mm)				Diameter 600mm * Height 1500 mm
Overall Dimension (mm)				Diameter 800mm * Height 1800 mm
Pressure				50m water depth pressure
Open mode				Pneumatic lid
Material				A3 steel plate, wall thickness 15mm
Controller				Programmable color LCD touch screen controller, Ethernet connection
Water Supply System			Storage water tank, Automatic water supply



Product details

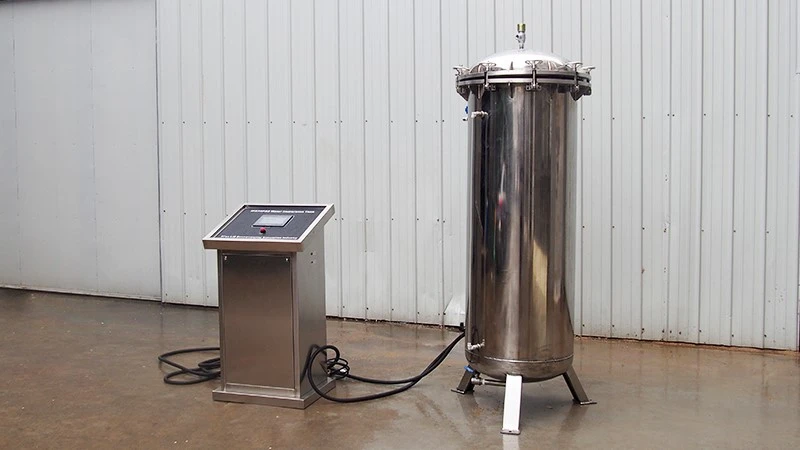

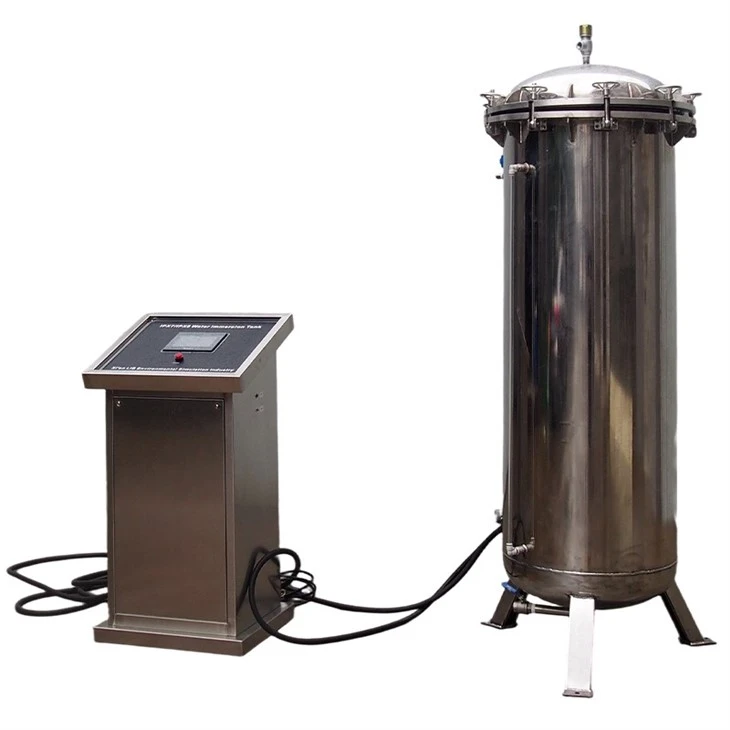

IPX7 IPX8 Immersion Tester

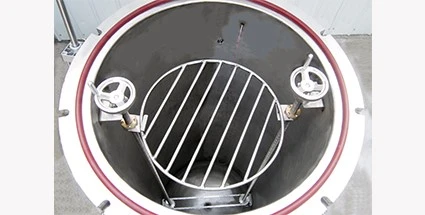

IPX7/X8 Workroom

Constructed from corrosion-resistant SUS304 stainless steel, the inner chamber is designed to withstand prolonged water immersion without degradation, ensuring test integrity over years of use.

IPX7/X8 Pneumatic Bar

The pneumatic support bar provides stable and reliable support for the chamber lid, especially critical during immersion tests where lid stability affects test integrity.

Pressure system

The air compressor drive pressure is adjusted to ensure that the simulated water depth is set accurately and consistently. High precision pressure sensor, resolution 0.001 MPa, real-time feedback.

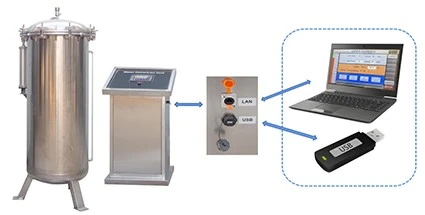

USB Interface and PC Link for IPX7/IPX8

Equipped with USB and LAN (Ethernet) data interfaces, the system supports data logging and remote management. It can be connected to a computer, printer, or Internet of things system, making it easy to track, store, and manage test data.



LIB IPX7 IPX8 immersion tester are also available for tailor-made solutions for large products or extreme pressure requirements. Comply with CE and RoHS standards to ensure compliance with international quality standards. 24/7 technical support and 3-year warranty.
