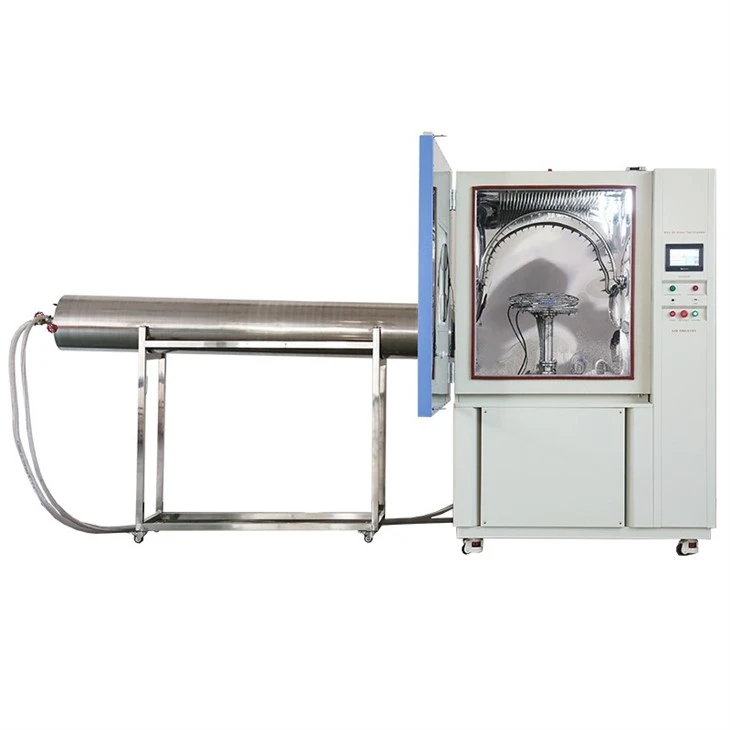

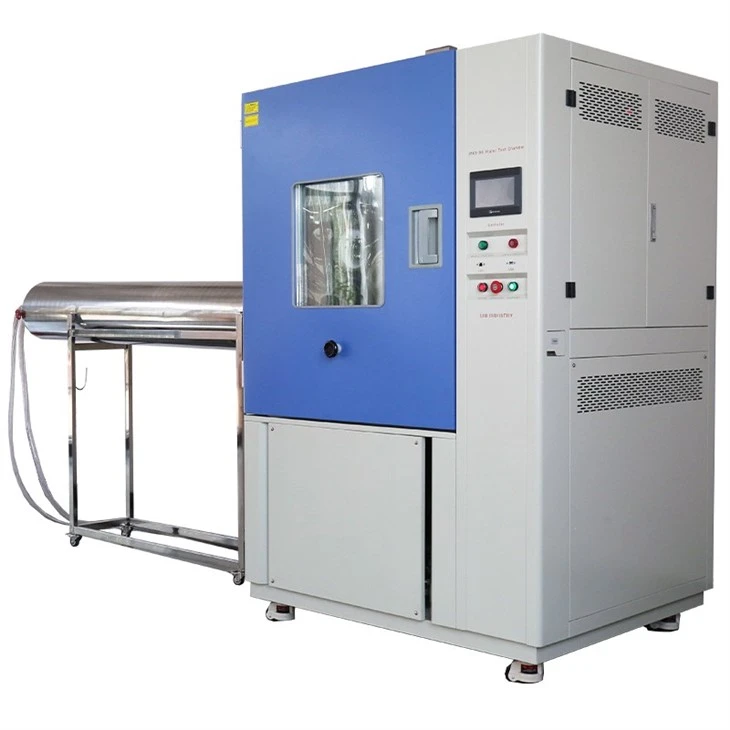

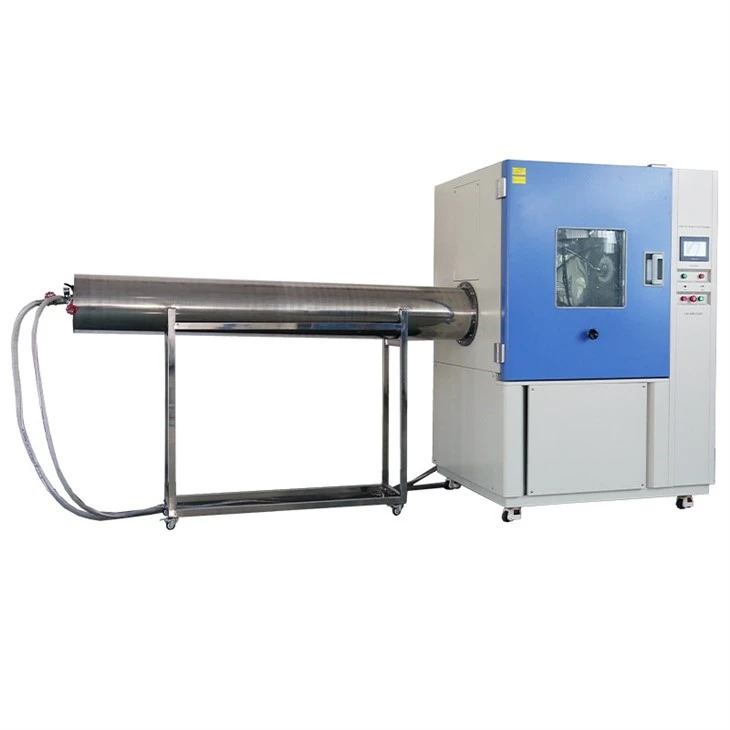

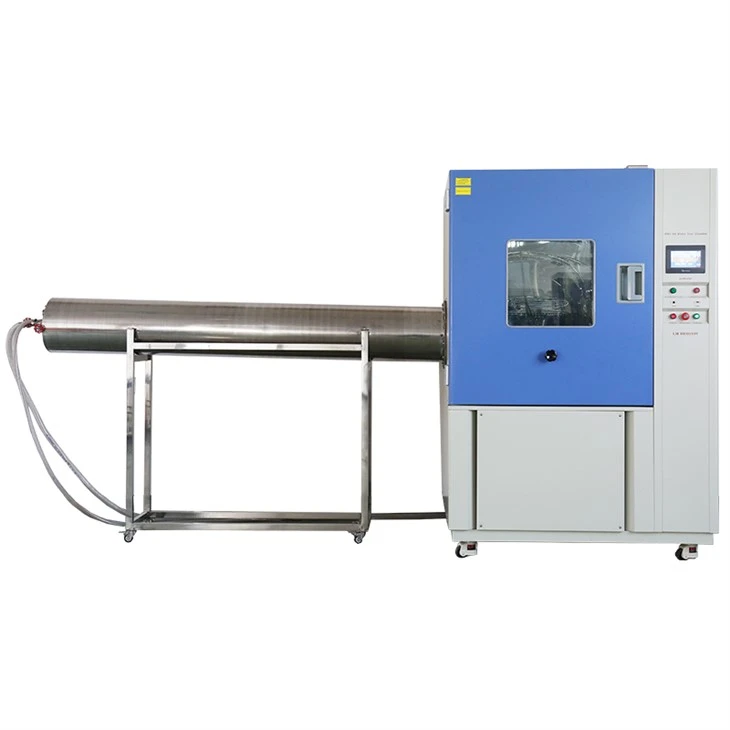

The IP test equipment can simulate a natural rain or water spray environment and is specifically designed to test the protection ability of product shells or packaging structures against water intrusion. According to the protection class (IP Code) in the international standard IEC 60529, this equipment supports test items from IPX1 to IPX6 and is widely applicable in the fields of electronics, electrical engineering, automobiles, lamps, communications, military industry and others.
Key features
IP Test Equipment
Multi-functional and supports various modes:vertical dripping, swing pipe rain shower, multi-angle water spraying and powerful jet.
Color touch screen + PLC automatic control system, with precise parameter setting.
SUS304 water tank and filtration system, highly efficient water circulation, energy-saving.
360° turntable, with adjustable speed, suitable for measuring pieces of different sizes.
The nozzle, swing pipe, electrical control, sample stage, etc. are all independent modules, convenient for disassembly, assembly and maintenance.
Complies with the test requirements such as IEC 60529 and ISO 20653.
Wide range of industry adaptability and meets various waterproof testing requirements.
parameter list
IP Test Equipment
|
Model |
RD-800C |
RD-1200C |
||
|
Internal Dimension (mm) |
900*950*950 |
1300*1350*1370 |
||
|
Overall Dimension (mm) |
1180*1420*1920 (excluding stainless steel tube) |
1540*1820*2200 (excluding stainless steel tube) |
||
|
Interior Volume |
810 |
2400 |
||
Drip Tray Size |
600*600 |
1000*1000 |
||
Oscillating Tube Radius |
400mm |
600mm |
||
| Water Jetting Tube | 2400mm | 2300mm | ||
Spraying Hole Diameter |
φ0.4mm |
|||
Hole Spacing |
50 mm |
|||
Oscillating angle of Oscillating Tube |
0 ~ ±180° (Adjustable) |
|||
Jet nozzles |
IPX5: Dia6.3mm, IPX6: Dia12.5mm |
|||
Jet distance |
2.5~3meter |
|||
Turntable Rotation Speed |
1r/min (Adjustable speed) |
|||
Controller |
Programmable color LCD touch screen controller, Ethernet connection, USB port |
|||
| Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |||
|
Safety Device |
Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
|||
Product details
IP Test Equipment

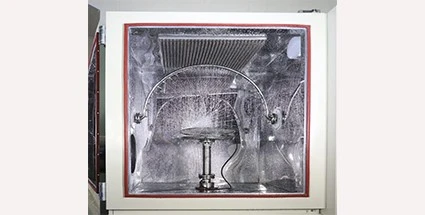

IPX1–X6 Water Spray Workroom
A versatile chamber supporting a full range of tests from IPX1 to IPX6, including both low-pressure and hose spray tests. It enables comprehensive waterproof testing in a single unit, eliminating the need to purchase separate equipment for different IP levels.

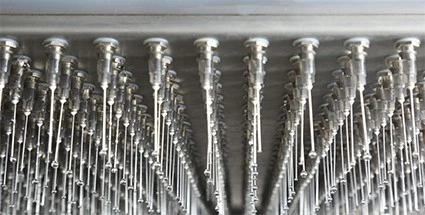

Drip Box
Specifically built for IPX1 and IPX2 testing, this box features a grid of precision nozzles that release water at a controlled rate of 1 ml/min or 3ml/min.

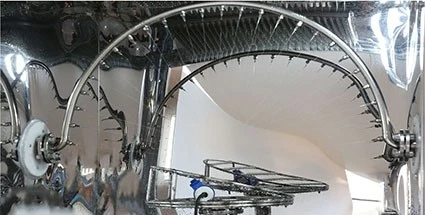

Oscillating Tube Nozzle
High-precision stainless steel nozzles with φ0.4 mm apertures are mounted on the oscillating tube at fixed intervals.

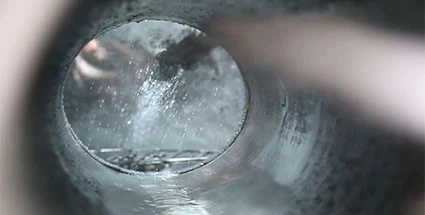

IPX5/X6 Spray Nozzle
Stainless-steel nozzles deliver high-velocity water for IPX5 (12.5 L/min) and IPX6 (100 L/min) testing. It ensures accurate and reliable test results, helping customers realistically simulate extreme water pressure conditions and improve product certification credibility.
The LIB IP test equipment (IPX1 - IPX6) offers a one-stop solution for the full-level waterproof testing of various products, ranging from light drips to strong water columns, saving you testing space and costs. Get more detailed information and highly competitive quotations from LIB!
