The LIB blowing rain test chamber is designed to simulate the harsh blowing rain environment specified in MIL-STD-810H Method 506.6, and is often used to verify the waterproof performance of high protection level products such as military, aerospace, and outdoor equipment. The LIB blowing rain test chamber replicates wind and rain conditions by precisely controlling wind speed, rainfall intensity and test angle to assess whether products can withstand extreme weather challenges.
Key features

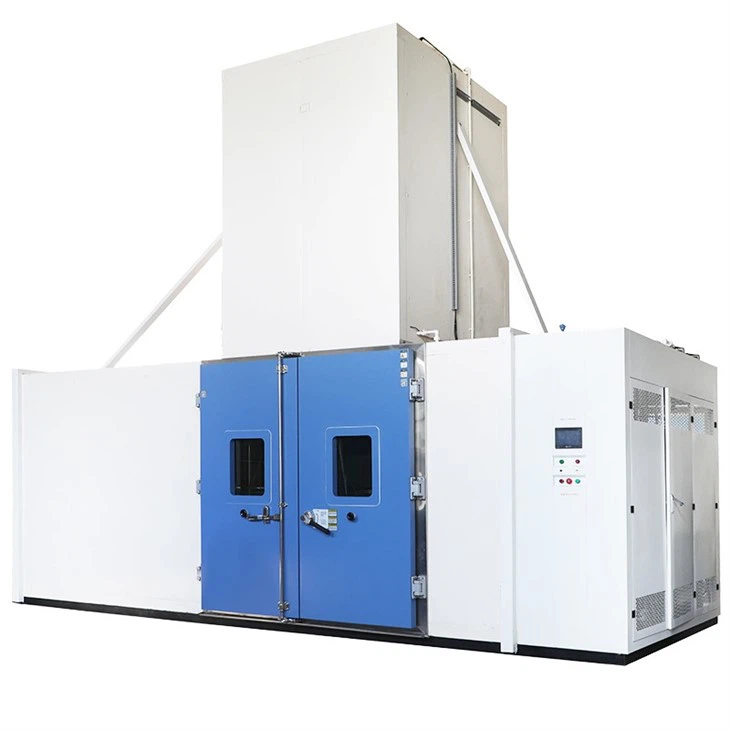

Blowing Rain Test Chamber
Procedure I – Rain and Blowing Rain;Procedure II – Exaggerated;Procedure III – Drip
Accurate simulation of wind and rain environment,high wind speed output 5 m/s ~ 20 m/s
Three-sided nozzles, high pressure stainless steel nozzle, corrosion resistance, long life
High strength structure, inner material material: SUS 304 stainless steel, corrosion resistance
A large transparent observation window with wiper and a light in the workroom
Built-in water tank and automatic recycling filter system reduce water consumption
Turntable rotating platform (360°) to achieve multi-sided wind and rain washing automatic completion
parameter list

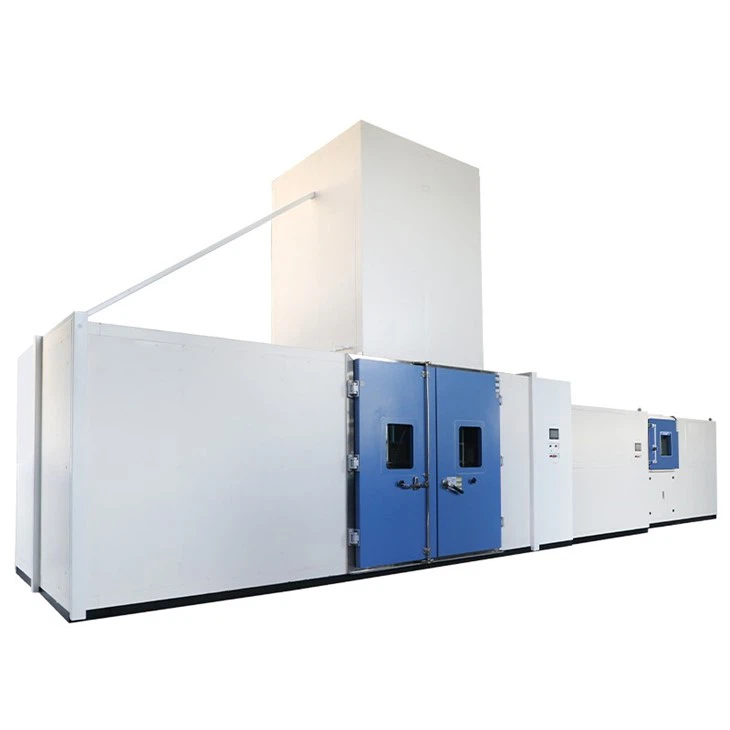

Blowing Rain Test Chamber
|
Model |
RM-1000 |
|||
|
Internal Dimension (mm) |
1000*1000*1000 mm D*W*H |
|||
|
Overall Dimension (mm) |
2600*5400*4100 D*W*H |
|||
|
Interior Volume |
1000L | |||
|
The Load of Turntable |
50kg |
|||
|
The Diameter of Turntable |
800mm |
|||
|
Rain and Blowing Rain |
Final rain droplet velocity |
9m/s on test item |
||
Rainfall rate |
≥ 1.7 mm/min |
|||
Droplet size |
0.5mm ~ 4.5mm |
|||
Test specimen heating range |
Water temperature +10°C (max +55°C) |
|||
| Test time | 0 ~ 999min. adjustable | |||
|
Exaggerated |
Nozzle pressure |
276kpa |
||
Rainfall rate |
20.8L/min |
|||
Nozzle amount |
One nozzle for each 0.56m2 of surface area and position each about 48cm from in the test surface |
|||
Droplet size |
0.5mm ~ 4.5mmD |
|||
| Test time | 0 ~ 999min. adjustable | |||
|
drip |
Drip area dimensions |
9m/s on test item |
||
Drip holes |
≥ 1.7 mm/min |
|||
Distance between hole |
0.5mm ~ 4.5mm |
|||
Volume of water |
Water temperature +10°C (max +55°C) |
|||
| Test specimen heating range | 0 ~ 999min. adjustable | |||
Door Lock |
Electromagnetic lock |
|||
Interior Material |
SUS304 stainless steel |
|||
| Standard | MIL-STD- 810H | |||
Product details
Blowing Rain Test Chamber
Workroom Structure
Corrosion-resistant, equipped with an observation window and lighting for convenient monitoring of the testing process. Cabin size: 1m³ (Customization supported)
The thickened sealed door is equipped with an electromagnetic lock to prevent accidental opening during testing. The observation window is equipped with a wiper and defogging function.
Turntable
Simulate the exposure angles in different directions of the equipment in a rainy environment. Diameter: Ø800mm (customizable),load-bearing capacity: 50kg, speed adjustable, forward and reverse rotation programmable, supports intermittent operation.
Spray system (nozzle)
High-precision nozzles simulate natural rainfall and are distributed on the top and side walls of the test chamber, with a wide coverage and uniform spraying.
Axial flow fan (rain blowing simulation)
High-power axial flow fans are used to implement Procedure II rain-blowing test in MIL-STD-810H, simulating a strong wind mixed with rain environment. Maximum wind speed: ≥18 m/s.
Consult LIB now: Get blowing rain test chamber compatible solutions, detailed technical specifications, and a free custom consultation!
