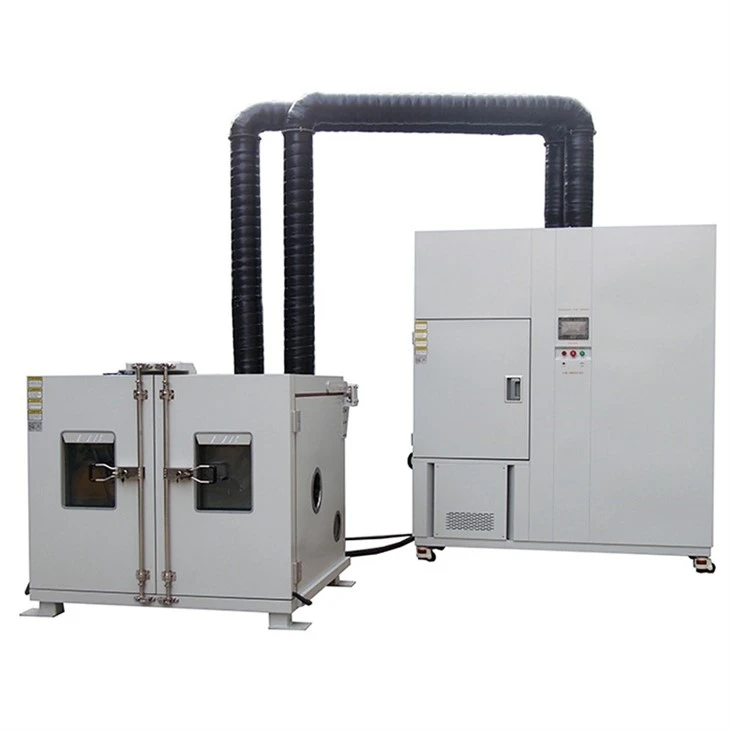

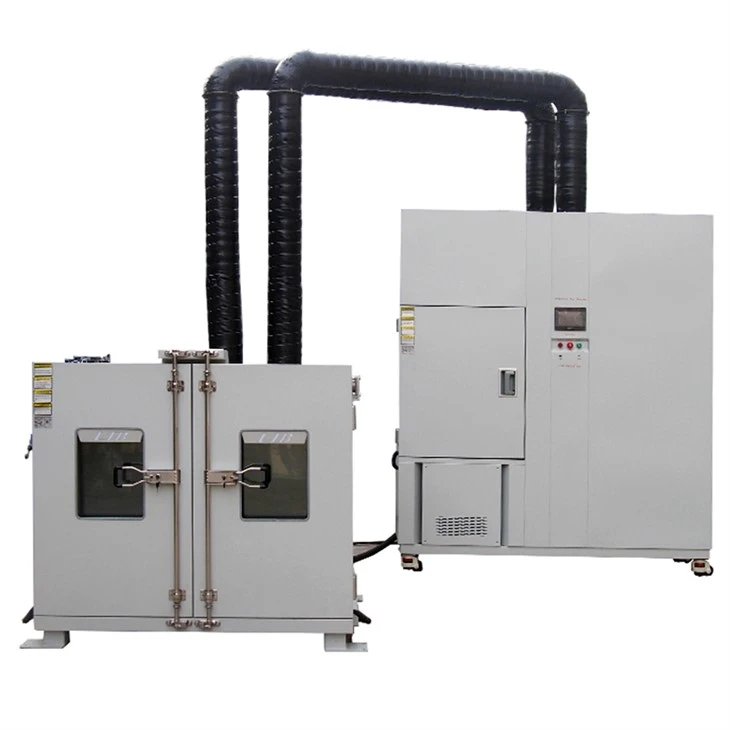

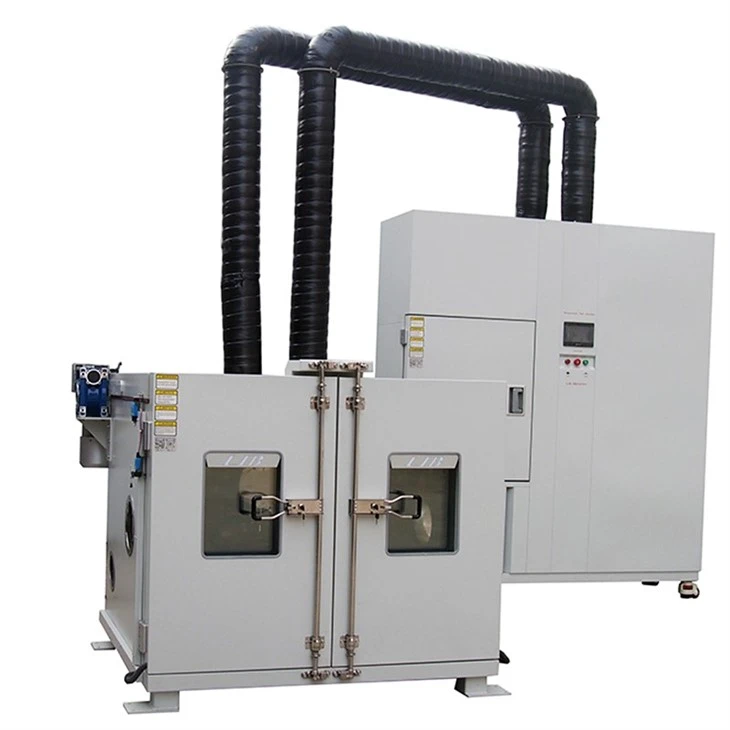

The conditioning chamber is a split-type temperature and humidity testing device. This test equipment separates the main system of the traditional temperature and humidity test chamber from the test chamber itself. The regulated air is conveyed to the independent working chambers through air ducts. Multiple working chamber sizes are available to achieve precise temperature and humidity control. The test range is -70℃, -40℃, -20℃ to +150℃, and the humidity range can reach 20%RH to 98%RH. It is suitable for environmental reliability tests of battery modules, automotive parts, large electronic equipment, material samples, etc.
Key features
Conditioning Chamber
The workroom is separated from the main unit and can be flexibly arranged through air ducts to adapt to non-standard Spaces or large experimental areas.
The temperature range is -70°C to +150°C, and the humidity is 20%RH to 95%RH, meeting most industry standards.
±0.5℃ temperature fluctuation and ±2.5%RH humidity fluctuation, making it suitable for precise testing requirements.
Air duct circulation ensures uniformity of temperature and humidity.
The workroom is located far from the test area, operating with low noise and low interference, which is conducive to use in clean rooms or R&D laboratories.
Flexible customization of interfaces (size, quantity, position), and support for functional integration testing.
The workroom can be independently replaced or expanded to reduce long-term usage costs.
parameter list
Conditioning Chamber
|
Model |
TH-100 |
TH-225 |
TH-800 | TH-1000 |
|
Overall Dimension (mm) |
820*1160*950 |
900*1210*1000 |
1200*1340*2020 |
1500*1540*2140 |
|
Interior Volume |
100L |
225L |
800L | 1000L |
|
Heat load |
1000W |
|||
|
Temperature Range |
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ |
|||
|
Temperature Fluctuation |
± 0.5 ℃ |
|||
|
Temperature Deviation |
± 2.0 ℃ |
|||
|
Humidity Range |
20% ~ 98% RH |
|||
|
Humidity Deviation |
± 2.5% RH |
|||
|
Cooling Rate |
1 ℃ / min |
|||
|
Heating Rate |
3 ℃ / min |
|||
|
Controller |
Programmable color LCD touch screen controller,PC Link, LAN interface | |||
|
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV A-class | |||
|
Cooling system |
Mechanical compression refrigeration system,environmentally friendly refrigerant. | |||
|
Refrigerating unit |
French TECUMSEH compressor | |||
|
Water supply system |
Automatic water supply; Water purification system | |||
Product details
Conditioning Chamber

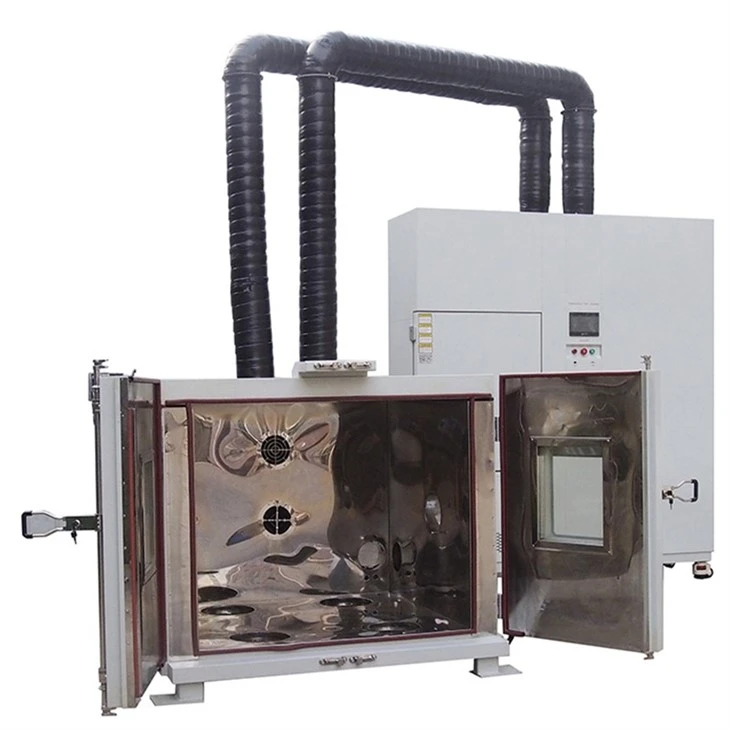

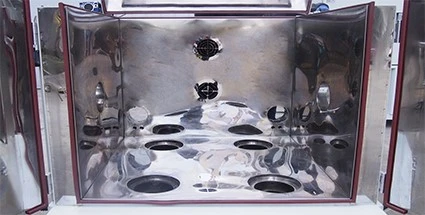

Workroom
SUS304, corrosion-resistant, easy to clean. The door is equipped with an electrically heated anti-freezing glass observation window and LED lighting, which is convenient for observing samples in high humidity or low temperature conditions.

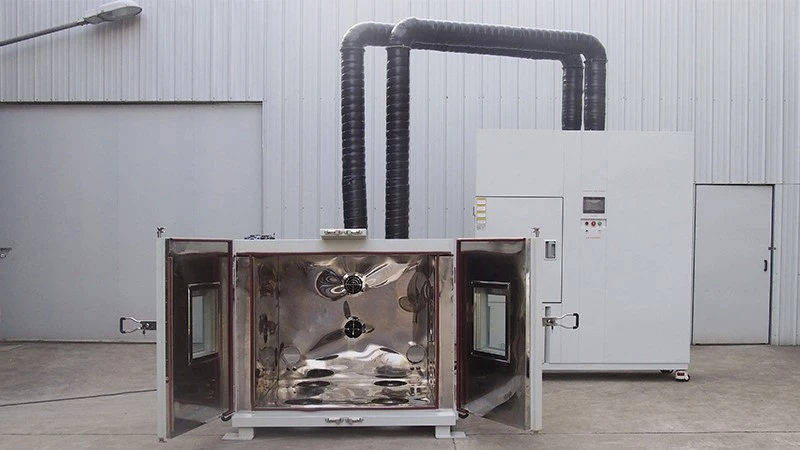

Air duct supply

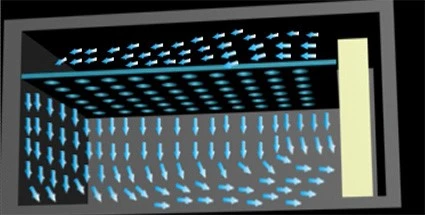

The main unit delivers the regulated warm and humid air into the workroom through insulated air ducts. And the air ducts can be arranged at the top or side. The internal circulating air can achieve a temperature and humidity uniformity of ≤±2.0°C / ±2.5%RH, even in large-volume test spaces.

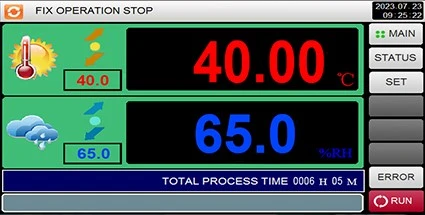

Control and Data Management
Color touch screen, multi-language interface. The operation interface is intuitive, with programmable multi-segment temperature and humidity control programs. USB export and Ethernet remote monitoring functions, and can be connected to the laboratory information management system.

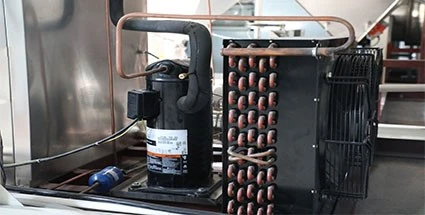

Refrigeration system
The refrigeration system adopts environmentally friendly refrigerants with stability and high efficiency. The heating and cooling rate can reach 3 to 5°C/min (customizable), and it supports rapid temperature change tests.
If you have any other requirements for the conditioning chamber, please feel free to contact LIB to discuss with us. All products come with a three-year warranty and lifetime service.
