Damp heating chamber for PV modules simulate high temperature and humidity environment (customized mode can be set, temperature 85℃, humidity 85%RH), test the long-term resistance( usually 1000 hours is set)of photovoltaic modules to hot and humid climate. The main verification of its electrical performance under hot and humid conditions, material aging (such as backplane delamination, EVA yellowing) and sealing reliability indicators.
Key features

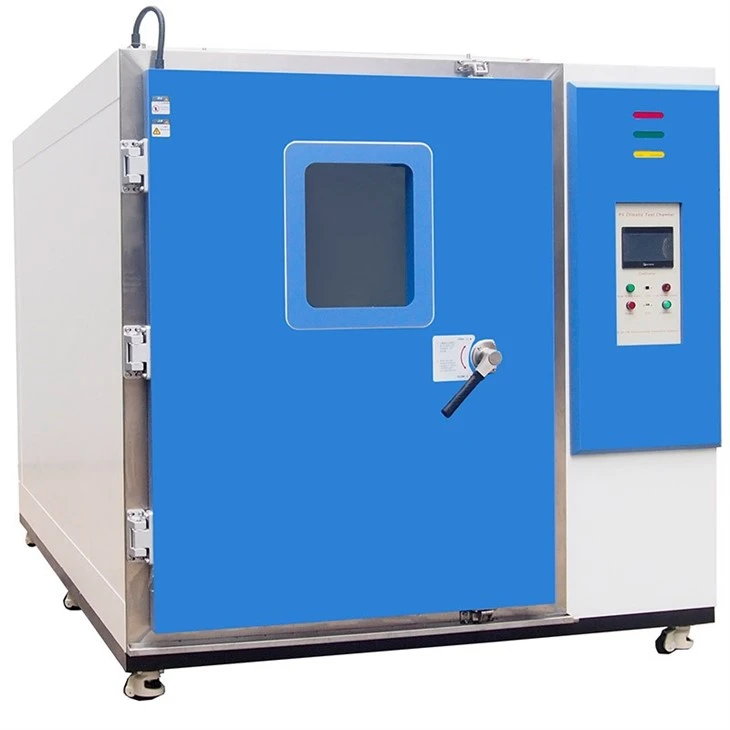

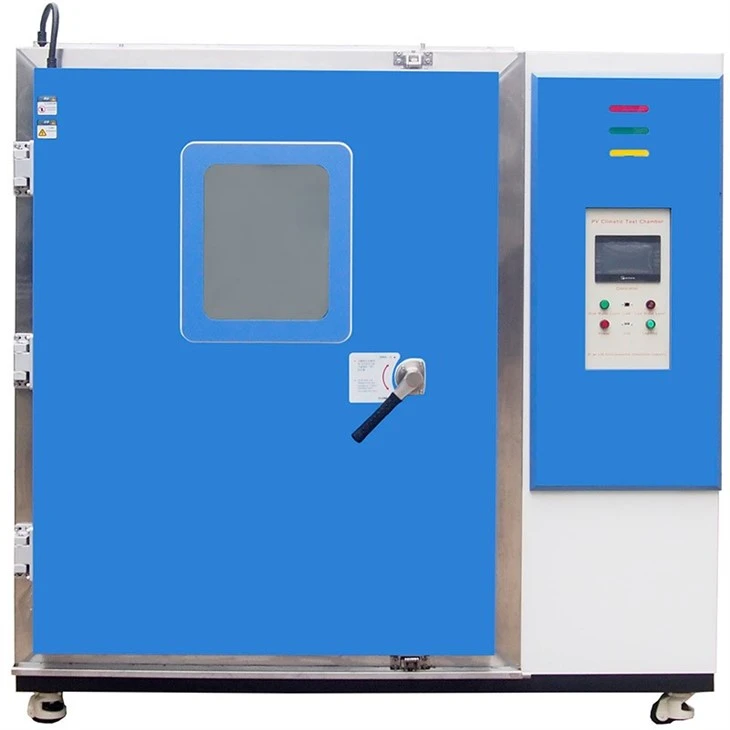

Damp Heating Chamber for PV Modules
Temperature -20/40/70℃~+150℃, humidity 20%~98%RH, support double 85 (85℃/85%RH) long-term test (1000~3000 hours).
The temperature and humidity fluctuation is ≤±0.5 ° C /±2%RH, ensuring consistent component test conditions.
Special sample rack, adjustable PV panel placement angle, multiple PV panels can be tested simultaneously.
Multi-test integration, optional UV aging, salt spray and other functions.
Support user-defined temperature and humidity gradient change curves.
Large-capacity water storage tanks and water replenishment systems ensure the continuity of the testing process.
SUS 304 mirror-finish workroom, corrosion-resistant and high humidity resistant.
parameter list
Damp Heating Chamber for PV Modules
|
Model |
PV-04 | |||
|
Internal Dimension |
1300*700*1350 |
|||
|
Overall Dimension |
1900*1100*1750 |
|||
|
Interior Volume |
1220L |
|||
|
Temperature Range |
-20℃ ～ +150 ℃ -40℃ ～ +150 ℃ -60℃ ～ +150 ℃ -120℃ ～ +150 ℃ |
|||
|
Temperature Fluctuation |
≤ ±0.5℃ |
|||
|
Temperature Deviation |
≤ 2.0℃ | |||
|
Humidity Range |
20%RH ~ 98%RH | |||
|
Humidity deviation |
± 2.5% RH |
|||
|
Temperature Change Rate |
1 ~ 3.4℃ / Min |
|||
|
Panel Size |
1M*2M |
|||
|
Panel Capacity |
4 / 6 / 8 / 10 / 12 Pieces |
|||
|
Controller |
Programmable color LCD touch screen controller,Ethernet connection, PC Link, USB |
|||
|
Water supply system |
Automatic water supply,Water purification system |
|||
|
Humidifier |
External isolation, stainless steel surface evaporation humidifier |
|||
Product details

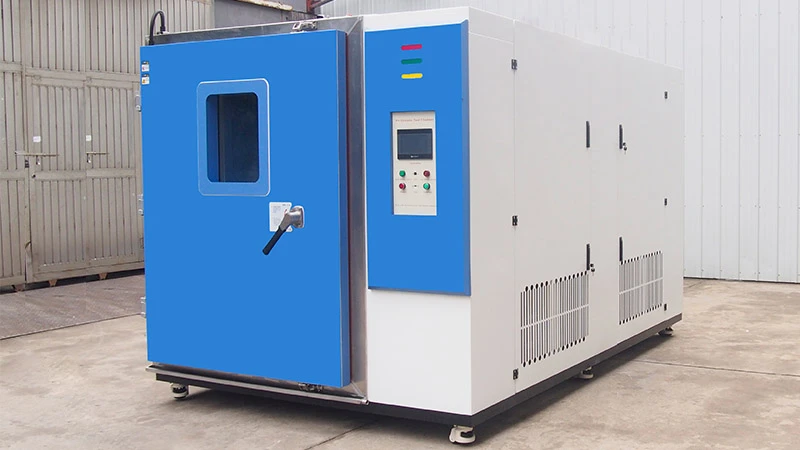

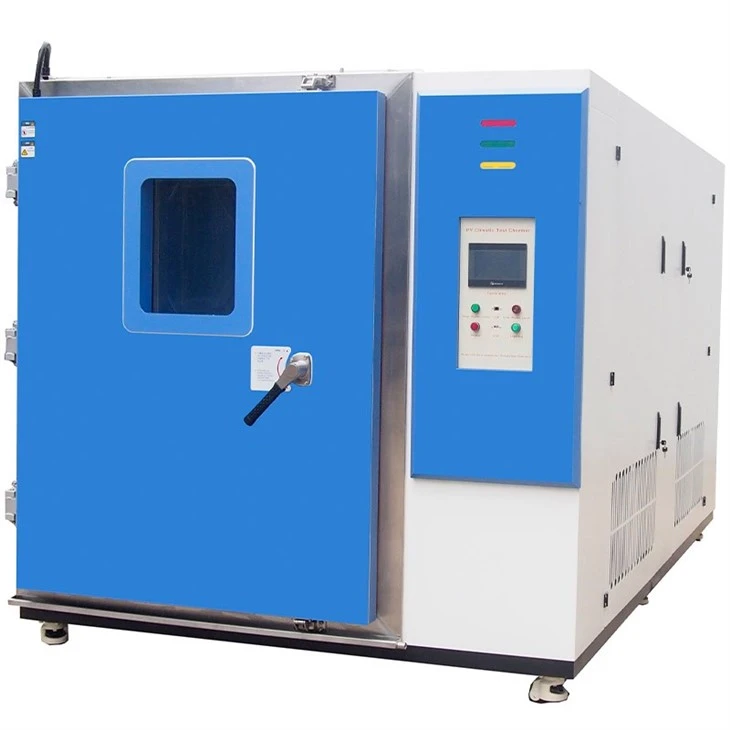

Damp Heating Chamber for PV Modules
Workroom
High-strength SUS304, with strong corrosion resistance, ensures long-term operation in a continuous environment of 85℃ and 85%RH. The sample holder fixes PV modules of different sizes, with high-temperature resistant observation Windows and internal lighting devices, facilitating the inspection of the test status.

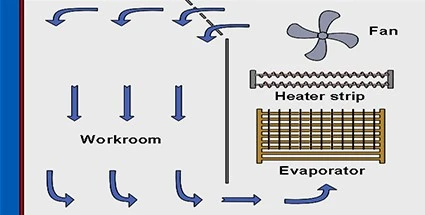

Air circulation system
Air out at the top, air back at the bottom, this is a continuous circulation of workroom air to ensure the consistency of environmental parameters.

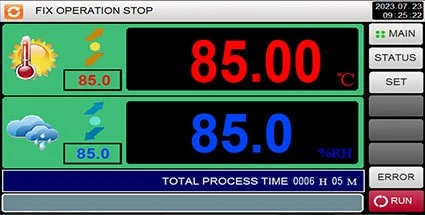

Intelligent controller
Touch screen, switchable language interface, real-time display of temperature and humidity curves and vibration spectrum;Supports remote control, scheduled start-up and automatic alarm functions
Test cable hole
Test hole size: Standard Φ50 mm, set on the side or back of the chamber, the number and position can be customized.
The LIB damp heating chamber for PV modules supports various customized solutions: chamber size, sample rack, test holes, parameters, etc. It comes with a 3-year warranty and lifetime service, and offers 7/24 remote fault diagnosis.
