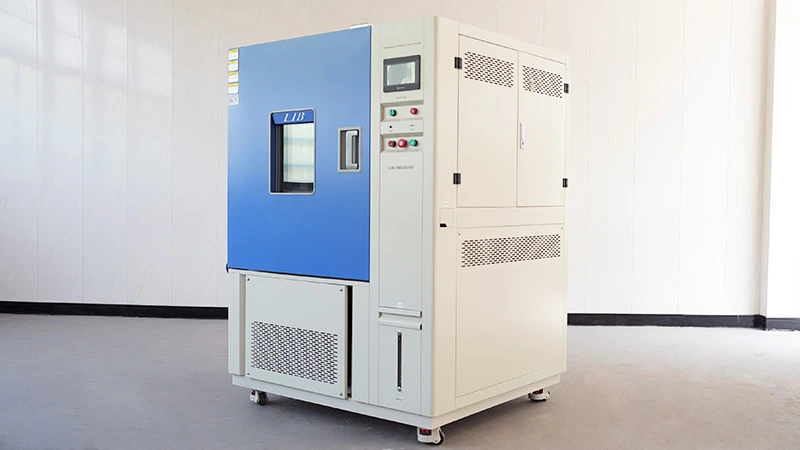

The cryogenic test chambers can simulate the extreme low temperature environment, and adopt the cascade mechanical refrigeration technology to achieve -120℃~+150℃, which can quickly reach and maintain low temperature stability. It is mainly used to verify the physical properties, reliability and endurance of materials, electronic components or industrial products under ultra-low temperature conditions.
Capacity from 100L, 225L, 500L, 800L, 1000L optional and other performance are customizable.
Key features
Cryogenic Test Chambers
Accurately adjust and control temperature and humidity in a wide range to meet various test needs.
The compact design and optimized performance make it cost-effective for long-term operation.
User-friendly interface and quick setup process ensure minimal downtime.
Highly controlled and stable testing environments, which are crucial for accurate and repeatable results.
Low noise,will not cause significant interference to the surrounding environment.
Relatively simple structure, easy daily maintenance work, and the cost is low.
parameter list
Cryogenic Test Chambers
|
Model |
CF-100 |
CF-225 |
CF-500 | CF-1000 |
|
Internal Dimension (mm) |
400*500*500 |
500*600*750 |
700*800*900 |
1000*1000*1000 |
|
Overall Dimension (mm) |
900*1050*1620 |
1000*1140*1870 |
1200*1340*2020 |
1500*1540*2140 |
|
Interior Volume |
100L |
225L |
500L | 1000L |
|
Temperature Range |
-120℃ ～ +150 ℃ |
|||
|
Temperature Fluctuation |
± 0.5 ℃ |
|||
|
Temperature Deviation |
± 2.0 ℃ |
|||
|
Cooling Rate |
1 ℃ / min |
|||
|
Heating Rate |
3 ℃ / min |
|||
Product details
Cryogenic Test Chambers

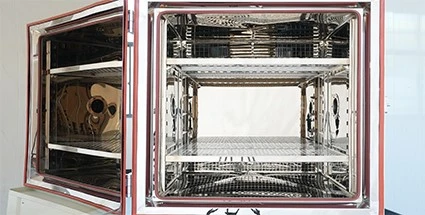

Workroom
Made of 304 stainless steel with excellent corrosion resistance and easy cleaning. Equipped with double-layer adjustable shelves (the quantity can be customized). Through the efficient insulation layer and sealing design, the workroom can stably maintain the cryogenic range.

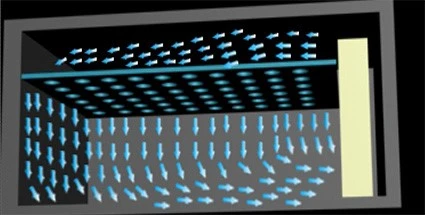

Air circulation system
The centrifugal fans promote faster air circulation in the workroom to increase the rate of testing such as warming and high humidity during testing.

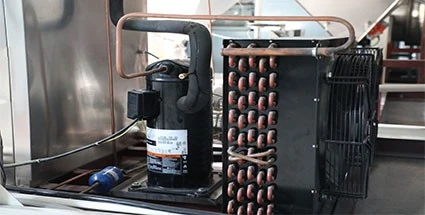

Cooling system
The French TECUMSEH compressor with a temperature cooling rate of up to 1°C per minute allows for precise and rapid cooling in order to facilitate efficient and accurate testing

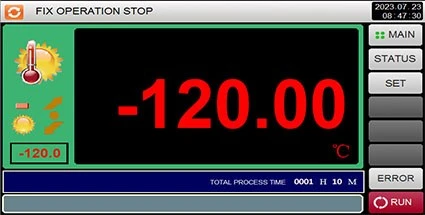

Controller
A user-friendly multi-language touchscreen control panel simplifies operation. Real-time display of environmental parameters. The panel also allows for easy programming and remote access and control via Ethernet.
The LIB cryogenic test chamber supports ultra-low temperature testing up to -120°C, featuring high-precision temperature control and a structure designed to resist cold shrinkage. Contact LIB immediately to obtain a dedicated cryogenic testing solution.
