Based on the temperature and humidity test chamber, temperature humidity vibration test chamber is equipped with horizontal or vertical vibration table, which can comprehensively test the temperature(-50℃ ～ +150 ℃), humidity(30% ~ 98% RH) and vibration(2 to 4000 Hz) of the DUTs. Suitable for aerospace products, information electronic instruments, materials, electrical, electronic products, all kinds of electronic components in a comprehensive harsh environment to test their performance indicators.
Key features

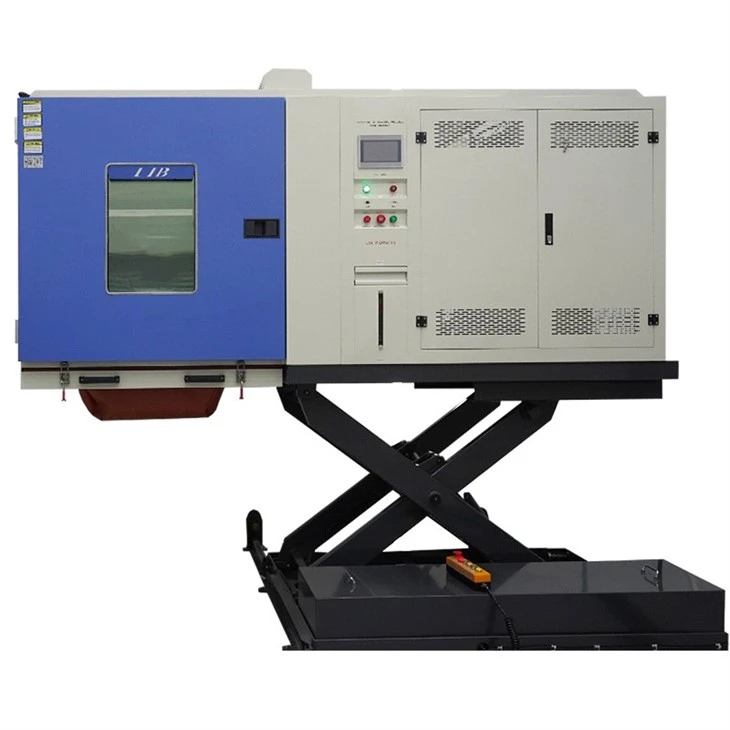

Temperature Humidity Vibration Test Chamber
Simultaneous reproduction test pieces' actual situation under temperature, humidity, vibration, comprehensive test product adaptability.
High precision sensor ensures temperature and humidity ±0.5℃, 2.5%RH, vibration error ≤5%.
Three-in-one design saves space,temperature and humidity test chamber can also be used independently.
Temperature and humidity vibration test chamber can also be customized, including workroom size, parameter performance, etc.
Supports multi-directional vibrations such as vertical and horizontal.
The T&H system and the vibration system are synchronously linked.
Complies with ISO 16750, MIL-STD-810 and IEC 60068 and other international standards.
parameter list
Temperature Humidity Vibration Test Chamber
|
Model |
THV-225 |
|||
Temperature Range |
-50℃ ～ +150 ℃ |
|||
| Temperature Fluctuation |
± 0.5 ℃ |
|||
| Temperature Deviation |
± 2.0 ℃ |
|||
| Humidity Range |
30% ~ 98% RH |
|||
| Humidity Deviation |
± 2.5% RH |
|||
Cooling Rate |
5 ℃ / min |
|||
| Heating Rate |
5 ℃ / min |
|||
Rated Force of Vibration |
1000kgf |
|||
Frequency Range of Vibration |
2 to 4000 Hz |
|||
| Armature Diameter of shaker |
φ240mm |
|||
horizontal sliding table |
600*600 mm |
|||
Power Amplifier |
Digital power amplifier |
|||
| Head Expander |
600*600 mm |
|||
Blower |
4Kw blower, including muffler. |
|||
Cooling system |
Mechanical compression refrigeration system,environmentally friendly refrigerant |
|||
| Safety Device |
Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection |
|||
| Standard Configuration | French TECUMSEH compressor | |||
Product details
Temperature Humidity Vibration Test Chamber

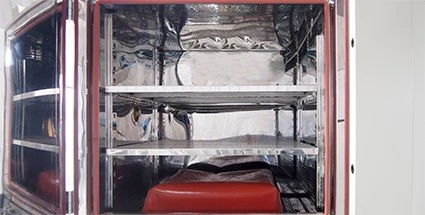

Workroom
SUS304 stainless steel mirror material, corrosion resistance and easy to clean. The interlayer is filled with polyurethane foam material to ensure the stability of temperature and humidity in the chamber.

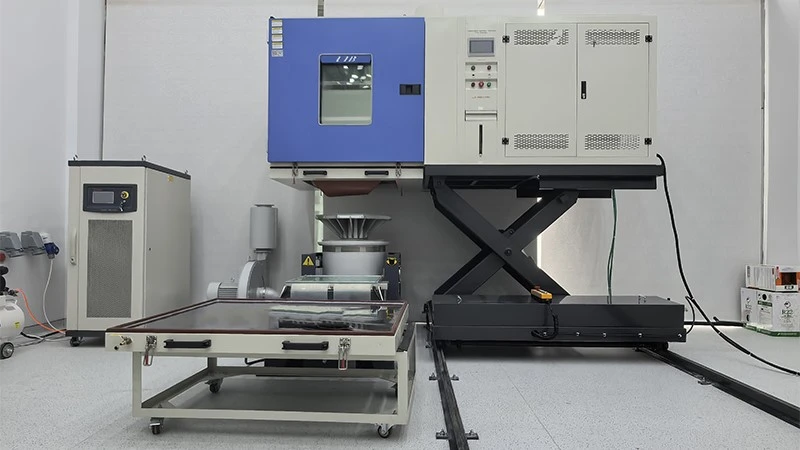

Vibration table
The bottom is equipped with detachable movable bottom plate, which supports no vibration, vertical vibration and horizontal vibration to meet the needs of multi-direction vibration.
Remote control
Touch screen controller, support language switching and USB data export, remote control, early warning; Data is automatically generated and stored.

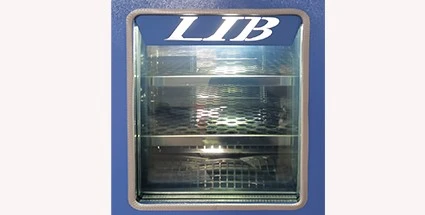

Observation window
Double-layer hollow tempered glass with conductive film anti-fog coating on the inside, large area (size can also be customized), supporting real-time observation of sample status.
LIB temperature and humidity vibration test chamber accurately simulates environmental stress to ensure the reliable performance of the products. One-stop customization, 3-year warranty, lifetime technical support. Consult now to get exclusive test solutions and quotations!
