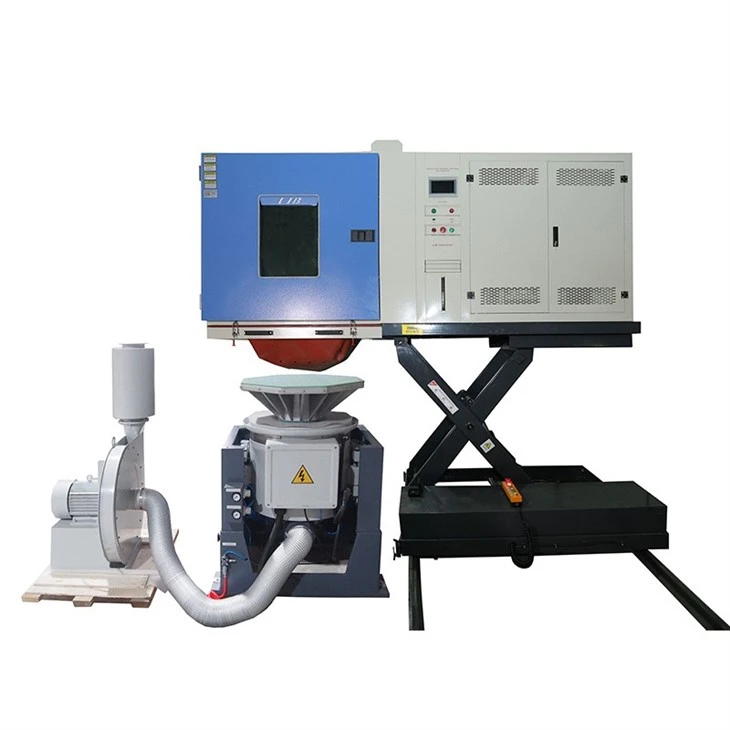

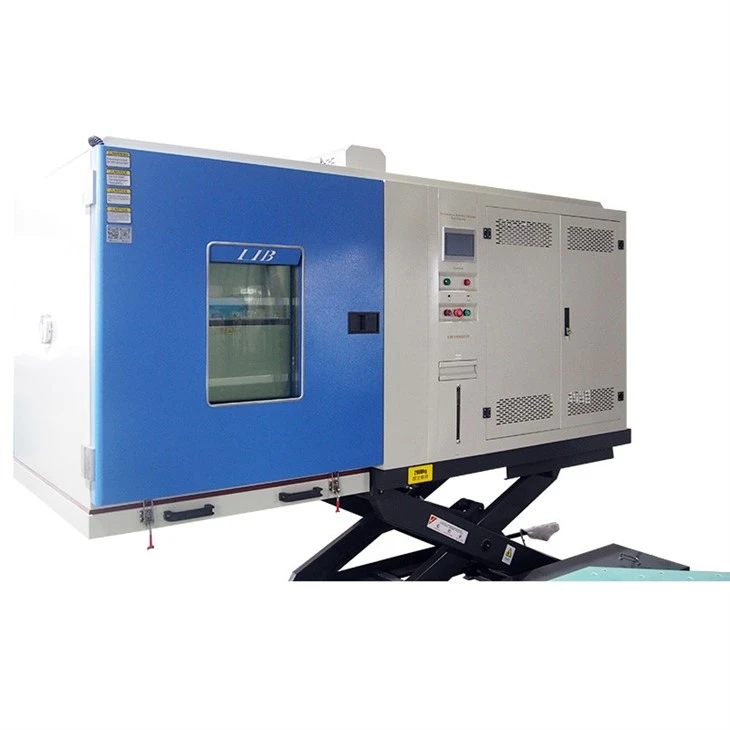

Vibration Climatic Test Chamber

The vibration climatic test chamber combines environmental stress tests (such as high temperature, low temperature, wet heat, dry) with mechanical vibration tests (vertical vibration and horizontal vibration) to simulate the multiple stress environments that products face during transportation, storage or actual use, and to test the reliability and performance of products in complex environments.

Multi-environment superimposed tests：temperature, humidity, and vibration.

SUS304, corrosion-resistant, heat-resistant and stable for long-term operation.

The temperature and humidity accuracy are ±0.5℃,± 2%RH, and rated force of vibration is 1000kgf.

Independent vibration along the XY axes.

With a heating and cooling rate of 5℃/min, accelerating the aging process.

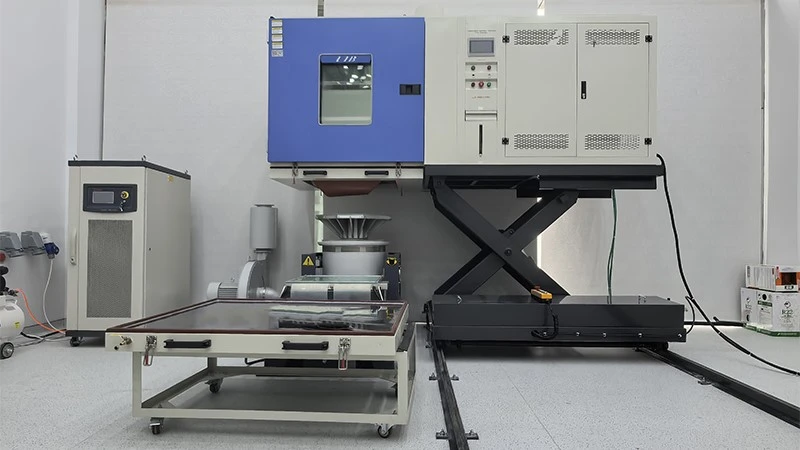

The environmental room, vibration table and control console adopt a modular structure and can be operated independently or linked.

Detachable vibration table, and the temperature and humidity chamber can be used independently.

Product details



Vibration Climatic Test Chamber

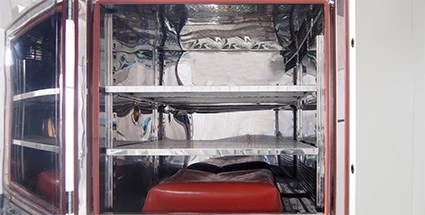

Workroom structure

High-density polyurethane foam layer, which has a good heat preservation effect. The door seal adopts double high and low temperature resistant silicone sealing strips. High-temperature resistant observation window + conductive film defrosting layer, allowing for clear observation.



Vibration table

Seamlessly connect the vibration table platform with the test chamber, while ensuring mechanical isolation and hot air sealing.

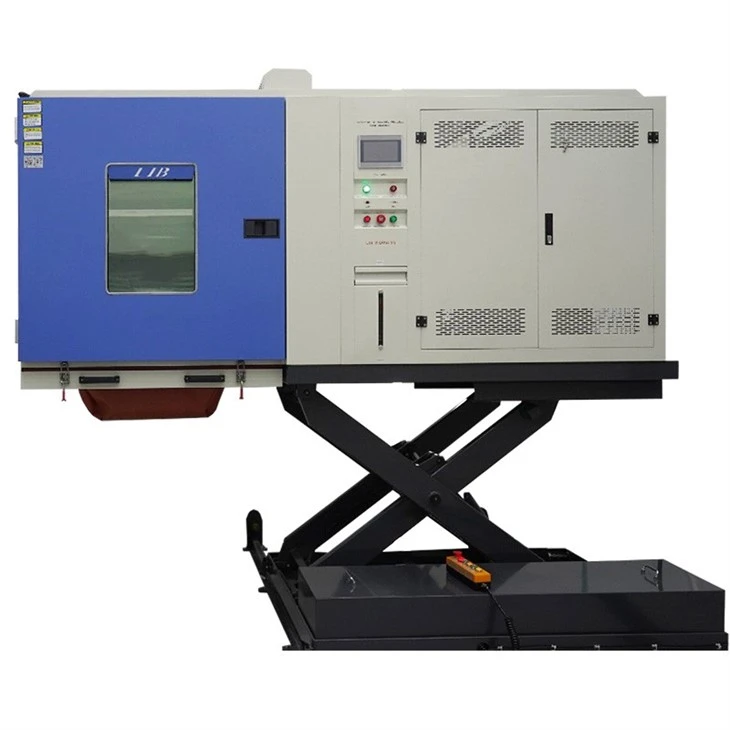

The design of the lifting track for the vibration table enables the platform to freely move in and out of the chamber and supports switching vibration tests.

Blind plate

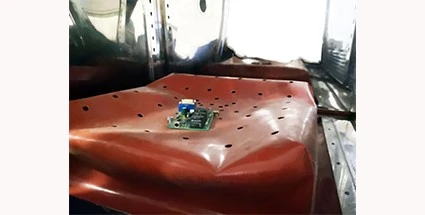

The blind plate, in coordination with the slight displacement of the vibration table, ensures flexible sealing.

Intelligent control panel

Touch screen, switchable language interface, real-time display of temperature and humidity curves and vibration spectrum;Supports remote control, scheduled start-up and automatic alarm functions;

The LIB vibration climate test chamber is suitable for special testing requirements in fields such as military industry, new energy, and consumer electronics. It also supports personalized customization, including chamber volume, vibration direction, etc. Consult LIB immediately to obtain details of the customization plan and technical parameters.
