By combining the 3 environmental parameters, the temperature humidity pressure chamber can simulate some special application scenarios, such as:low-pressure environment on the plateau,environmental changes during transportation such as aircraft and high-speed trains,aerospace vehicles are in high-altitude or low-temperature and humid conditions,vacuum or high-pressure environments, etc., are used to test the tolerance and reliability of products or materials.
Key features
Temperature Humidity Pressure Chamber
Ultra-wide temperature range, multiple temperature Settings available, and precise temperature control.
The relative humidity is adjustable from 20% to 98% RH and is also controllable in low-pressure environments.
Simulate a pressure range from sea level to 40,000 meters.
Simultaneous control of temperature, humidity and pressure, and also supports single-mode operation.
Safety protection mechanisms such as over-temperature and over-pressure ensure safe operation.
Made of SUS304 stainless steel, it is resistant to moisture and corrosion.
Double-layer tempered glass observation window, condensation and heat transfer, can be monitored in real time without disturbing the internal
parameter list
Temperature Humidity Pressure Chamber
|
Model |
A-1000 | |||
|
Internal Dimension |
Depth 1500 width 1000 height 970mm |
|||
|
Overall Dimension |
Depth 2050 width 1300 height 2200mm |
|||
|
Interior Volume |
1000L |
|||
|
Temperature Range |
-20℃ ～ +150 ℃ -40℃ ～ +150 ℃ -60℃ ～ +150 ℃ -120℃ ～ +150 ℃ |
|||
|
Temperature Fluctuation |
≤ ±0.5℃ |
|||
|
Temperature Deviation |
≤ 2.0℃ | |||
|
Temperature Uniformity |
≤ 2.0℃ | |||
|
Humidity Range |
20%RH ~ 95%RH (can be controlled above 50Kpa) | |||
|
Cooling Rate |
2 ℃ / min | |||
|
Heating Rate |
3 ℃ / min | |||
|
Pressure Range |
Atmospheric pressure to 0.5kPa standard atmospheric pressure 101.kpa | |||
|
Pressure Deviation |
±2Kpa | |||
|
Pressure Reduction Time |
Atmospheric pressure to 0.5kpa ≤30min | |||
|
Pressure Housing |
manganese steel, surface spray treatment | |||
|
Other outer wall materials |
doublesided galvanized steel plate, surface spray treatment | |||
| Vacuum system | vacuum pump, exhaust regulating valve, charging regulating valve | |||
Product details
Temperature Humidity Pressure Chamber

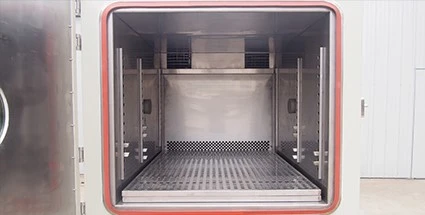

Workroom
Made of SUS304, easy to clean and corrosion-resistant.Cooperate with temperature and humidity sensors and heating, cooling, humidification/dehumidification systems, etc. to maintain stable test environmental conditions. The size can be customized according to the testing requirements.

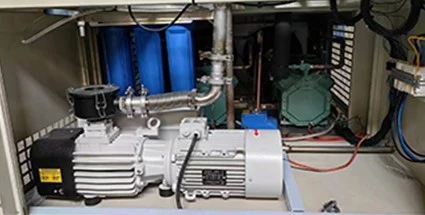

Vacuum system
Equipped with a vacuum pump and pressure regulation system, it can simulate high-altitude environments as low as 5kPa, and the pressure change rate and stability can be set.

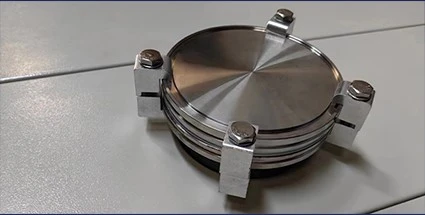

Cable Hole
Connect sample to the external device or power the test piece. The cable threading in does not affect the sealing performance. silicone sealing plug, with a standard specification of ∅50mm(customized)Multiple cable holes can be installed, and the positions can be flexibly arranged.

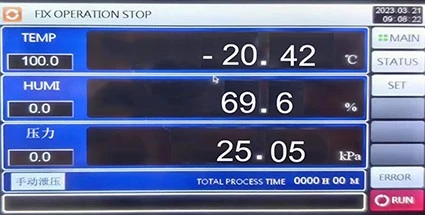

Intelligent control panel
A user-friendly multi-language touchscreen control panel simplifies operation. Real-time display of environmental parameters. The panel also allows for easy programming and remote access and control via Wi-Fi or Ethernet.
The temperature humidity pressure chamber offers a wide range of customization options：workroom dimensions, sample connectors, etc.Consult LIB now: for customized solutions, more product details and highly competitive quotations.
