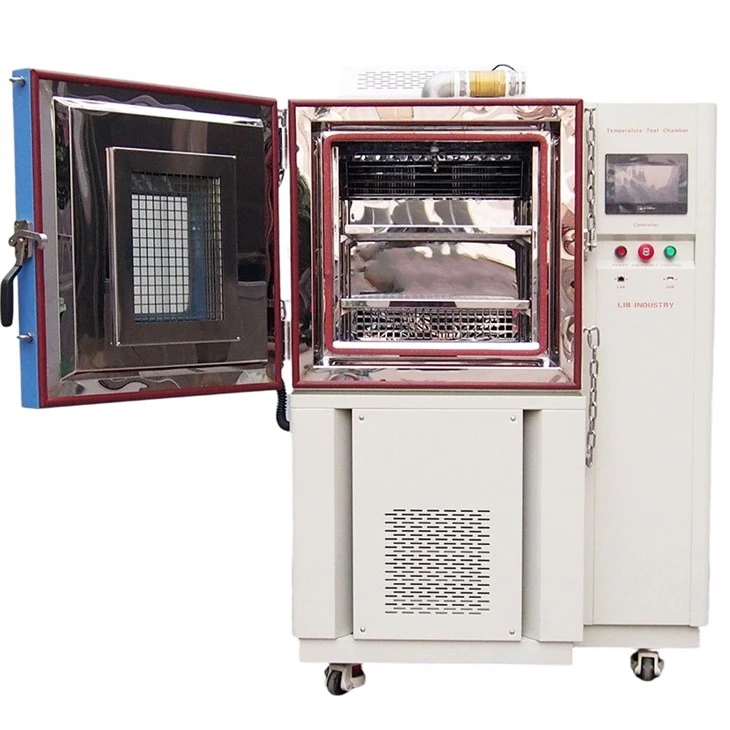

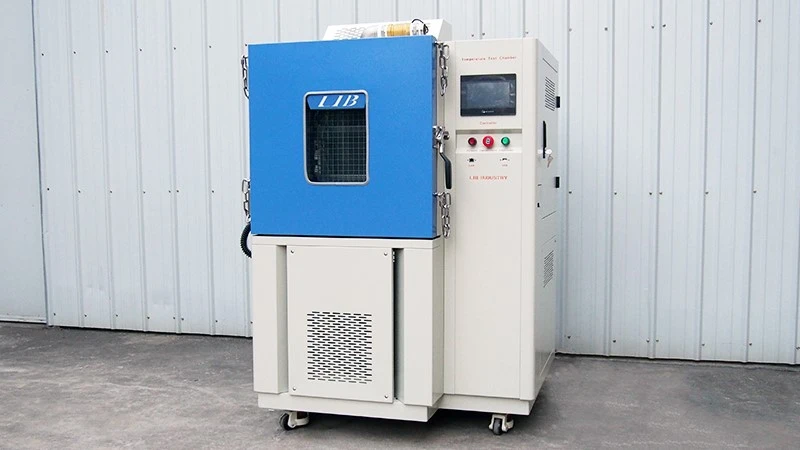

The LIB environmental battery test chamber is designed to verify the charge-discharge characteristics, cycle life and thermal runaway risk of batteries at high and low temperatures. The temperature range from -70 ° C to +170 ° C can cover most battery testing requirements, including lithium-ion batteries, lead-acid batteries, EV batteries.The environmental battery test chamber is equipped with explosion-proof system, smoke detector and spray system to ensure the safety of battery testing.
Key features
Environmental Battery Test Chamber
Temperature coverage -70℃ ~ +170 ℃, temperature change rate up to 10℃/min, accelerate battery aging, shorten the test cycle.
The chamber is 4MM high-strength A3 steel plate, with explosion-proof structure + double-layer pressure relief valve, which can withstand the instantaneous impact pressure.
Meet UL 1642 (cell), IEC 62619 (industrial battery), and other standards.
Suitable for all kinds of batteries (lithium, solid state batteries, etc.), support customized test solutions.
Ethernet remote monitoring, data recording and export.
Multi-air duct circulation ensures temperature differences in each area are extremely small.
Support upgrading the explosion-proof grade and adding additional functions such as smoke monitoring.
parameter list
Environmental Battery Test Chamber
|
Model |
TR10-1000C |
|||
|
Internal Dimension (mm) |
1000*1000*1000 |
|||
|
Overall Dimension (mm) |
2120*1200*2100 |
|||
|
Interior Volume |
1000L |
|||
| Temperature Range | C: -70℃ ～ +170 ℃ | |||
| Temperature Fluctuation |
± 0.5 ℃ |
|||
| Temperature Deviation |
± 2.0 ℃ |
|||
|
Cooling Rate |
10 ℃ / min (average) |
|||
|
Heating Rate |
10 ℃ / min (average) |
|||
Product details
Environmental Battery Test Chamber

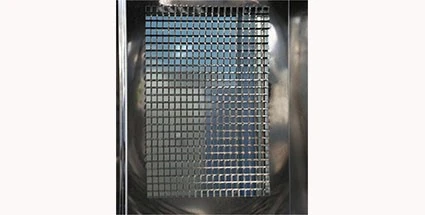

Explosion Window
Adding high-strength mesh stainless steel materials to the standard tempered glass Windows significantly enhances the pressure-bearing capacity of the observation Windows in the event of battery thermal runaway or explosion, protecting the chamber structure and personnel safety.
Explosion-Proof Chain
Metal chains are connected between the chamber door and the chamber body, enhancing mechanical strength. Prevent the chamber door from being flung open by the impact force when an internal explosion occurs, causing greater harm.
Smoke Pipe
Timely expel the smoke generated inside to the outside to prevent the smoke from accumulating in the test environment.Linked with the fan.
Smoke Detector
The smoke detector can monitor in real time whether there is smoke inside the chamber (such as battery fire, smoke, etc.), with smoke alarm linkage control, automatically start water spraying for fire extinguishing, and has high sensitivity.
The LIB environment battery test chamber is designed for lithium batteries and modules, and the LIB fast change test chamber and thermal shock test chamber can be used for other battery tests. LIB provides a one-stop solution from design, installation to commissioning, and supports flexible volume selection. The whole machine has 3-year warranty, lifetime service, and fast after-sales within 24 hours.
