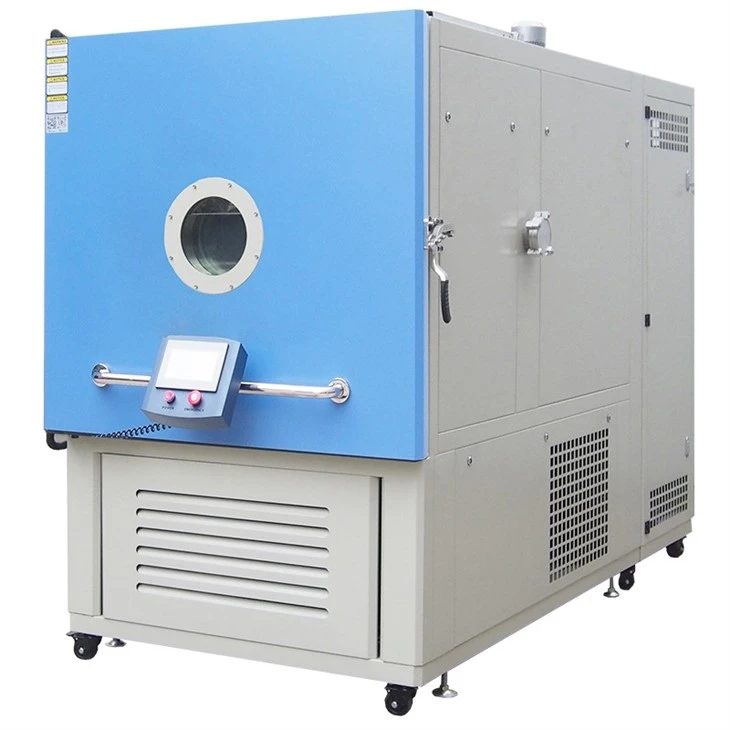

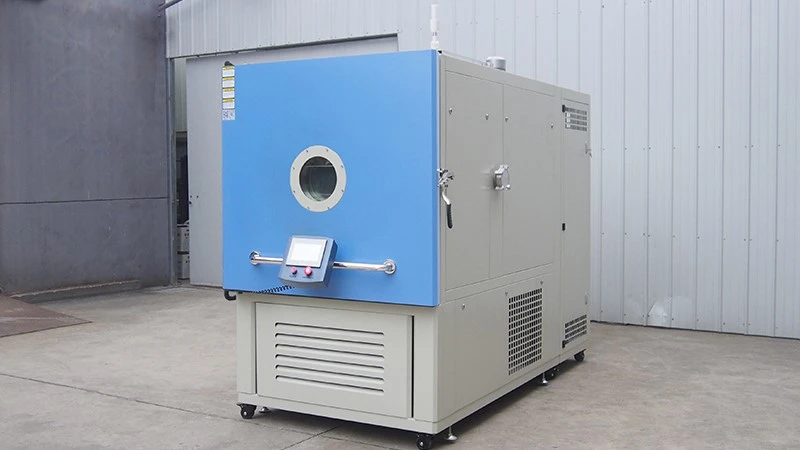

LIB temperature altitude chamber is a comprehensive environmental simulation equipment combining temperature, humidity and pressure control, which can simulate high altitude (low pressure 0.5kPa) and extreme temperature and humidity environment, and can be completed within 30 minutes from normal pressure to 0.5kpa low pressure. It is used to test the performance stability of products or materials under complex temperature, humidity and pressure conditions.
Key features
Temperature Altitude Chamber
Synchronously control the temperature under low-pressure (high-altitude) conditions and precisely simulate the high-altitude environment.
High-efficiency vacuum pump set and sealing design enable rapid simulation of high altitudes.
Equipped with low-voltage live testing function.
Fast response speed to high and low temperatures and can rapidly achieve temperature changes.
Multiple protections such as over-temperature protection, vacuum pressure relief protection and power-off recovery.
Flexible workroom capacity selection and interface configuration.
Meet military standards/aviation test standards, such as MIL-STD-810G.
parameter list
Temperature Altitude Chamber
|
Model |
A-1000 | |||
|
Internal Dimension |
Depth 1500 width 1000 height 970mm |
|||
|
Overall Dimension |
Depth 2050 width 1300 height 2200mm |
|||
|
Interior Volume |
1000L |
|||
|
Temperature Range |
-20℃ ～ +150 ℃ -40℃ ～ +150 ℃ -60℃ ～ +150 ℃ -120℃ ～ +150 ℃ |
|||
|
Temperature Fluctuation |
≤ ±0.5℃ |
|||
|
Temperature Deviation |
≤ 2.0℃ | |||
|
Temperature Uniformity |
≤ 2.0℃ | |||
|
Humidity Range |
20%RH ~ 95%RH (can be controlled above 50Kpa) | |||
|
Cooling Rate |
2 ℃ / min | |||
|
Heating Rate |
3 ℃ / min | |||
|
Pressure Range |
Atmospheric pressure to 0.5kPa standard atmospheric pressure 101.kpa | |||
|
Pressure Deviation |
±2Kpa | |||
|
Pressure Reduction Time |
Atmospheric pressure to 0.5kpa ≤30min | |||
|
Pressure Housing |
manganese steel, surface spray treatment | |||
|
Other outer wall materials |
doublesided galvanized steel plate, surface spray treatment | |||
| Vacuum system | vacuum pump, exhaust regulating valve, charging regulating valve | |||
Product details
Temperature Altitude Chamber

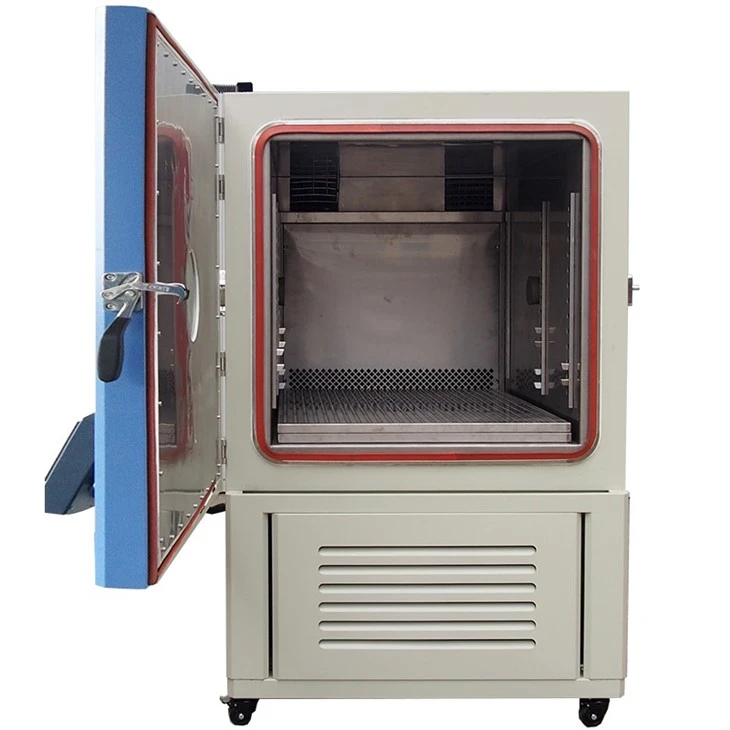

Workroom
Simulate different temperature, altitude (air pressure) and humidity conditions.
It has strong air tightness to maintain a low-pressure environment.
The internal material is SUS304 stainless steel, which is easy to clean and corrosion-resistant.
There are heating, cooling and vacuum systems connected.

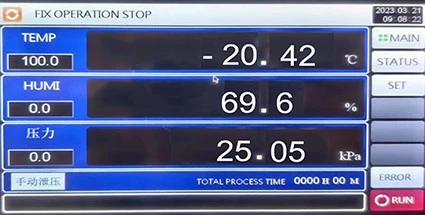

Controller
Control and display parameters such as temperature, pressure and humidity, and support program editing, remote monitoring and data recording
It adopts a touch screen, equipped with USB or network port for data export, and supports remote control and alarm functions.

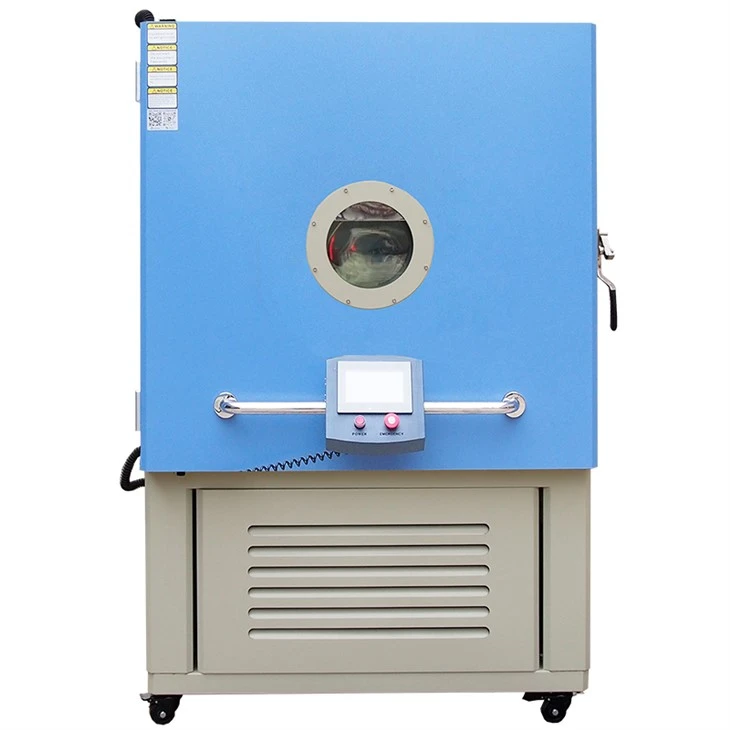

Observation window
A transparent window installed on the chamber door for convenient observation of the internal test status.
Multi-layer tempered glass or heated glass to prevent condensation and frosting.
The size can be customized.

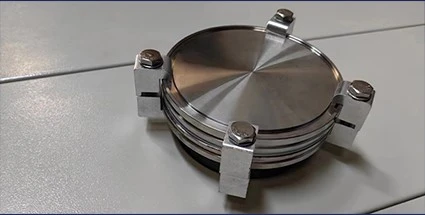

Cable hole
The test piece can be powered on to restore its working condition under low air pressure.
The standard diameter is φ50mm (customizable diameter)Replaceable rubber sealing rings around to prevent air pressure leakage.Multiple holes can be customized.
LIB temperature altitude chamber integrates high-precision temperature control, rapid vacuuming and live low-voltage testing, meeting the high-standard testing requirements of aviation, military industry, electronics and other fields. 3 years warranty , with lifetime technical support and 7/24 after-sales response, making every test efficient and reassuring.
