Unlike conventional temperature humidity chambers that focus on rapid transitions, this equipment prioritizes control persistence, data repeatability, and operational reliability over extended timelines, making it especially suitable for regulatory-driven and comparative studies.
Engineered by LIB industry, the system supports uninterrupted operation under tightly regulated conditions, ensuring that temperature and humidity remain within defined tolerances throughout the entire test window. This capability is essential for evaluating shelf-life behavior, formulation stability, material aging trends, and long-term performance drift where even minor environmental deviations can compromise test validity.
With a continuous control range spanning -70℃ to +150℃ and 20%RH to 98%RH, the stability chamber temperature and humidity enables laboratories to simulate realistic storage, transportation, and service environments with a high degree of confidence and traceability.
Why Choose LIB industry Stability Chamber Temperature and Humidity
Long-Term Control Reliability
The stability chamber maintains temperature fluctuation within ±0.5℃ and humidity deviation within ±2.5%RH during extended test periods. This stability ensures repeatable results for comparative testing and regulatory documentation.
Balanced Heating and Cooling for Stability Programs
A controlled 3℃/min heating rate and 1℃/min cooling rate reduce mechanical stress on components while maintaining sufficient responsiveness, supporting uninterrupted multi-week or multi-month stability studies.
High-Efficiency Thermal Insulation Structure
High-density polyurethane foam insulation significantly reduces thermal exchange with the external environment, improving temperature uniformity and lowering energy consumption during long-term operation.
Intelligent Refrigeration and Energy Management
The intelligent control system dynamically adjusts compressor operation to match real-time load conditions, improving efficiency while extending the service life of critical refrigeration components.
Expandable for Compound Environmental Testing
The stability chamber temperature and humidity supports integration with vibration tables and extended test modules, enabling combined environmental simulations without compromising core stability performance.
Parameter List of Stability Chamber Temperature and Humidity
|
Model |
TH-100 |
TH-225 |
TH-800 | TH-1000 |
|
Internal Dimension (mm) |
320*350*450 |
400*400*500 |
700*800*900 |
1000*1000*1000 |
|
Overall Dimension (mm) |
820*1160*950 |
900*1210*1000 |
1200*1340*2020 |
1500*1540*2140 |
|
Interior Volume |
100L |
225L |
800L | 1000L |
|
Heat load |
1000W |
|||
|
Temperature Range |
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ |
|||
|
Temperature Fluctuation |
± 0.5 ℃ |
|||
|
Temperature Deviation |
± 2.0 ℃ |
|||
|
Humidity Range |
20% ~ 98% RH |
|||
|
Humidity Deviation |
± 2.5% RH |
|||
|
Cooling Rate |
1 ℃ / min |
|||
|
Heating Rate |
3 ℃ / min |
|||
|

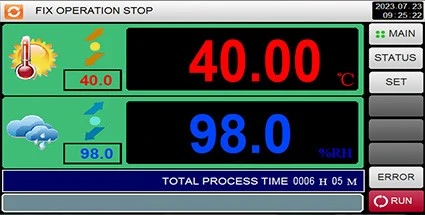

Controller |
Programmable color LCD touch screen controller,PC Link, LAN interface | |||
|
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV A-class | |||
|
Cooling system |
Mechanical compression refrigeration system,environmentally friendly refrigerant. | |||
|
Refrigerating unit |
French TECUMSEH compressor | |||
|
Water supply system |
Automatic water supply; Water purification system | |||
Highlights of Stability Chamber Temperature and Humidity

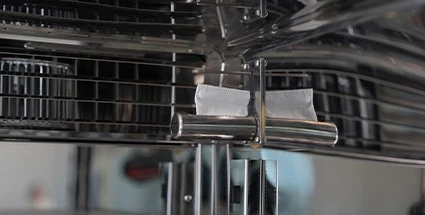

Customizable Sample Shelves
The chamber is equipped with adjustable sample shelves (standard two layers), each with a 50 kg load capacity. Shelf height, quantity, and load rating can be customized to accommodate different sample sizes and weights, ensuring flexible test configurations.
High-Precision Temperature & Humidity Sensors
Integrated sensors continuously monitor internal conditions and provide real-time feedback to the controller, maintaining accurate control and ensuring traceable, reliable test results.
PC Link and Centralized Control
Multiple stability chambers temperature and humidity units can be connected to a single PC, allowing centralized monitoring, synchronized operation, and improved laboratory efficiency.
USB & Network Data Interface
USB and Ethernet interfaces support data export, remote monitoring, and long-term data storage. The system can be connected to computers, printers, or IoT platforms for seamless data management.120 programme 99+ steps.
More Than a Chamber: Customized Solutions with End-to-End Support
- LIB industry provides one-stop environmental testing solutions beyond standard models. The temperature and humidity range, internal workspace dimensions, cable ports, and access holes can all be customized according to actual test requirements.
- From project consultation and chamber configuration to installation guidance and long-term technical support, our service team ensures a smooth testing experience throughout the entire equipment lifecycle.
Expert Tips for Stability Chamber Temperature and Humidity
Q1: Is the temperature humidity stability chamber suitable for continuous long-term operation?
+
-
Yes. The system is designed for extended stability tests, with durable components and precise control to support continuous operation over weeks or months.
Q2: Can temperature and humidity be programmed in multi-step cycles?
+
-
The programmable controller supports multi-step and multi-cycle test profiles, allowing flexible test design and automated operation.
Q3: Can the stability chamber be customized for special samples or standards?
+
-
Absolutely. LIB industry offers customized workroom sizes, shelf designs, cable holes, and performance configurations to match specific test standards or DUT requirements.
Upgrade Your Stability Testing Capability
Upgrade your stability testing capability with a reliable, precise, and customizable stability chamber temperature and humidity from LIB industry. Contact us today sales@libtestchamber.com to receive a tailored configuration, technical consultation, and a preliminary quotation within 1–3 hours. Enjoy professional after-sales support, custom solutions, and long-term service assurance for your testing success.
