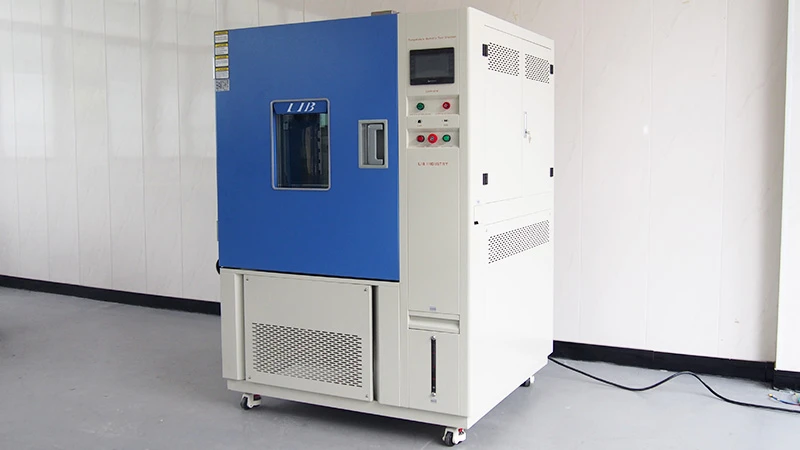

The LIB humidity and temperature controlled chamber accurately simulates an extremely wide range of temperature and humidity environments, ensuring that products can withstand extreme weather conditions and are used to test the reliability and performance of electronic components, automotive parts, medical devices, aerospace equipment and industrial materials.
LIB offers a variety of standard models of humidity and temperature controlled chamber and various customization options.
Key features
Humidity And Temperature Controlled Chamber
Wide range, high precision, accuracy: ±0.5°C (temperature),± 2.5%RH (humidity).
CE, RoHS certification ,ISO 9001 quality management system.
Comply with IEC 60068, MIL-STD-810 standard.
Workroom is made of SUS304 stainless steel, anti-corrosion and anti-rust.
Workroom door convex design, equipped with double silicone sealing strip, reliable sealing.
Multi-language touch screen, real-time temperature and humidity monitoring, PC/APP remote control.
Cascade refrigeration, water cooling/air cooling and other configurations are available.
A variety of safety devices ensure test and personnel safety.
parameter list
Humidity And Temperature Controlled Chamber
|
Model |
TH-100 |
TH-225 |
TH-800 | TH-1000 |
|
Internal Dimension (mm) |
320*350*450 |
400*400*500 |
700*800*900 |
1000*1000*1000 |
|
Overall Dimension (mm) |
820*1160*950 |
900*1210*1000 |
1200*1340*2020 |
1500*1540*2140 |
|
Interior Volume |
100L |
225L |
800L | 1000L |
|
Heat load |
1000W |
|||
|
Temperature Range |
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ |
|||
|
Temperature Fluctuation |
± 0.5 ℃ |
|||
|
Temperature Deviation |
± 2.0 ℃ |
|||
|
Humidity Range |
20% ~ 98% RH |
|||
|
Humidity Deviation |
± 2.5% RH |
|||
|
Cooling Rate |
1 ℃ / min |
|||
|
Heating Rate |
3 ℃ / min |
|||
|
Controller |
Programmable color LCD touch screen controller,PC Link, LAN interface | |||
|
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV A-class | |||
|
Cooling system |
Mechanical compression refrigeration system,environmentally friendly refrigerant. | |||
|
Refrigerating unit |
French TECUMSEH compressor | |||
|
Water supply system |
Automatic water supply; Water purification system | |||
Product details
Humidity And Temperature Controlled Chamber

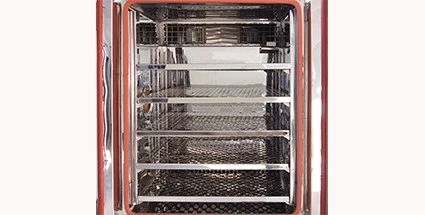

Sample shelf
Standard double-layer perforated stainless steel sample holder, bearing 50KG, can also be multi-layer adjustable stainless steel tray, suitable for different sizes of samples, easy to clean and maintain.
Automatic water inlet
The automatic water inlet eliminates the need for frequent refilling and ensures that the chamber automatically detects the water level to supply water automatically to improve testing efficiency.
Castor
Four castors for easy movement and braking of the tester in the lab.Each caster has a standard load-bearing capacity of 420 KGs.
USB interface
USB interface for real-time storage of test data can efficiently export CSV and other formats of the report, making it easy for you to analyze the process and results of the test
LIB promises: All products enjoy a three-year warranty, lifetime service, 24/7 online technical support. LIB supports custom configuration of humidity and temperature controlled chamber: dimensions, controllers, performance parameters, etc.
