The PV module test chamber is an environmental test equipment specially used to test the performance and durability of photovoltaic modules (solar panels) in different temperature and humidity environments, simulating the temperature fluctuations and humidity changes that photovoltaic modules may encounter in natural climates, to ensure that products meet the requirements of hot and humid, high and low temperature cycle, and humidity resistance.
Key features

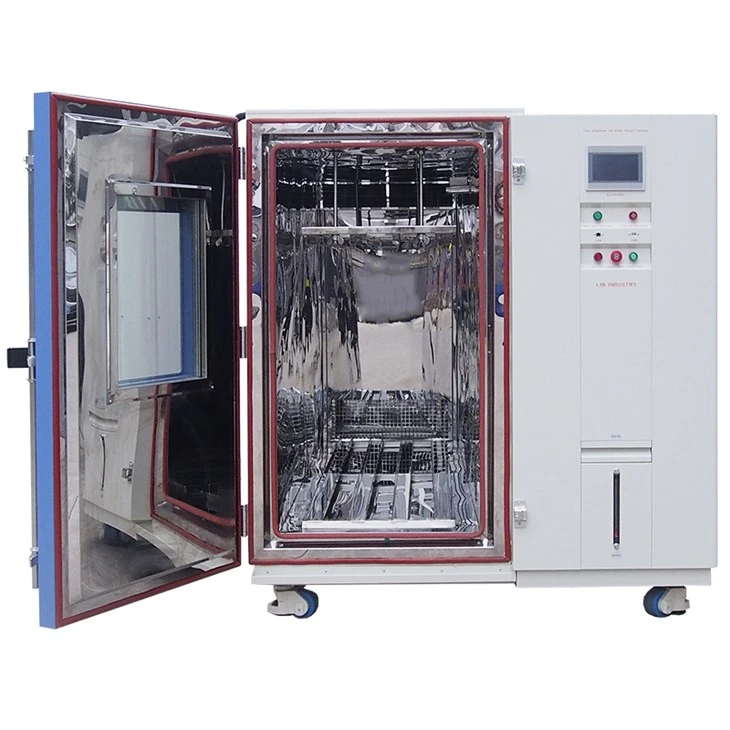

PV Module Test Chamber
Temperature and humidity in large workroom are stable.
PID control algorithm and high-precision temperature and humidity sensor ensure accurate and repeatable data.
Large size test space, support multiple PV modules at the same time testing.
The controller can be programmed to provide faster cycle test efficiency and shorten the test cycle.
Rapid heating/cooling speed: up to 3.4°C/min (customized).
Overtemperature protection, compressor delay start, water shortage alarm, humidity dry burning protection, etc.
parameter list

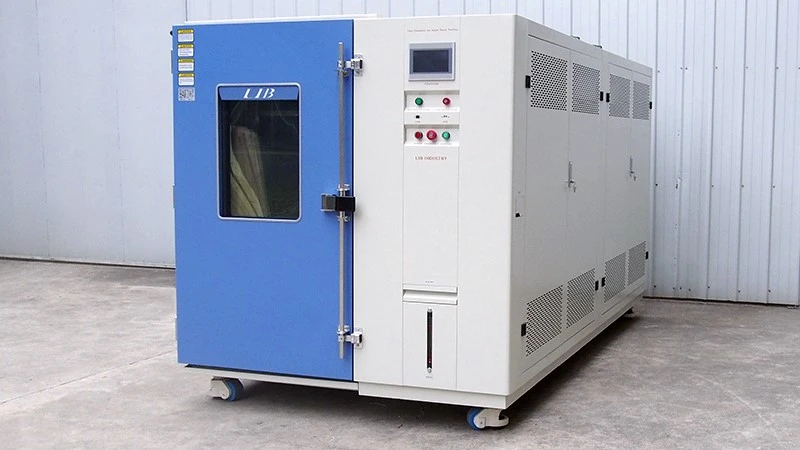

PV Module Test Chamber
|
Model |
PV-04 |
||
|
Internal Dimension (mm) |
1300*700*1350 |
||
|
Overall Dimension (mm) |
1900*1100*1750 |
||
|
Interior Volume |
1220L |
||
|
Parameter |
Temperature Range |
-60℃ ～ +100 ℃ |
|
|
Temperature Fluctuation |
± 0.5 ℃ |
||
|
Temperature Deviation |
± 2.0 ℃ |
||
|
Humidity Range |
20% ~ 98% RH |
||
|
Humidity Deviation |
± 2.5% RH |
||
|
Temperature Change Rate |
1 ~ 3.4℃ / Min |
||
|
Panel Size |
1M*2M |
||
|
Panel Capacity |
4 / 6 / 8 / 10 / 12 Pieces |
||
|
Controller |
Programmable color LCD touch screen controller |
||
|
Ethernet connection, PC Link, USB |
|||
|
Humidity |
Water supply system |
Automatic water supply,Water purification system |
|
|
Humidifier |
External isolation, stainless steel surface evaporation humidifier |
||
Product details
PV Module Test Chamber

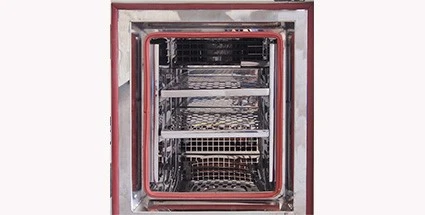

Workroom
Capacity 50L, 80L optional.
SUS304 material, high temperature resistance, high humidity, can withstand long-term temperature changes and humidity changes.
Temperature and Humidity Comparison
Ultra-wide temperature and humidity range,PT-100 Class A sensor, accuracy at 0.001 degrees.
A wet gauze and a real-time temperature, converted by temperature difference, showing real-time relative humidity.

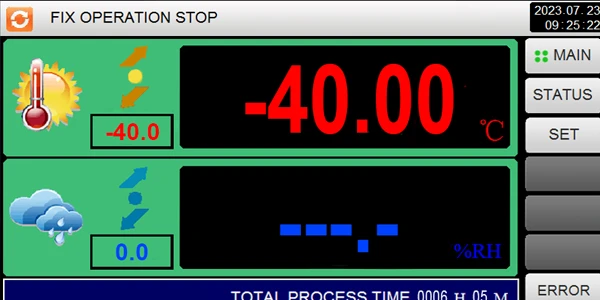

PLC Controller
Set and display the current temperature and humidity value for single/multi-temperature and humidity test, and automatically adjust according to the set program.
Multiple language modes are available.
Castor
Easy to move and fix the chamber and adapt to the flexible placement of the laboratory desktop or small workbench.
Quiet, non-slip, high load bearing.
Consult LIB today for a tailored PV module test chamber solution, detailed specifications and a quote.3-year warranty, lifetime service and multiple global service points ensure your testing is worry-free.
