The LIB xenon weatherometer simulates natural weathering conditions, including sunlight (xenon arc radiation), temperature, humidity and rainfall. It assesses the durability of materials such as plastics, coatings, textiles, automotive parts and packaging under accelerated aging, helping manufacturers identify color fading, surface degradation or changes in mechanical properties.
Key features

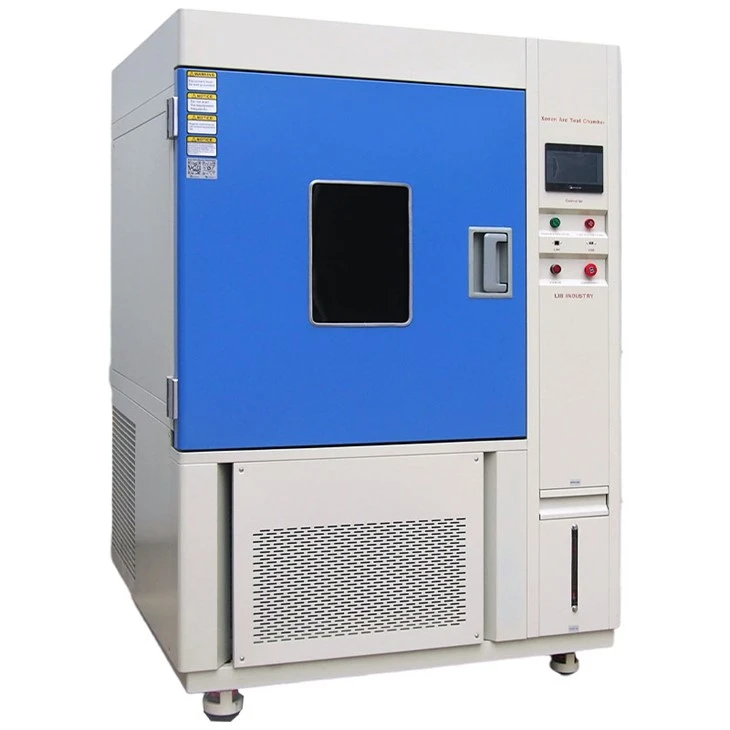

Xenon Weatherometer
Complete solar spectrum (UV+ visible light + infrared), closest to natural sunlight
Integrate multiple environmental variables such as light, temperature, humidity and water spray circulation
The light intensity is controllable.Typical control points 340nm: 0.35-1.10 W/m²
In combination with the blackboard temperature sensor, it achieves long-term test stability
Built-in pure water filtration system and an automatic water spraying function, which can simulate the scouring of rainwater
Continuous light (dry) and alternating light + rain (wet) testing to simulate real climate
Color touch screen, supporting program editing, real-time data viewing, and data export
parameter list
Xenon Weatherometer
|
Model |
XL-S-750 |
XL-S-500 |
||
|
Internal Dimension (mM) |
950*950*850 mm |
500*600*700 mm |
||
|
Overall Dimension (mM) |
1400*1400*1950 mm |
1000*1140*1920 mm |
||
|
Specimen Holder Size(mm) |
95*200 |
/ | ||
|
Specimen Capacity |
42pcs |
/ | ||
|
Chamber Type |
Rotating Holder |
Flat shelf |
||
|
Irradiation Source |
1 piece of 4500w water-cooled xenon arc lamp |
|||
Irradiance Range |
35~150 W/㎡ |
|||
Bandwidth Measurement |
300nm~400nm (340nm or 420nm) |
|||
Chamber Temperature Range |
Ambient ～ 100 ℃ ±2℃ |
|||
Black Panel Temperature |
BPT 35 ～ 85 ℃ ±2℃ |
|||
Humidity Range |
50% ~ 98% RH |
|||
Humidity Deviation |
± 5% RH |
|||
Water Spray Cycle |
1~9999H59M (Adjustable) |
|||
Water supply system |
Automatic water supply, Water purification system |
|||
Radiometer |
UV Radiometer, Tolerance: ±5% |
|||
| Cooling System | Mechanical compression refrigeration system | |||
Product details
Xenon Weatherometer

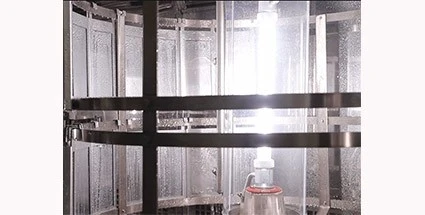

Water-cooled xenon lamp
Water-cooled xenon arc lamps fulfill the environmental concept of water conservation due to the powerful automated water circulation system.
Light filters
Light filters ensure the reliability of the data due to the strong stabilization of light, avoiding interference with stray light and improving the accuracy of the test.

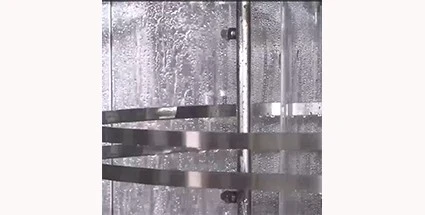

Spray nozzle
Stainless steel nozzles are distributed on each layer of the sample holder to simulate real rain and condensation,to simulate natural wet and dry cycles.

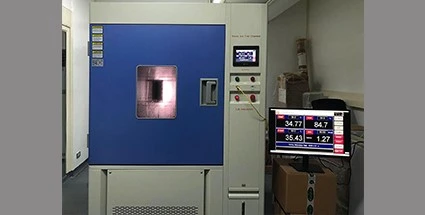

PC link
Multilingual interface ensures global availability. USB and cloud storage test report (PDF/Excel), including irradiance, temperature, humidity curves. The controller has automatic error detection and audible alarm.
LIB provides you with tailor-made xenon weatherometer for your material testing needs. LIB offers end-to-end services, from device selection to compliance certification, to ensure that your products can withstand the weathering of the real world.
