The LIB xenon lamp weathering test chamber aims to simulate the effects of sunlight, rain and humidity, allowing you to test the durability and weather resistance of various materials, coatings, plastics and products. By exposing the samples to accelerated weathering conditions, you can predict their performance and lifespan in real outdoor environments, thereby ensuring product quality and reliability.
Key features
Xenon Lamp Weathering Test Chamber
Xenon lamp irradiance: 30-150W/㎡ (adjustable), stable light output.
Complies with international standards such as ASTM G155, ISO 16474, SAE J2527 and IEC 60068
Remote real-time monitoring, parameter adjustment and alarm notification via Wi-Fi or Ethernet connection
High-quality SUS304 stainless steel, with excellent corrosion resistance and durability.
Multiple test modes are available to simulate various weather conditions, including sunlight, rainfall, humidity cycles, etc.
Built-in water circulation system and large-capacity water tank reduce water consumption and ensure continuous operation.
For comprehensive sunlight,UV and weathering testing.
parameter list
Xenon Lamp Weathering Test Chamber
|
Model |
XL-S-750 |
XL-S-500 |
||
|
Internal Dimension (mM) |
950*950*850 mm |
500*600*700 mm |
||
|
Overall Dimension (mM) |
1400*1400*1950 mm |
1000*1140*1920 mm |
||
|
Specimen Holder Size(mm) |
95*200 |
/ | ||
|
Specimen Capacity |
42pcs |
/ | ||
|
Chamber Type |
Rotating Holder |
Flat shelf |
||
|
Irradiation Source |
1 piece of 4500w water-cooled xenon arc lamp |
|||
Irradiance Range |
35~150 W/㎡ |
|||
Bandwidth Measurement |
300nm~400nm (340nm or 420nm) |
|||
Chamber Temperature Range |
Ambient ～ 100 ℃ ±2℃ |
|||
Black Panel Temperature |
BPT 35 ～ 85 ℃ ±2℃ |
|||
Humidity Range |
50% ~ 98% RH |
|||
Humidity Deviation |
± 5% RH |
|||
Water Spray Cycle |
1~9999H59M (Adjustable) |
|||
Water supply system |
Automatic water supply, Water purification system |
|||
Radiometer |
UV Radiometer, Tolerance: ±5% |
|||
| Cooling System | Mechanical compression refrigeration system | |||
Product details
Xenon Lamp Weathering Test Chamber

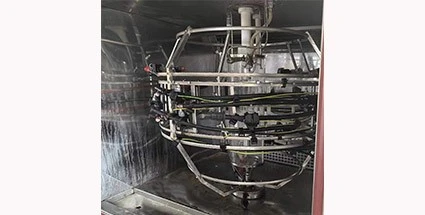

Rotating sample holder
The three-layer rotating drum sample holder with adjustable speed ensures that the sample receives light evenly, and can carry 42 samples for testing meantime.Except for the fixed-size test pieces, the illustration shows the cable test.

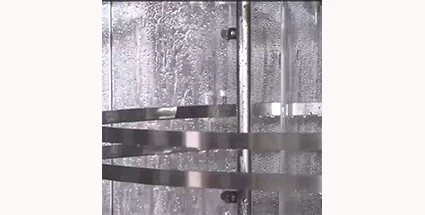

Spray nozzle
The humidity control range is 50% to 98% RH. Nozzles are respectively installed on the three-layer sample racks, allowing for the setting of periodic pure water spray/cooling cycles to simulate the effects of rainwater erosion and condensation.
Light filters
A variety of filters that meet ASTM G155 spectral requirements
Daylight options:200um~800um,260~400um
Window options:200um to 800um,260 to 400um

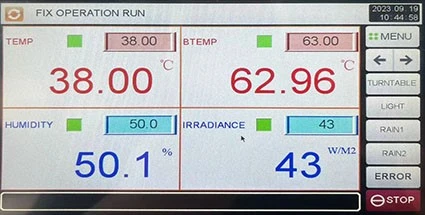

Controller
Color touch screen, supporting multi-language operation interface, simple operation. The program editing function supports setting multiple test segments (such as light/dark cycles, water spray/drying cycles). The export of test records through USB or Ethernet interfaces.
Contact us now for the technical parameters package & free trial advice.LIB can adjust the parameters according to your specific product testing requirements to meet the needs of various special on-site tests.
