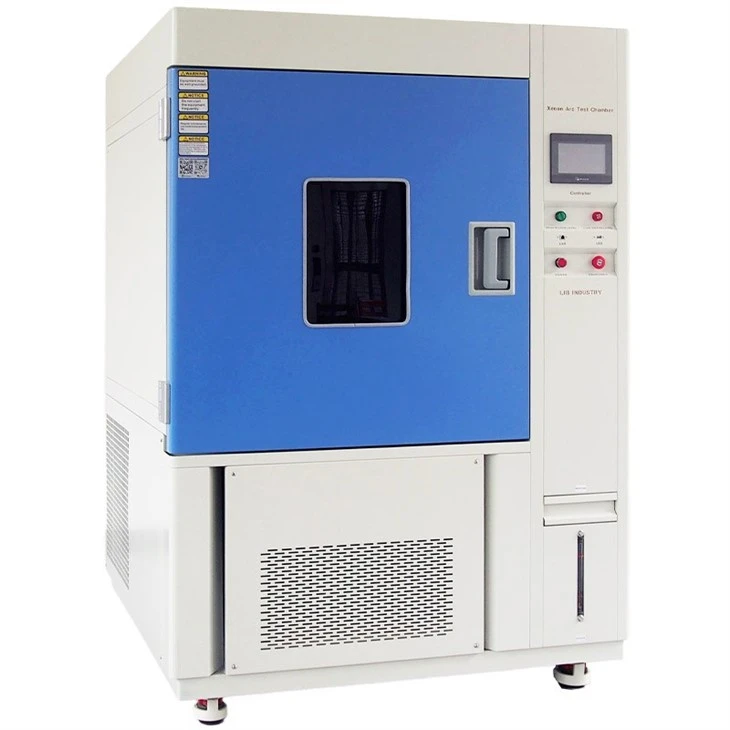

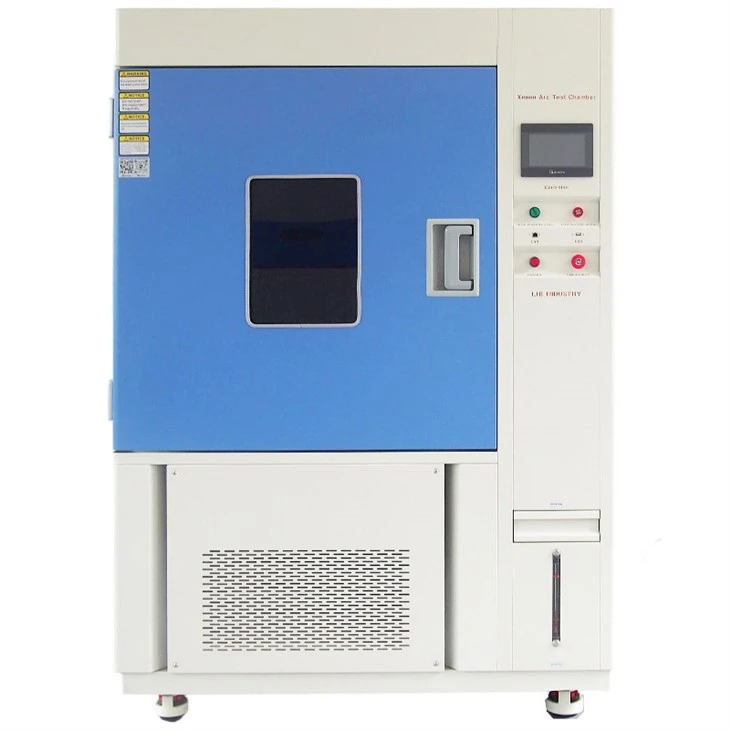

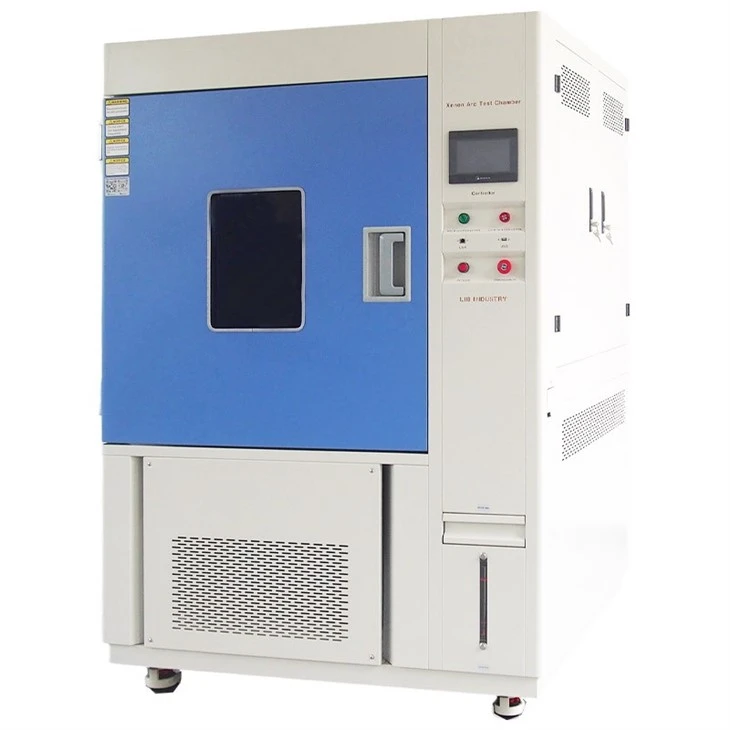

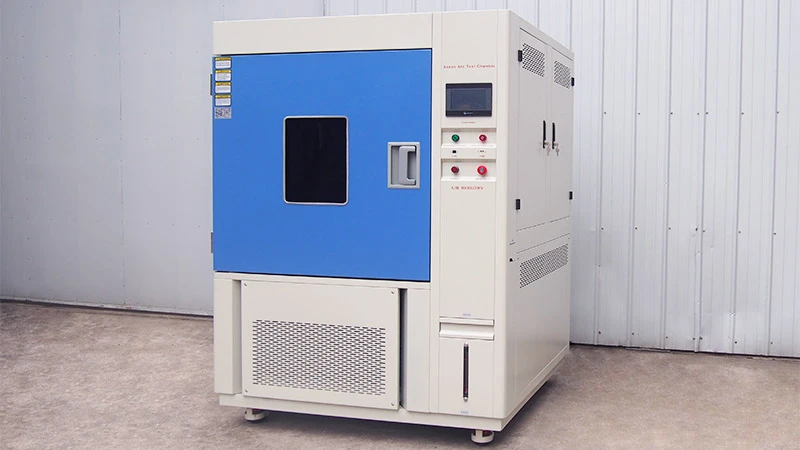

The LIB ATSM G155 test chamber simulates accelerated UV exposure and weathering conditions in accordance with ASTM G155 standards. ATSM G155 test chamber adopts xenon arc lamp to mimic natural sunlight and water spray,which assesses the durability of non-metallic materials, coatings, plastics, rubber, textiles and outdoor products by testing their resistance to UV-induced degradation such as fading, cracking and loss of mechanical properties.
Key features
ASTM G155 Test Chamber
Irradiance range 30-150w /㎡ (300-400nm) adjustable, UV uniform irradiation.
Humidity 50%-98% RH (±5% accuracy), for wet uv composite stress test.
Optional water spray cycle mode to simulate ASTM G155 Type 3 rain exposure.
Applicable to ASTM G155ASTM D4329, ISO 4892-3, SAE J2412 and EN 534 standard.
A variety of filters: daylight filters, window glass filters, extended ultraviolet filters
4500W/6500W water-cooled xenon lamp with average 1600 hours
Full spectrum radiometers (280 ~ 800 nm), ultraviolet irradiance radiometers (300~400nm,340nm,420nm) measure different spectra
SUS304 workroom material, corrosion resistance, long-term reliable.
parameter list
ASTM G155 Test Chamber
|
Model |
XL-S-750 |
XL-S-500 |
||
|
Internal Dimension (mM) |
950*950*850 mm |
500*600*700 mm |
||
|
Overall Dimension (mM) |
1400*1400*1950 mm |
1000*1140*1920 mm |
||
|
Specimen Holder Size(mm) |
95*200 |
/ | ||
|
Specimen Capacity |
42pcs |
/ | ||
|
Chamber Type |
Rotating Holder |
Flat shelf |
||
|
Irradiation Source |
1 piece of 4500w water-cooled xenon arc lamp |
|||
Irradiance Range |
35~150 W/㎡ |
|||
Bandwidth Measurement |
300nm~400nm (340nm or 420nm) |
|||
Chamber Temperature Range |
Ambient ～ 100 ℃ ±2℃ |
|||
Black Panel Temperature |
BPT 35 ～ 85 ℃ ±2℃ |
|||
Humidity Range |
50% ~ 98% RH |
|||
Humidity Deviation |
± 5% RH |
|||
Water Spray Cycle |
1~9999H59M (Adjustable) |
|||
Water supply system |
Automatic water supply, Water purification system |
|||
Radiometer |
UV Radiometer, Tolerance: ±5% |
|||
| Cooling System | Mechanical compression refrigeration system | |||
Product details
ASTM G155 Test Chamber

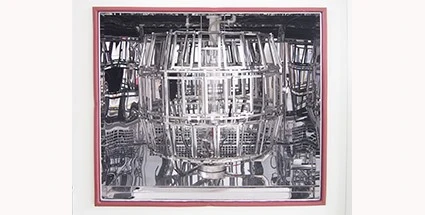

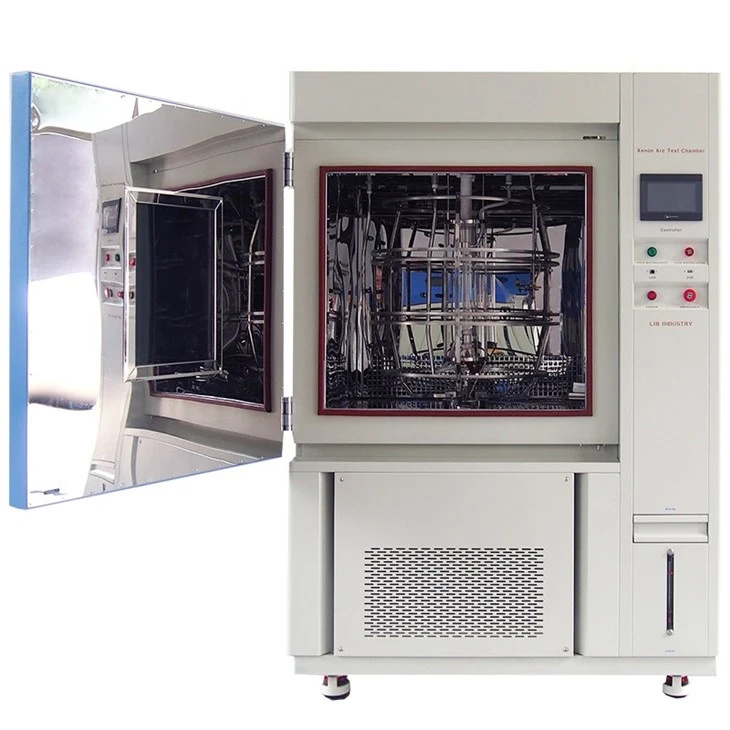

Workroom
The workroom ensures the accuracy of the test results and the longevity of use because SUS304 mirror stainless steel, specific strong resistance to high and low temperatures, rust, moisture corrosion resistance.
Radiometer
The radiometer guarantees the accuracy, stability, and reliability of light intensity testing, ensuring precise measurement of irradiation during xenon lamp testing.
Water-cooled xenon lamp
Water-cooled xenon arc lamps are heat dissipative and durable due to the high stability of the water-cooled refrigeration system preventing failures due to overheating. Xenon arc lamps reduce the hassle and cost of frequent bulb changes due to a life span of up to 1600 hours.

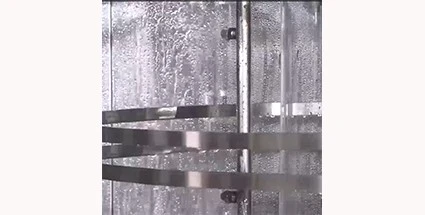

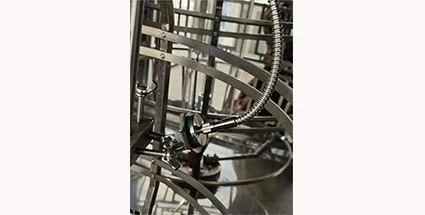

Spray nozzle
Spray nozzles allow for more realistic and reliable aging data on test pieces as the spraying of water on the test piece accelerates the aging of the sample and simulates a more realistic environment.
LIB ATSM G155 test chamber passed CE, RoHS, ISO 9001 certification; , equipped with a variety of security protection.
Get a personalized quote based on your light aging testing needs. LIB will help you optimize the equipment parameters required for your materials, ensuring accurate, repeatable results and a seamless certification process.
