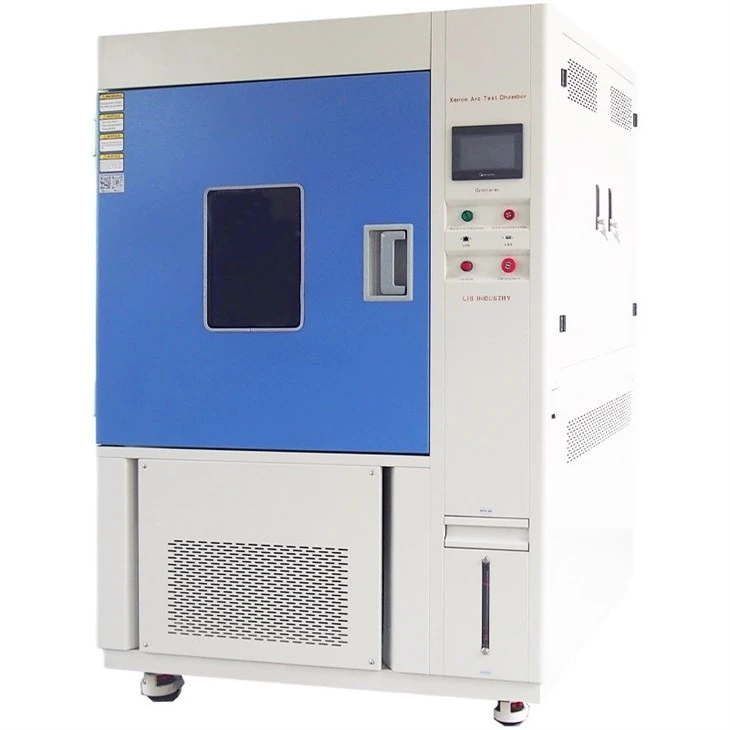

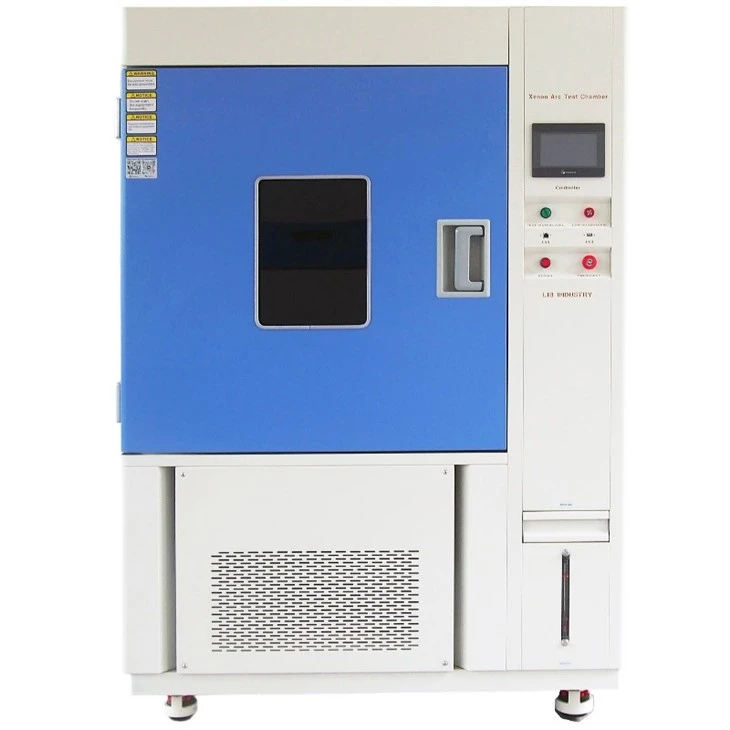

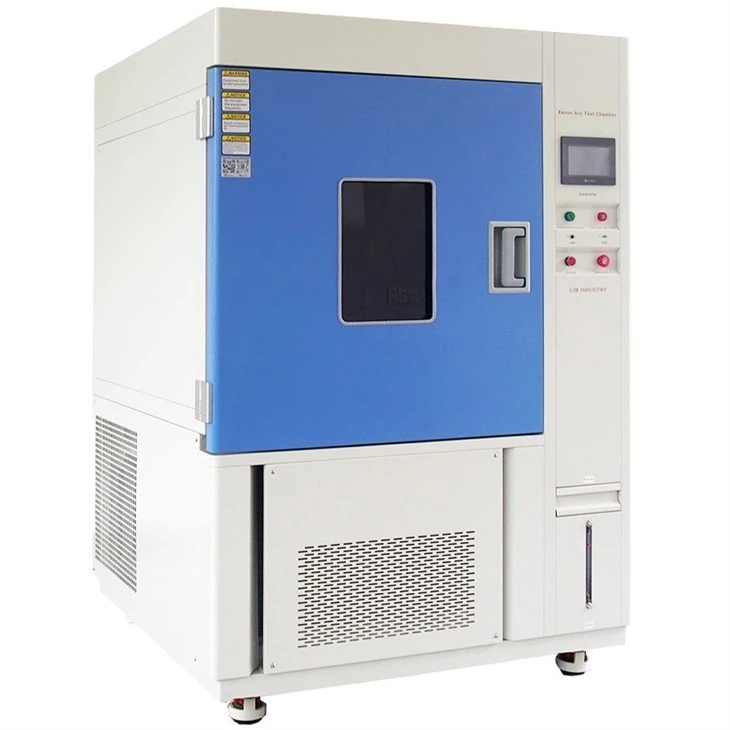

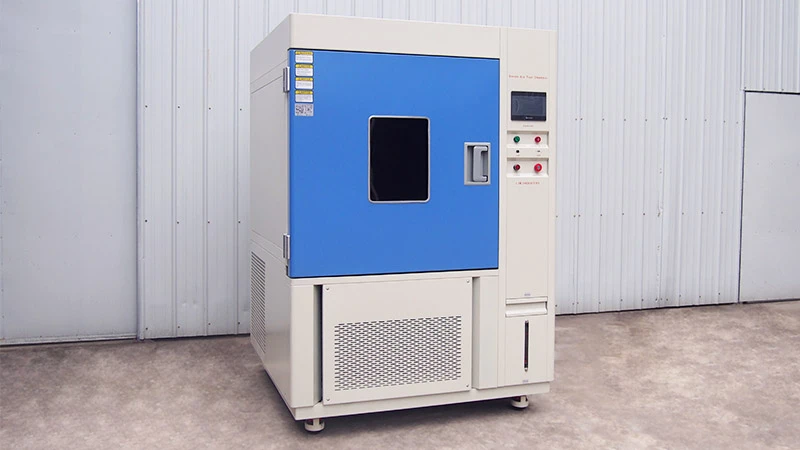

The xenon accelerated weathering tester simulates harsh outdoor environmental conditions, including sunlight (ultraviolet and visible light), rain, humidity and temperature fluctuations, to accelerate the aging process of materials. It aims to test the weather resistance of plastics, coatings, textiles, automotive parts, packaging materials and other products, strictly adhering to international standards such as ASTM G155, ISO 16474, SAE J2527 and IEC 60068.
Key features
Xenon Accelerated Weathering Tester
Simulate natural sunlight, with adjustable irradiance, and precisely control ultraviolet and visible light.
Temperature range: RT-100°C,humidity range: 50% to 98% rh.
Programmable rainfall duration and interval time simulate the real dry and wet cycle.
Equipped with daylight and ultraviolet filters to meet specific testing standards and requirements
Automatic irradiance monitoring and calibration ensure the repeatability of the test.
Three-layer rotating drum-type sample rack, capable of accommodating multiple samples.
CE, RoHS, ISO 9001 certification.
parameter list
Xenon Accelerated Weathering Tester
|
Model |
XL-S-750 |
XL-S-500 |
||
|
Internal Dimension (mM) |
950*950*850 mm |
500*600*700 mm |
||
|
Overall Dimension (mM) |
1400*1400*1950 mm |
1000*1140*1920 mm |
||
|
Specimen Holder Size(mm) |
95*200 |
/ | ||
|
Specimen Capacity |
42pcs |
/ | ||
|
Chamber Type |
Rotating Holder |
Flat shelf |
||
|
Irradiation Source |
1 piece of 4500w water-cooled xenon arc lamp |
|||
Irradiance Range |
35~150 W/㎡ |
|||
Bandwidth Measurement |
300nm~400nm (340nm or 420nm) |
|||
Chamber Temperature Range |
Ambient ～ 100 ℃ ±2℃ |
|||
Black Panel Temperature |
BPT 35 ～ 85 ℃ ±2℃ |
|||
Humidity Range |
50% ~ 98% RH |
|||
Humidity Deviation |
± 5% RH |
|||
Water Spray Cycle |
1~9999H59M (Adjustable) |
|||
Water supply system |
Automatic water supply, Water purification system |
|||
Radiometer |
UV Radiometer, Tolerance: ±5% |
|||
| Cooling System | Mechanical compression refrigeration system | |||
Product details
Xenon Accelerated Weathering Tester

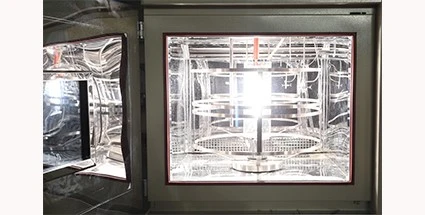

Water-cooled xenon lamp
Xenon arc lamp light purity and high stability due to the built-in quartz and external borosilicate filter to filter specific wavelengths of light or impurities and improve the lighting effect and quality.

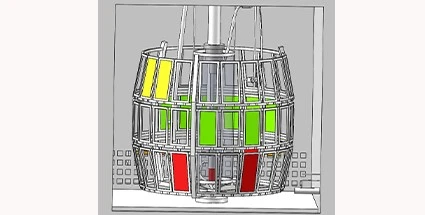

Rotating sample holder
The rotating sample holder guarantees uniform irradiance distribution by rotating around the xenon lamp and supporting up to 42 specimens, ensuring reliable and consistent test data.

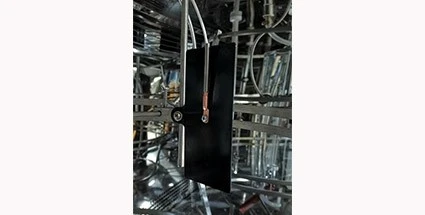

Black panel
The blackboard can effectively and realistically measure the aging rate and durability of test specimens in light and temperature environments due to its ability to capture xenon lamp light temperatures and workroom temperatures.
Automatic water inlet
To enhance testing efficiency, the automatic water inlet system supplies water to the spray, humidification, and xenon lamp cooling systems, ensuring stable light, humidity, and temperature conditions for continuous and reliable operation.
Consult LIB now: Obtain tailor-made xenon accelerated weathering solutions and detailed specifications for your industry needs. Contact us to optimize your product's tolerance to sunlight, moisture and temperature.
