The xenon arc lamp aging test chamber simulates the full spectrum of sunlight through xenon arc lamps to test the aging behavior of materials in natural environments such as long-term sun exposure, damp heat, and rain exposure, and evaluate the: light stability, weather resistance, UV resistance, fading/discoloration tendency, structural deterioration (such as cracking, powdering, embrittlement).
Key features

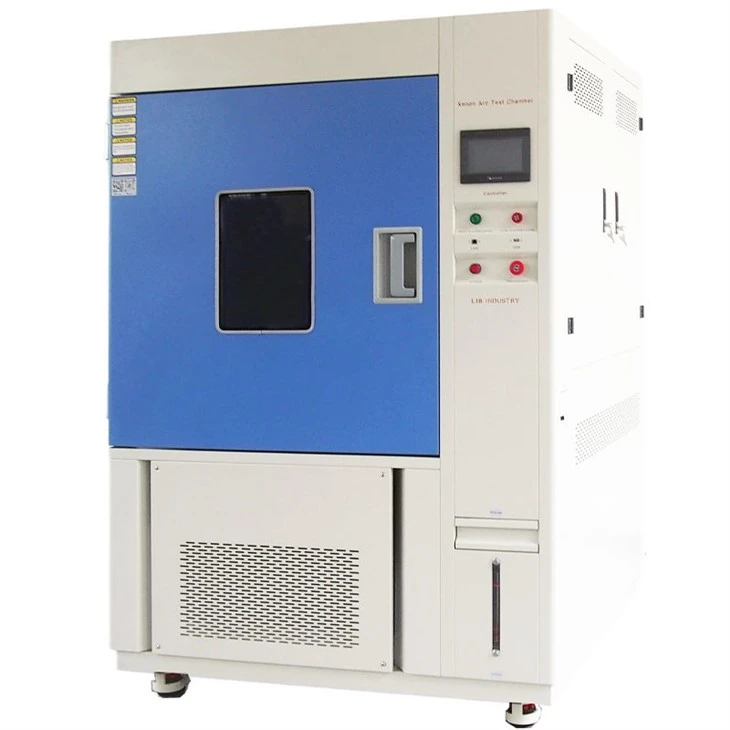

Xenon Arc Lamp Aging Test Chamber
4500W xenon lamp, full solar spectrum, irradiance adjustable: 35-150W /m²/nm (340nm or 420nm).
Precise climate control: Temperature range: 10-80℃ (±1℃) Humidity range: 10%-98%RH (±2%RH)
The sprinkler system simulates the condensation of rain and dew and is equipped with a water circulation system.
Equipped with daylight, ultraviolet filters or quv type filters to screen the required bands.
Comply with multiple international standards such as ISO 4892-2, ASTM G155, SAE J2527 / J2412, etc.
Optimized air duct ensures the uniformity of light, temperature and humidity.
Over-temperature alarm, water leakage detection, emergency shutdown,etc.
parameter list
Xenon Arc Lamp Aging Test Chamber
|
Model |
XL-S-750 |
XL-S-500 |
||
|
Internal Dimension (mM) |
950*950*850 mm |
500*600*700 mm |
||
|
Overall Dimension (mM) |
1400*1400*1950 mm |
1000*1140*1920 mm |
||
|
Specimen Holder Size(mm) |
95*200 |
/ | ||
|
Specimen Capacity |
42pcs |
/ | ||
|
Chamber Type |
Rotating Holder |
Flat shelf |
||
|
Irradiation Source |
1 piece of 4500w water-cooled xenon arc lamp |
|||
Irradiance Range |
35~150 W/㎡ |
|||
Bandwidth Measurement |
300nm~400nm (340nm or 420nm) |
|||
Chamber Temperature Range |
Ambient ～ 100 ℃ ±2℃ |
|||
Black Panel Temperature |
BPT 35 ～ 85 ℃ ±2℃ |
|||
Humidity Range |
50% ~ 98% RH |
|||
Humidity Deviation |
± 5% RH |
|||
Water Spray Cycle |
1~9999H59M (Adjustable) |
|||
Water supply system |
Automatic water supply, Water purification system |
|||
Radiometer |
UV Radiometer, Tolerance: ±5% |
|||
| Cooling System | Mechanical compression refrigeration system | |||
Product details
Xenon Arc Lamp Aging Test Chamber

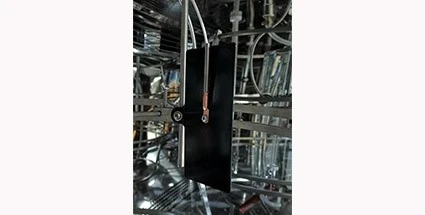

Black panel
The blackboards help the tests to easily meet the requirements of the standards by ensuring highly accurate and reproducible results, meeting industry requirements for material durability, aging, and environmental resistance.

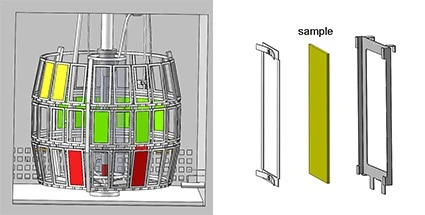

Rotating sample holder
Flexible fixtures and a spacious rotating sample holder accommodate various specimen shapes and sizes, allowing multiple or larger samples for improved testing efficiency.
Light filters
Filters can accurately measure material properties depending on the scenario and purpose due to the screening of specific wavelengths of light, such as window glass filters that simulate the spectrum of sunlight passing through window glass.

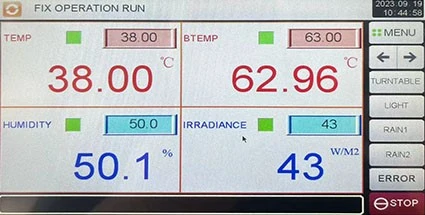

controller
The programmable controller offers user-friendly operation, allowing precise control of heating, cooling, humidification, dehumidification, and other functions based on preset parameters.
Consult LIB
LIB offers customized quotations and detailed technical specifications for xenon arc lamp aging test chamber. LIB provides end-to-end solutions, including installation, calibration and 24/7 technical support.
