The LIB xenon arc test chamber mimics the sunlight radiation, temperature and humidity conditions in the natural environment, and is used to evaluate the weatherability, color fastness and performance stability of automotive parts, plastics, rubber, coatings, textiles, electronic devices and other materials under long-term light, in strict compliance with ASTM G155, ISO 105-B02 and other international standards.
Key features
Xenon Arc Test Chamber
Full spectrum xenon arc lamp, covering 290-800nm wavelength, accurate simulation of natural light ultraviolet to infrared radiation.
Irradiation intensity adjustable: 0.3-1.5W/㎡/nm (340nm,420nm), real-time calibration.
Temperature range RT~100℃(or customizable), humidity range 50%~98%RH.
Support ASTM G155, ISO 105-B02, SAE J2527 multi-standard test mode.
Standard daylight/window glass filters can be switched to simulate direct sunlight or indoor light through glass.
The air circulation system ensures the uniformity and stability of the environmental parameters.
Built-in water circulation system, support automatic water supply.
parameter list
Xenon Arc Test Chamber
|
Model |
XL-S-750 |
|||
|
Internal Dimension (mM) |
950*950*850 mm |
|||
|
Overall Dimension (mM) |
1400*1400*1950 mm |
|||
|
Specimen Holder Size(mm) |
95*200 |
|||
|
Specimen Capacity |
42pcs |
|||
|
Chamber Type |
Rotating Holder |
|||
|
Irradiation Source |
1 piece of 4500w water-cooled xenon arc lamp |
|||
Irradiance Range |
35~150 W/㎡ |
|||
Bandwidth Measurement |
300nm~400nm (340nm or 420nm) |
|||
Chamber Temperature Range |
Ambient ～ 100 ℃ ±2℃ |
|||
Black Panel Temperature |
BPT 35 ～ 85 ℃ ±2℃ |
|||
Humidity Range |
50% ~ 98% RH |
|||
Humidity Deviation |
± 5% RH |
|||
Water Spray Cycle |
1~9999H59M (Adjustable) |
|||
Water supply system |
Automatic water supply, Water purification system |
|||
Radiometer |
UV Radiometer, Tolerance: ±5% |
|||
| Cooling System | Mechanical compression refrigeration system | |||
Product details
Xenon Arc Test Chamber

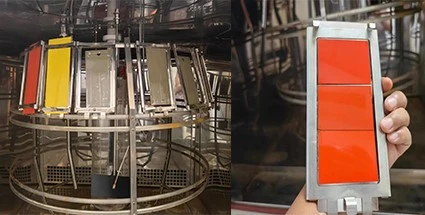

Rotating sample holder
Suitable for testing a wide range of test pieces such as cables, coatings, plastics, textile products. Meets different standards and test methods.The illustration shows the coating test.
Water-cooled xenon lamp
Long-life xenon lamp tubes (with a lifespan of up to 1,600 hours), simulates the full-spectrum radiation of sunlight. The light attenuation control system of the lamp tube automatically compensates to ensure that the irradiance remains stable within the set value range.
Automatic water inlet
By saving water, the automatic water inlet system facilitates water recycling through precise refilling and condensate recovery.The automatic water supply system provides a stable and filtered water source for the sprinkler system

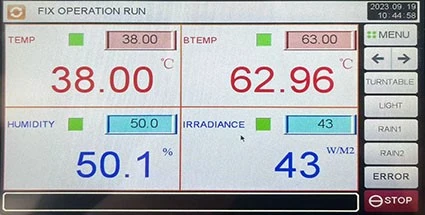

Controller
Supports multi-segment program Settings, allowing for free setting of conditions such as lighting, sprinklers, BPT, and humidity. Touch screen, multiple languages available, simple and intuitive operation. Test data can be exported via USB/ Ethernet interfaces, and it supports remote monitoring and fault alarm.
The LIB xenon arc test chamber supports personalization:size, special sample holder, salt spray composite test module, etc.LIB provides one-stop solutions from equipment selection, installation and commissioning. For more product details, please contact the LIB.
