The xenon weathering test chamber is designed to simulate the destructive effects of natural sunlight, including ultraviolet radiation, visible light and thermal stress, and combines controllable humidity and rainfall to accelerate material aging. It assesses the weather resistance of plastics, coatings, rubber, automotive parts, textiles and photovoltaic materials to ensure the durability of products in outdoor environments.
Key features
Xenon Weathering Test Chamber
Simultaneously monitor multiple key bands (such as 340 nm, 420 nm, 300-400 nm), and comprehensively track the aging behavior of materials
Automatically switch control bands to improve test adaptability and accuracy
Users can customize multiple test stages: light duration, water spray interval, humidity curve, and temperature cycle
Spray simulation can set parameters such as spray time periods and intervals to simulate natural rainfall
Corrosion-resistant nozzles, not prone to clogging and ensure smooth spraying
The large-capacity water tank is equipped with an automatic water replenishment function,suitable for long-term continuous operation
Silent fans and air ducts ensure a consistent environment
parameter list
Xenon Weathering Test Chamber
|
Model |
XL-S-750 |
|||
|
Internal Dimension (mM) |
950*950*850 mm |
|||
|
Overall Dimension (mM) |
1400*1400*1950 mm |
|||
|
Specimen Holder Size(mm) |
95*200 |
|||
|
Specimen Capacity |
42pcs |
|||
|
Chamber Type |
Rotating Holder |
|||
|
Irradiation Source |
1 piece of 4500w water-cooled xenon arc lamp |
|||
Irradiance Range |
35~150 W/㎡ |
|||
Bandwidth Measurement |
300nm~400nm (340nm or 420nm) |
|||
Chamber Temperature Range |
Ambient ～ 100 ℃ ±2℃ |
|||
Black Panel Temperature |
BPT 35 ～ 85 ℃ ±2℃ |
|||
Humidity Range |
50% ~ 98% RH |
|||
Humidity Deviation |
± 5% RH |
|||
Water Spray Cycle |
1~9999H59M (Adjustable) |
|||
Water supply system |
Automatic water supply, Water purification system |
|||
Radiometer |
UV Radiometer, Tolerance: ±5% |
|||
| Cooling System | Mechanical compression refrigeration system | |||
Product details
Xenon Weathering Test Chamber

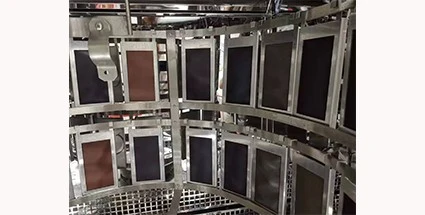

Rotating sample holder
The rotating sample holders are not only aesthetically pleasing but also stable and easy to install as they can be inserted by simply aligning test pieces.The illustration shows a batch test of leather

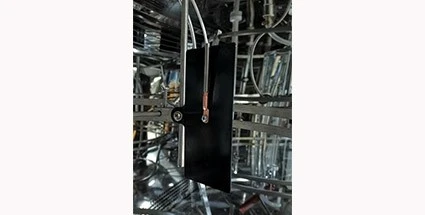

Black panel
A black standard thermometer BPT with wide temperature control range,which can reach up to 85℃. There are temperature sensors that provide real-time feedback and intelligently adjust the temperature, reducing temperature fluctuations.

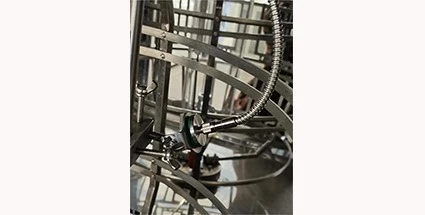

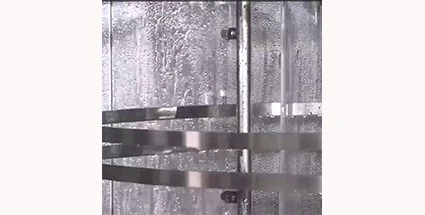

Spray nozzles
Cooling high-power xenon lamps to control water temperature to avoid overheating; Use humidifying or spraying device to adjust the humidity inside the chamber and simulate rainfall; Supporting water tank, stainless steel pump, filter system to form a closed loop cycle.
Radiometer
The xenon accelerated weathering tester is equipped with an internal irradiance sensor (optional bands include 340 nm, 420 nm, 300-400 nm) to monitor the light intensity in real time. Automatic closed-loop control of light intensity.
The LIB xenon weathering test chamber supports personalized customization of workroom size, sample loading capacity, controller functions, etc. LIB is committed to providing you with a one-stop xenon weather resistance testing solution.
