This accelerated weathering test equipment simulates the aging impact of natural environments on materials through high-precision ultraviolet light and temperature and humidity control, and is widely applicable to various industries such as plastics, rubber, coatings, and auto parts. The weathering test equipment is strictly designed in accordance with international standards (such as ASTM G154, ISO 4892-3, etc.), helping to quickly assess the weather resistance of products.
Key features
Accelerated Weathering Test Equipment
High-precision ultraviolet irradiation and temperature and humidity control to meet various testing requirements;
Automatically compensate for irradiation intensity to ensure the long-term stability of test conditions;
Intelligent control system, easy to operate and supports remote monitoring;
Modular design for easy maintenance and replacement;
SUS304 stainless steel workroom, corrosion-resistant and resistant to high humidity.
Various international standard testing methods, such as ASTM G154 and ISO 4892-3;
Different light/condensation cycles, such as 8 hours of light /4 hours of condensation.
parameter list
Accelerated Weathering Test Equipment
|
Model |
UV-SI-260 |
|||
|
Internal Dimension (mM) |
450*1170*500 |
|||
|
Overall Dimension (mM) |
610*1330*1470 |
|||
|
Specimen Holder Size(mm) |
75*150 |
|||
|
Specimen Capacity |
56pcs |
|||
|
Irradiation Source |
Fluorescent UV lamps (8) - 40 W |
|||
Irradiance control |
0.3~20 W/㎡ |
|||
Bandwidth |
290 ~ 400nm |
|||
|
Temperature Range |
Ambient ～ 90 ℃ ±2℃ |
|||
|
Black Panel Temperature (BPT) |
35 ～ 80 ℃ |
|||
|
Humidity Range |
≥95% RH | |||
|
Water Spray Cycle |
1~9999H59M (Adjustable) |
|||
|
Water supply system |
Automatic water supply, Water purification system |
|||
|
Distance of Specimen and lamp |
50mm |
|||
|
Controller |
Programmable color LCD touch screen controller, Ethernet connectio |
|||
|
Safety Device |
Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
|||
|
Interior Material |
SUS304 stainless steel |
|||
Product details
Accelerated Weathering Test Equipment

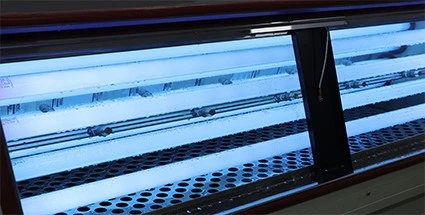

UV lamp
UVA-340,UVB-313,UVB-351,8 pcs of UV lamp are installed in chamber：8 pcs of UVA; 8 pcs of UVB;4 pcs of UVA and 4 pcs of UVB. Spectral power distribution (SPD) does not change with lamp aging, even when used for up to 5000 hours.

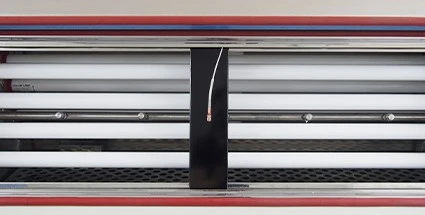

black panel
By monitoring the temperature of the black panel, the thermal aging process of the material due to sunlight exposure in the natural environment can be reproduced more accurately.
Spary nozzle
The spray system simulates the rainfall and cooling processes in nature. Combined with ultraviolet light, it can achieve cyclic aging tests. The spray cycle is adjustable and usually operates alternately with the light exposure and condensation stages.

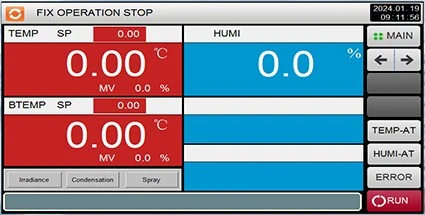

PID Controller
Color display, preset standard (ASTM, ISO) or custom cycle UV intensity, temperature, humidity and spray timing programs. Real-time mapping of UV irradiance, temperature and humidity; Test data storage and USB export.Optional Wi-Fi/LAN connection.
Accelerated weathering test equipment enhances the reliability of your products! You will obtain: advanced UV aging; Intelligent temperature and humidity control Sturdy and durable design, 3-year warranty and lifetime technical support. Contact us now to customize your exclusive testing solution.
