In today's industrial and consumer electronics landscape, the reliability and durability of electrical and electronic equipment are critical. To ensure consistent performance in harsh environments, manufacturers and testing institutions rely on international standards like IEC 60529, which defines Ingress Protection (IP) codes. These IP codes classify and rate the degree of protection provided by enclosures against the intrusion of solid particles (such as dust) and liquids (such as water).
What Is IEC 60529?
IEC 60529, published by the International Electrotechnical Commission (IEC), specifies a system for classifying the degrees of protection provided by enclosures of electrical equipment. Commonly referred to as the IP Code or Ingress Protection Rating, the standard helps end-users understand how well a device is shielded from environmental factors.
An IP code typically looks like "IP65", where:
The first digit (0–6) represents protection against solid particles, like dust and sand.
The second digit (0–9K) indicates protection against liquids, including dripping water, splashes, immersion, and high-pressure cleaning.
Water Resistance Levels:IPX1 to IPX9K
The second digit of the IP rating refers specifically to protection against water. Here's a breakdown of several key IPX levels:
|
IPX1 |
Protection against vertical dripping water. |
|
IPX2 |
Protection against dripping water when tilted up to 15°. |
|
IPX3 |
Protection against water spray at angles up to 60°. |
|
IPX4 |
Protection from water splashing from any direction. |
|
IPX5 |
Protection against low-pressure water jets. |
|
IPX6 |
Protection against high-pressure water jets. |
|
IPX7 |
Protection against immersion in water up to 1 meter for 30 minutes. |
|
IPX8 |
Protection against continuous immersion beyond 1 meter, under manufacturer-defined conditions. |
|
IPX9K |
Protection against close-range, high-pressure and high-temperature water spray - commonly used in industrial and automotive environments. |
This range ensures devices can be accurately rated and selected for environments ranging from household kitchens to automotive engine compartments.
Dust Protection: IP5X and IP6X Ratings
The first digit in the IP code represents protection against solid foreign objects such as dust:
|
IP5X |
Dust-protected. While dust is not entirely prevented from entering, it does not enter in sufficient quantity to interfere with the operation of the equipment. |
|
IP6X |
Dust-tight. Complete protection against the ingress of dust. Devices used in deserts, mines, or industrial factories where particulate matter is present require such stringent dust resistance. |
IP Rating Applications Across Industries
Understanding and applying the correct IP rating is vital for product development in several sectors:
Consumer electronics: Smartphones, wearables, and home appliances often seek IP67 or IP68 ratings.
Automotive industry: Components may require IP6K9K protection due to exposure to jet cleaning or road spray.
Industrial control systems: IP66 enclosures are typical in outdoor or dusty environments.
Military and aerospace: Require both dust and water protection, often conforming to IP68 and beyond.
LIB Test Chambers for IP Testing (IEC 60529 Compliant)
To verify whether a product meets a particular IP rating, it must undergo standardized laboratory testing. LIB, a professional manufacturer of environmental testing equipment, especially, LIB has rich experience and significant achievements in the IP dustproof and waterproof testing equipment field,offering a complete suite of IP test chambers that comply with IEC 60529 requirements.
LIB's IP Protection Test Equipment Includes:
|

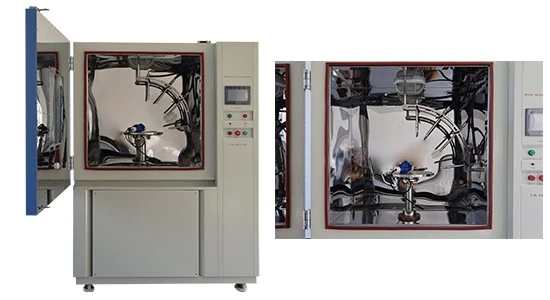

Simulates vertical dripping and tilted conditions. |
|
|
|

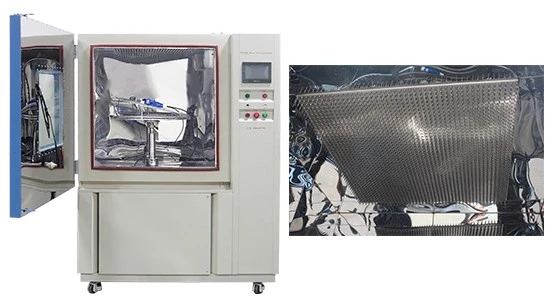

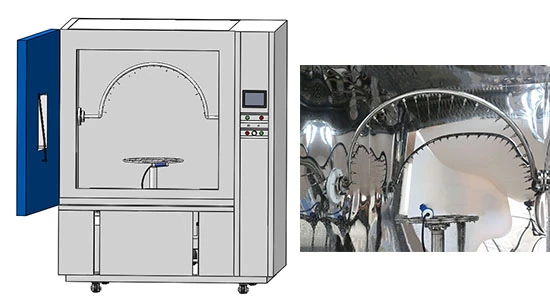

Adjustable oscillating tubes simulate rain and splashing water from various angles. |
|
|
|
IPX5 IPX6 Water Jetting Test Chamber
|

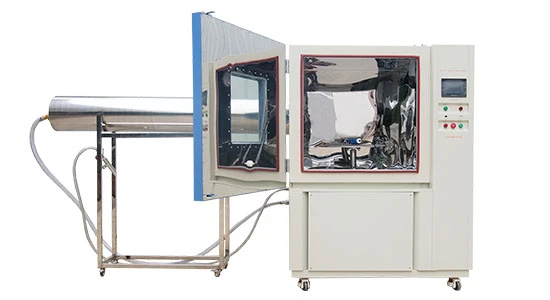

Delivers calibrated water jets for enclosure testing under pressure. |
|
|
|

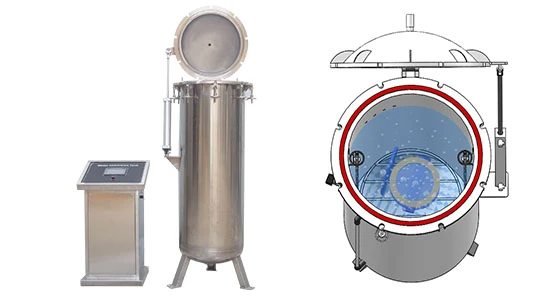

Customizable depth and duration settings to simulate immersion conditions. |
|
|
|
Designed for automotive and heavy-duty applications, offering thermal and pressure control for extreme water ingress testing. |
|
|

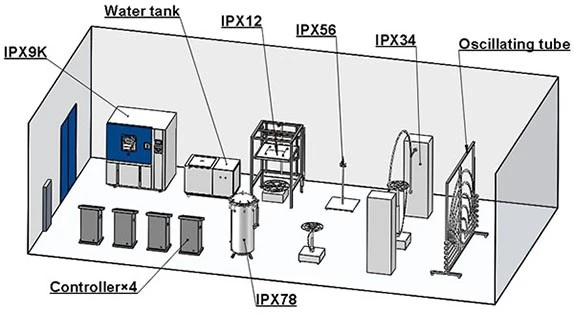

Except for IPX7 and IPX8, all other waterproof test grades can be freely combined in a single test chamber. Meanwhile, LIB can also provide waterproof testing equipment of no-housing type other than IPX7 X8. |
||
|
|

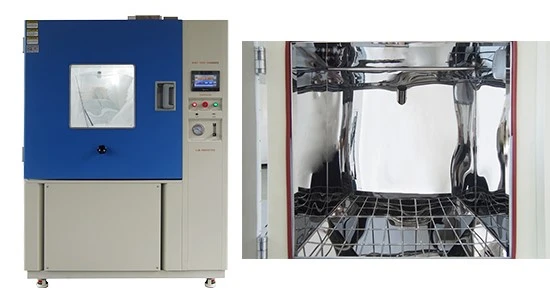

Utilize talcum powder or fine dust circulation to simulate real-world dusty environments. |
|
LIB can provide a complete set of IP dust-proof and water-proof testing equipment. At the same time, we can also customize an exclusive IP laboratory according to your experimental site.LIB chambers are engineered for precision, repeatability, and compliance with the IEC standard, making them ideal for R&D, quality control, and certification labs.
Conclusion
IP ratings under IEC 60529 are crucial indicators of a product's ability to withstand dust and water intrusion. As consumer expectations and industrial demands continue to rise, so does the importance of rigorous IP testing. With LIB's specialized test chambers, manufacturers can ensure that their products meet global standards for reliability and protection - helping them gain market trust and reduce post-sale failures.
