The weatherability testing xenon machine allows ambient to 100 °C ±2 °C control, while the black panel temperature (BPT) ranges from 35–85 °C ±2 °C, and humidity is adjustable from 50% to 98% RH, replicating complex weather cycles. Rotating and adjustable sample holders ensure uniform exposure across coatings, plastics, textiles, and automotive parts. Programmable light/dark and condensation cycles accelerate testing, revealing color fastness, cracking, fading, and material degradation in weeks instead of years. Fully compliant with ASTM G151/G155 and ISO 4892 standards, this machine provides repeatable, high-precision results, empowering engineers and designers to validate product longevity and performance under extreme environmental stress.
Key Advantages of LIB Industry Weatherability Testing Xenon Machine
Accurate Full-Spectrum Simulation: UV–VIS–IR light reproduces natural sunlight for precise accelerated weathering.
High-Stability Water-Cooled Xenon Lamp: 4500 W lamp delivers consistent irradiance, avoiding light decay fluctuations.
Adjustable Irradiance & Temperature: 35–150 W/m² irradiance, chamber temperature Ambient–100 °C, BPT 35–85 °C ±0.5 °C.
Wide Humidity Range: 50–98% RH supports testing for fibers, coatings, rubber, and polymers.
360° Rotating Sample Holders: Ensures uniform exposure and eliminates data bias across all sample surfaces.
Programmable Spray & Condensation Cycles: Simulates rainfall, dew, and condensation for realistic outdoor conditions.
Automated Closed-Loop Irradiance Control: Compensates for lamp aging to maintain consistent light intensity.
User-Friendly Control & Standards Compliance: Touchscreen interface with program templates, remote monitoring, and full compliance with ASTM, ISO, and AATCC standards.
What Are the Technical Specifications You Need to Know?
|
Model |
XL-S-750 |
XL-S-500 |
||
|
Internal Dimension (mM) |
950*950*850 mm |
500*600*700 mm |
||
|
Overall Dimension (mM) |
1400*1400*1950 mm |
1000*1140*1920 mm |
||
|
Specimen Holder Size(mm) |
95*200 |
/ | ||
|
Specimen Capacity |
42pcs |
/ | ||
|
Chamber Type |
Rotating Holder |
Flat shelf |
||
|
Irradiation Source |
1 piece of 4500w water-cooled xenon arc lamp |
|||
Irradiance Range |
35~150 W/㎡ |
|||
Bandwidth Measurement |
300nm~400nm (340nm or 420nm) |
|||
Chamber Temperature Range |
Ambient ～ 100 ℃ ±2℃ |
|||
Black Panel Temperature |
BPT 35 ～ 85 ℃ ±2℃ |
|||
Humidity Range |
50% ~ 98% RH |
|||
Humidity Deviation |
± 5% RH |
|||
Water Spray Cycle |
1~9999H59M (Adjustable) |
|||
Water supply system |
Automatic water supply, Water purification system |
|||
Radiometer |
UV Radiometer, Tolerance: ±5% |
|||
| Cooling System | Mechanical compression refrigeration system | |||
Highlights of the Weatherability Testing Xenon Machine
High-Efficiency Water-Cooled Xenon Lamp
The 4500 W xenon arc lamp uses a dedicated water-cooling circuit to remove thermal buildup at the source, maintaining a stable spectral output and preventing heat-induced drift. This design delivers consistent irradiance in the 35–150 W/m² range, providing long-term uniformity essential for comparative durability studies.
Black Panel Temperature (BPT) – True Thermal Load Indicator
The BPT reflects the combined effects of chamber hot-air convection and the heat generated directly by xenon irradiation, representing the maximum temperature a sample may experience during testing. The system maintains 35–85 °C ±0.5 °C, ensuring highly reliable assessment of materials' thermal-photonic response under accelerated aging.

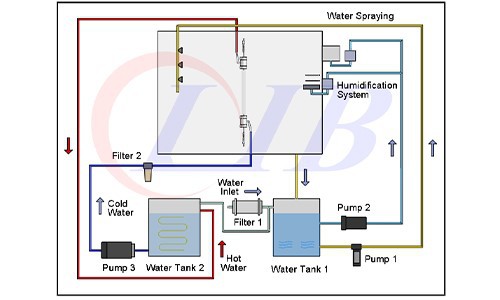

Independent Dual Waterway + Advanced Spray System
The machine features two independent waterway systems: one dedicated to lamp cooling and the other to humidity and spray functions. The spray system uses precision nozzles to reproduce rainfall, surface erosion, and thermal-shock events. By extending the environmental conditions that can be simulated, it enables combined UV, heat, moisture, and water impact testing in one device.

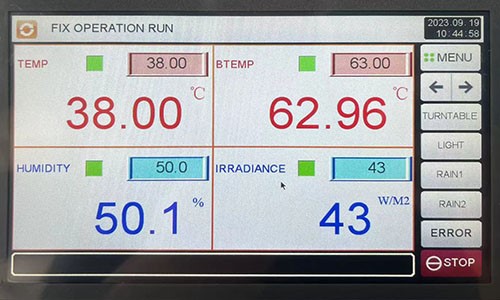

Intelligent Multi-Function Controller
The touchscreen controller integrates irradiance feedback, temperature/humidity regulation, program editing, and remote access. Users can run custom cycles or activate presets for ASTM and ISO methods. Real-time monitoring ensures the system maintains consistent exposure conditions across long-duration tests.
Essential Questions About the Weatherability Testing Xenon Machine
1. The lamp tube has a lifespan of 1600 hours. Is there a way to extend it?
2. If the lamp tube turns black, can it be cleaned and reused? How?
3. Can this weatherability testing xenon machine test coatings, and are there other options for coating durability tests?
Accelerate Product Weathering Validation with the Weatherability Testing Xenon Machine
Partner with LIB industry at sales@libtestchamber.com to configure a Weatherability Testing Xenon Machine built for precise UV–heat–humidity simulation, global standard compliance, and high-throughput durability evaluation.
Fast Production | ISO/ASTM Compatibility | Custom Engineering | 3-Year Warranty & Lifetime Support
