The G151 Xenon Arc Weathering Test Apparatus simulates real sunlight, temperature, humidity and spray conditions, which can closely replicate the daily and seasonal outdoor environments and provide accelerated aging tests for various materials including automotive coatings, plastics, textiles and electronic devices. Unlike conventional xenon fastness testers, the G151 offers precise control of UV, visible, and infrared irradiance (0.35–0.70 W/m² at 340 nm), combined with a specialized reflector and air circulation system to ensure uniform light and temperature distribution across all samples.
Key Advantages

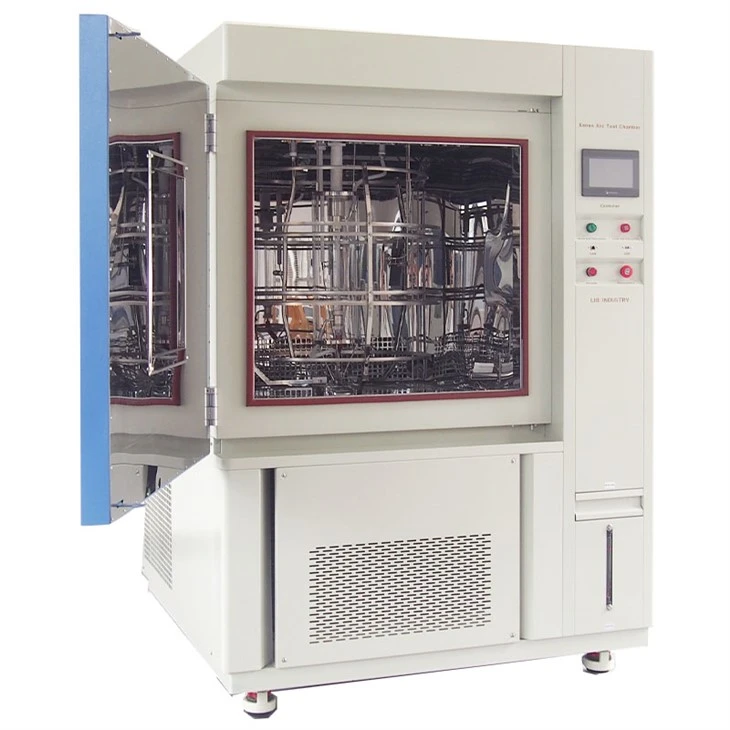

G151 Xenon Arc Weathering Test Apparatus
Precise Light Spectrum Control – Adjustable UV, visible, and infrared irradiance (0.35–0.70 W/m² at 340 nm) for highly accurate sunlight simulation.
Flexible Environmental Simulation – Supports simultaneous UV exposure, temperature cycling (Ambient ～ 100 ℃ ±2℃), humidity control (50–70% RH) and water spray cycle.
Multiple Filter Options – Equipped with a variety of optical filters, including Daylight, Window, allowing specific wavelength transmission to replicate indoor or outdoor sunlight exposure precisely.
Programmable Test Cycles – Digital interface allows day-night, seasonal, or customized accelerated weathering programs.
Low Maintenance & Durability – Water-cooled xenon lamps and robust chamber construction (SUS 304 workroom)reduce downtime and extend equipment life.
Standards Compliance – Fully compliant with ASTM G155, ISO 4892, and SAE J1960, ensuring global testing credibility.
Customizable Testing Protocols – Flexible enough to support non-standard or specialized material weathering tests.
Technical Specifications
G151 Xenon Arc Weathering Test Apparatus
|
Model |
XL-S-500 |
|
Internal Dimension (mm) |
500*600*700 mm |
|
Overall Dimension (mm) |
1000*2450*1990 mm |
|
Sample holder |
Adjustable speed, 1r/min |
|
Chamber Type |
Rotating Holder |
|
Irradiation Source |
1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter |
|
Irradiance Range |
150W/㎡ |
|
Bandwidth Measurement |
300~400nm |
|
Chamber Temperature Range |
Ambient ～ 100 ℃ ±2℃ |
|
Black Panel Temperature |
BPT 35 ～ 85 ℃ ±2℃ |
|
Humidity Range |
30% ~ 98% RH |
|
Water Spray Cycle |
1~9999H59M (Adjustable) |
|
Controller |
Programmable color LCD touch screen controller |
|
Radiometer |
UV Radiometer, Tolerance: ±5% |
|
Exterior Material |
Steel plate with protective coating |
|
Interior Material |
SUS304 stainless steel |
|
Thermal Insulation |
Polyurethane foam and insulation cotton |
|
Observation Window |
Interior lighting, double-layer thermo stability silicone rubber sealing |
Product Details

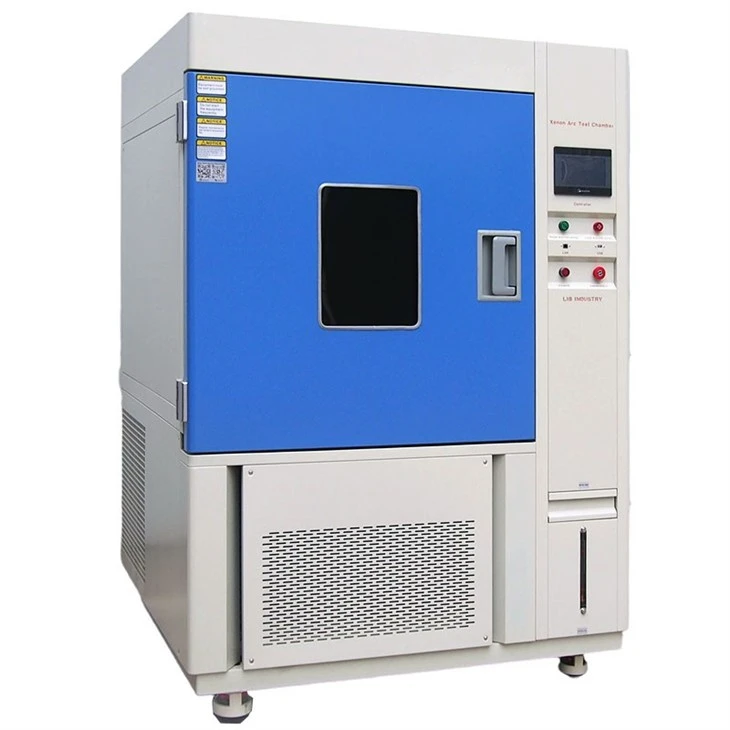

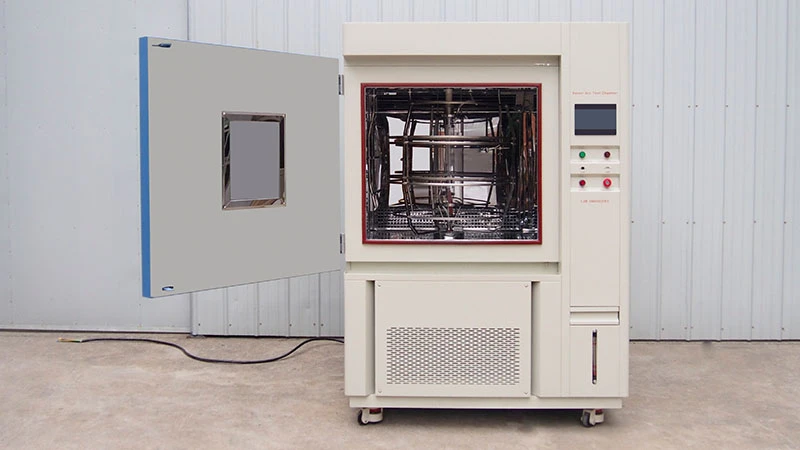

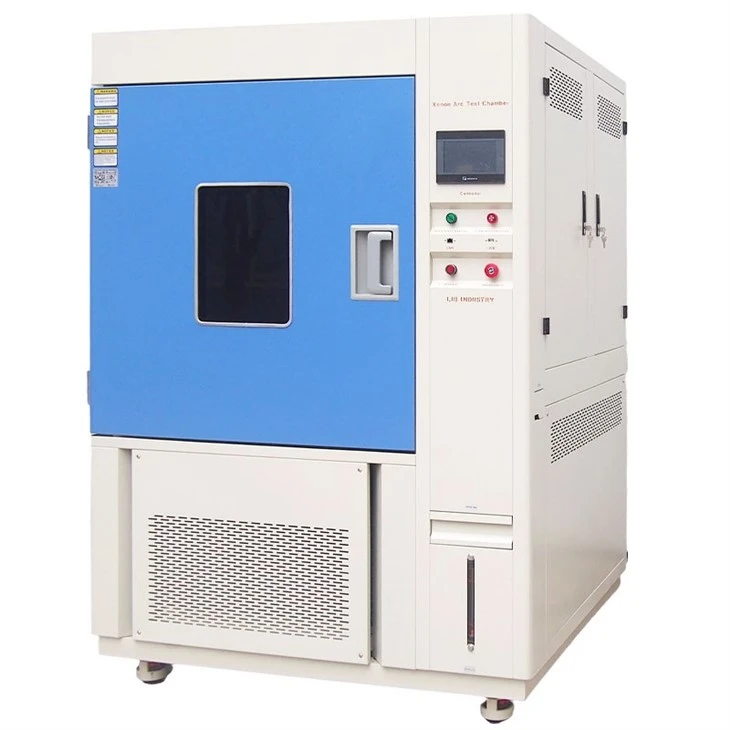

G151 Xenon Arc Weathering Test Apparatus

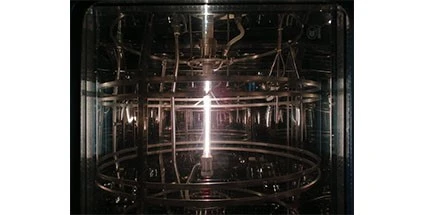

Water-Cooled Xenon Arc Lamp
4.5 kW water-cooled xenon lamp to deliver stable, full-spectrum sunlight simulation. The water cooling system effectively controls lamp temperature, ensuring constant irradiance between 0.35–0.70 W/m² @ 340 nm and extending lamp life up to 1600 hours for long-term reliability.

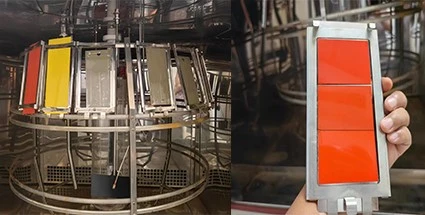

Rotating Specimen Holder
A rotating holder (speed adjustable) ensures uniform light and temperature distribution. It accommodates up to 42pcs standard panels (95mm*200 mm) or customized sample holder for non-standard samples.
Spray and Water Circulation System
An integrated automatic spray and closed-loop water circulation system simulates rainfall and condensation. Using deionized water, it maintains purity and reduces waste. Spray intervals are programmable from 1 to 9999 minutes.

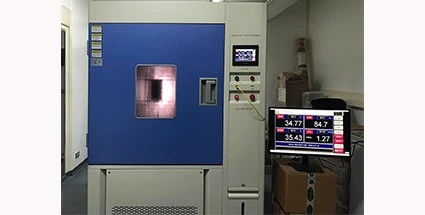

Intelligent Controller
The 7-inch color touch screen provides precise control of irradiance, temperature, humidity, and spray cycles. it supports data storage and USB/Ethernet export. Intuitive touch-screen controls, automatic data logging, and real-time monitoring simplify long-duration testing.
Discover Precision and Reliability with the G151 Xenon Arc Weathering Test Apparatus.It provides accurate, accelerated weathering tests for coatings, plastics, textiles, and electronics. Reach out to LIB Industry and get a detailed quote in just 1–3 hours.
Request Your Personalized Quote Now atinfo@libclimatetest.com .
