The upper limit temperature of the preheating zone can reach +220℃, and the lowest temperature of the precooling zone is -75℃. The test piece can undergo severe temperature changes within 3 seconds.
Key features

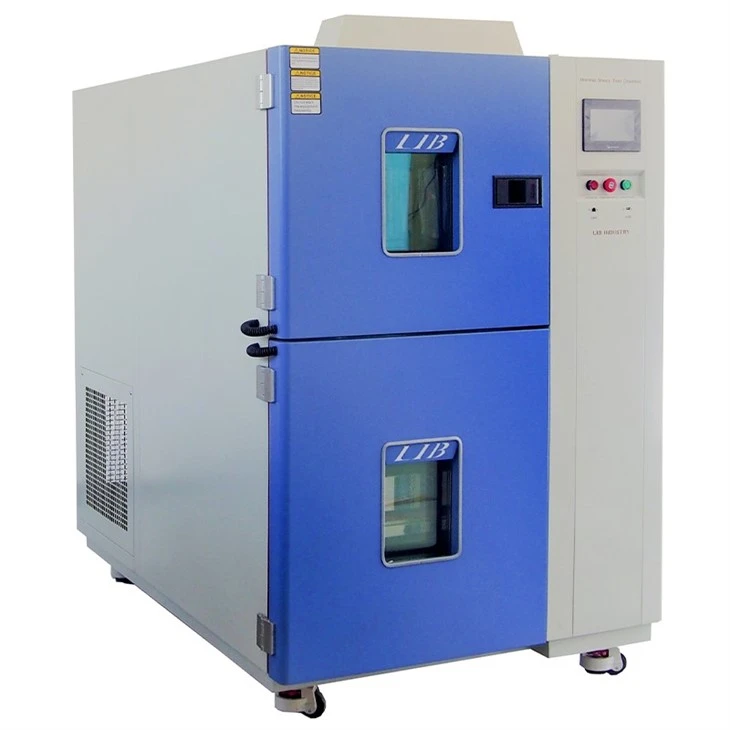

Thermal Shock Test Chamber
Extreme temperature difference conversion within seconds.
Accurate temperature control,temperature fluctuation≤±0.5℃.
Electronics, automobiles, aerospace and other fields.
Material aging through cold and thermal shock.
UN38.3,JISC8712,UL1642,ISO12405-1,ISO12405-2,IEC62660-2
Intelligent temperature control system reduces energy consumption.
Customized solutions:air to air,air to liquid,liquid to liquid.
parameter list
Thermal Shock Test Chamber
|
Model |
TS-162 |
TS-340 |
TS-500 | TS-1000 | |
|
Internal Dimension (mm) |
300*300*250 |
450*450*360 |
650*650*500 |
850*850*700 |
|
|
Overall Dimension (mm) |
1560*870*1545 |
1710*1020*1845 |
1910*1220*2265 |
2110*1420*2665 |
|
|
Interior Volume |
22L |
72L |
300L | 505L | |
|
Loading Capacity |
20kg |
30kg |
50kg |
60kg | |
|
Pre-heat Room |
Upper limit Temperature |
+220℃ |
|||
|
Heating Time |
Ambient ~ + 200℃, within 30 minutes |
||||
|
Pre-cool Room |
Lower limit Temperature |
-75℃ |
|||
|
Cooling time |
Ambient ~ -70℃, within 30 minutes |
||||
|
Test Room |
High Temperature Exposure Range |
Ambient +20 ~ +200°C |
|||
|
Low temperature Exposure Range |
–65 ~ -5°C |
||||
|
Temperature Fluctuation |
≤±0.5℃ |
||||
|
Temperature Deviation |
≤±3 ℃ |
||||
|
Temperature Recovery Time |
Within 5 minutes |
||||
|
Cooling System |
Mechanical compression refrigeration system |
||||
| Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Product details

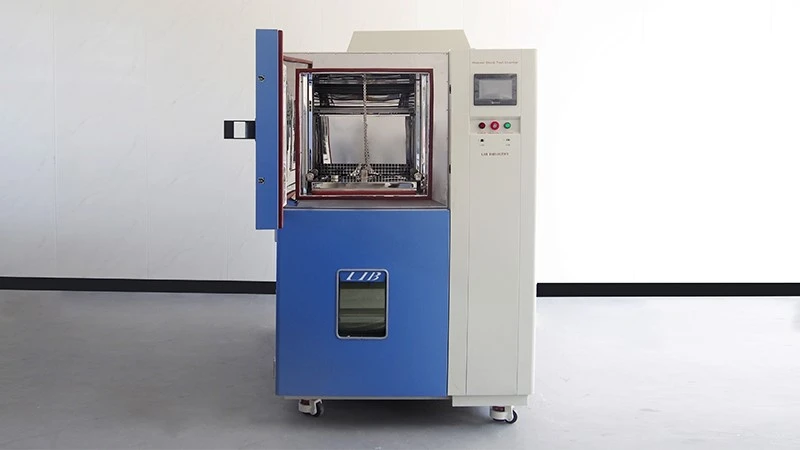

Thermal Shock Test Chamber

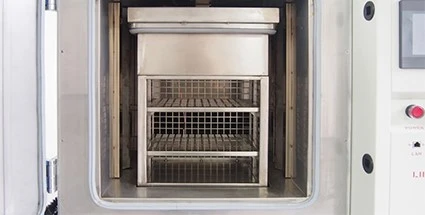

Basket with Slide Rail
The test chamber is equipped with a sample basket with a slide rail, which can be pushed and pulled smoothly, reducing the shaking and impact during manual operation and ensuring the accuracy and safety of the sample position during the test process.

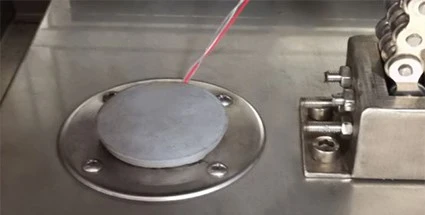

Cable Hole
The equipment is equipped with standard-sized lead holes and adopts a highly sealed structure, which not only facilitates the testing of connections but also ensures that the temperature and humidity environment inside the box is not disturbed.
Wind Circulation
The optimally designed air duct circulation system achieves uniform air distribution in the cold chamber and the hot chamber.

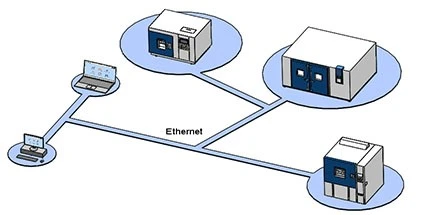

Remote Centralized Control
Users can remotely monitor and adjust the test parameters through a computer or mobile terminal. It is applicable to the unified management of multiple devices or the testing environment where on-site operation is not possible, improving the automation level of the laboratory.
Hot models, support personalized customization!Three zones independent temperature control. Professional team provides program design and operation training. Submit your needs immediately, and your dedicated consultant will connect with you within 24 hours.
