The temperature humidity cycling chamber precisely controls the changes in temperature and humidity to simulate the environments that products may encounter under natural climatic conditions, such as alternating cold and heat, humidity, and high-temperature aging, thereby evaluating the environmental resistance and service life of materials, components or complete machines.
Key features

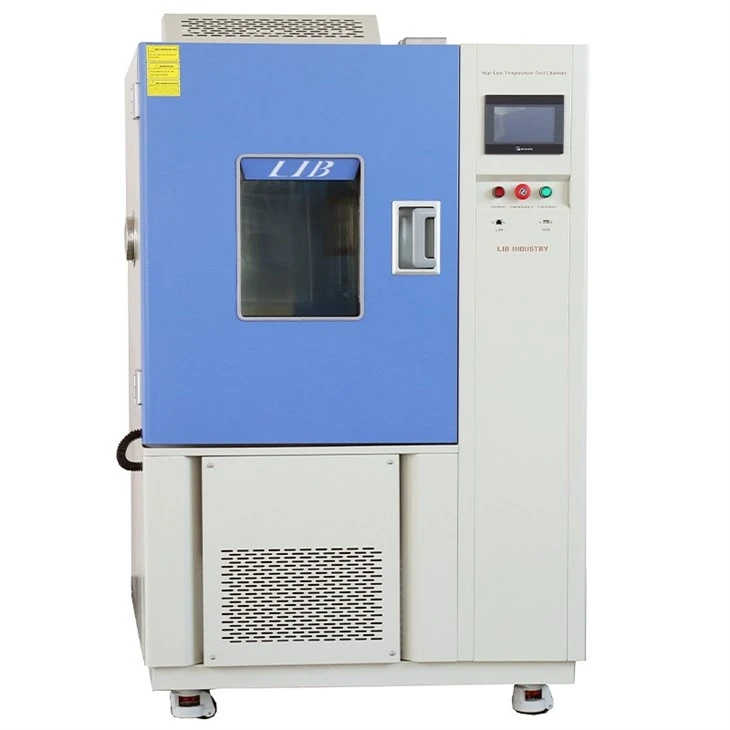

Temperature Cycling Chamber
Wide temperature range to meet various test requirements.
Fast heating/cooling up to 5℃/min (linear speed, 10 ℃,15℃/min for high-speed models).
Temperature accuracy ±0.5℃, uniformity ±2℃.
Low power standby mode optimizes the cooling system and reduces power consumption by 20%.
Overtemperature alarm, leakage protection, compressor overload protection, abnormal automatic power off.
Standard with four casters with brake device, adjustable height, easy to move.
Comply with CE, RoHS, ISO 9001 certification.
parameter list
Temperature Cycling Chamber
|
Model |
TR5-100 |
TR5-225 |
TR5-800 | TR5-1000 |
|
Internal Dimension (mm) |
400*500*500 |
500*600*750 |
800*1000*1000 | 1000*1000*1000 |
|
Overall Dimension (mm) |
900*1050*1620 |
1000*1140*1870 |
1300*1540*2120 |
1500*1540*2140 |
|
Interior Volume |
100L |
225L |
800L | 1000L |
|
Heat load |
1000W |
|||
|
Temperature Range |
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ |
|||
|
Temperature Fluctuation |
± 0.5 ℃ |
|||
|
Temperature Deviation |
± 2.0 ℃ |
|||
|
Cooling Rate |
5 ℃ / min |
|||
|
Heating Rate |
5 ℃ / min |
|||
|
Controller |
Programmable color LCD touch screen controller,PC Link, LAN interface | |||
|
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV A-class | |||
|
Cooling system |
Mechanical compression refrigeration system,environmentally friendly refrigerant. | |||
|
Refrigerating unit |
French TECUMSEH compressor | |||
|
Interior Material |
SUS304 stainless steel |
|||
|
Power Supply |
380V |
|||
|
Maximum Noise |
65 dBA |
|||
Product details
Temperature Cycling Chamber
Workroom
The workroom is made of SUS304, the shell is cold-rolled steel plate, and the surface is coated with anti-corrosion coating,the mirror-like material is easy to clean.
Double layer insulation
100mm polyurethane foam insulation material, energy saving and high efficiency, reduce the heat exchange between the indoor and external environment, improve the temperature stability of the indoor.

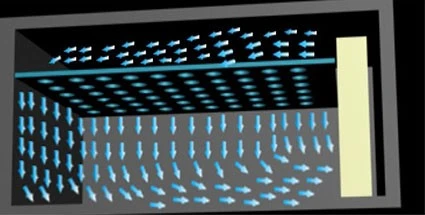

Forced air circulation
Equipped with high efficiency centrifugal fan, wind speed: 2~3m/s, stable air flow, to ensure uniform temperature distribution, low noise.

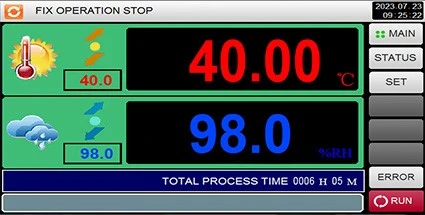

Intelligent control system
Color touch screen, real-time data display, LAN/USB remote monitoring, data storage/download function. Programmable cycle: preset up to 100 test programs, each program has 100 segments; Continuous or cyclic testing is supported.
The LIB temperature cycling chamber offers customized solutions for special requirements, including: adjustable temperature range, workroom size and heating rate
Consult LIB Now: Get tailor-made solutions, competitive quotes, and technical specifications!
