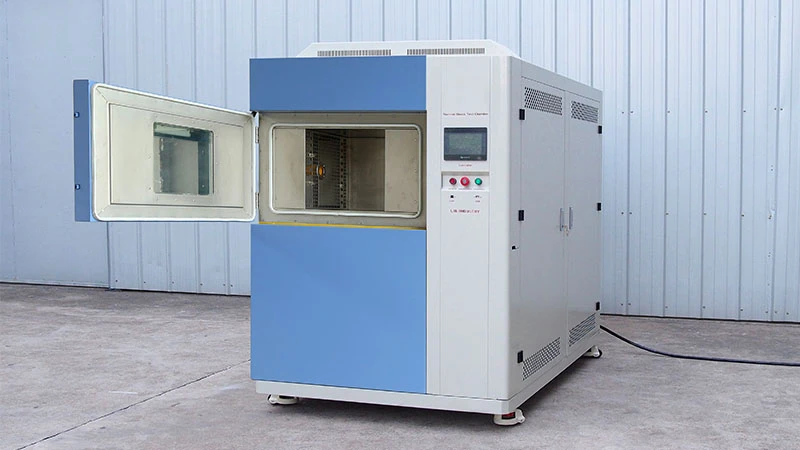

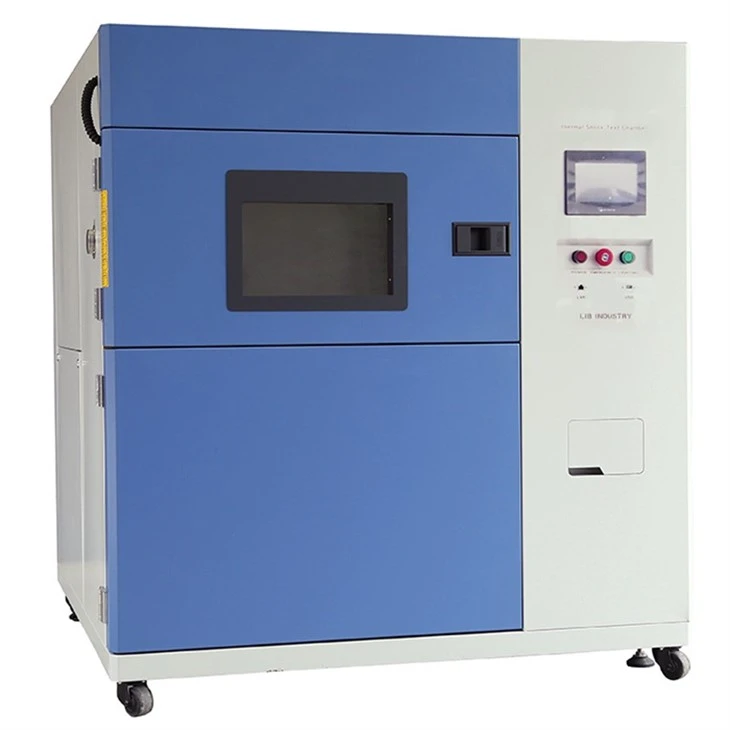

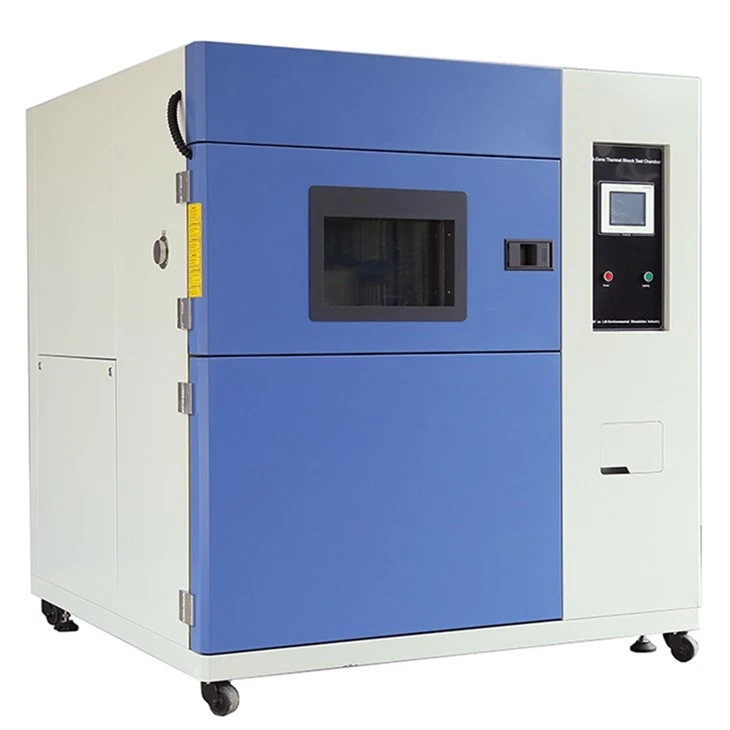

LIB temperature impact test chambers(3 zones) make sample undergone hot and cold environment with a specific temperature change rate.There are high temp zone(up to +220 ℃),low temp zone(down to -70℃) and workroom.The transfer of heat and cold is achieved through the pneumatic damper on the side.
Key features
Temperature Impact Test Chamber
Preheating and precooling rooms to achieve faster test temperature.
The size and weight of the DUTs are not limited by the lifting basket.
Efficient temperature control, RT to maximum/low temperature within 30 minutes.
One zone for test,which makes external size smaller.
Internal capacity 100L to 500L optional, size can be customized.
Stable temperature,temperature fluctuation ≤ ±0.5℃.
Controlled remotely, and the data can be saved and transmitted.
parameter list
Temperature Impact Test Chamber
|
Model |
3TS-100 |
3TS-210 |
3TS-300 | 3TS-500 | |
|
Internal Dimension (mm) |
500*500*400 |
700*600*500 |
700*780*550 |
900*800*700 | |
|
Overall Dimension (mm) |
1150*1950*2100 |
1000*1140*1870 |
1200*1340*2020 |
1500*1540*2140 |
|
|
Interior Volume |
100L |
210L |
300L | 500L | |
|
Loading Capacity |
10kg |
15kg |
25kg |
35kg | |
|
Pre-heat Room |
Upper limit Temperature |
+220℃ |
|||
|
Heating Time |
Ambient ~ + 200℃, within 30 minutes |
||||
|
Pre-cool Room |
Lower limit Temperature |
-75℃ |
|||
|
Cooling time |
Ambient ~ -70℃, within 30 minutes |
||||
|
Test Room |
High Temperature Exposure Range |
Ambient +20 ~ +200°C |
|||
|
Low temperature Exposure Range |
–65 ~ -5°C |
||||
|
Temperature Fluctuation |
≤±0.5℃ |
||||
|
Temperature Deviation |
≤±3 ℃ |
||||
|
Temperature Recovery Time |
Within 5 minutes |
||||
|
Cooling System |
Mechanical compression refrigeration system |
||||
| Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Product details
Temperature Impact Test Chamber

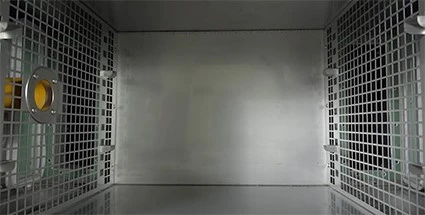

Workroom
SUS304 stainless steel, resistant to high and low temperatures and corrosion. By rapidly introducing air from the high-temperature zone and the low-temperature zone, rapid temperature changes are achieved, ensuring that the test samples can be quickly switched between extreme cold and hot environments.
Circulating air system
By adopting high-volume, high-static pressure circulating fans and optimizing the air duct design, the air in the cold chamber and the hot chamber circulates independently and evenly, enhancing the uniformity of the test.
Observation window
The observation window is made of multi-layer hollow tempered glass and is equipped with an anti-frosting heating device, which facilitates clear observation of the sample status during the test.

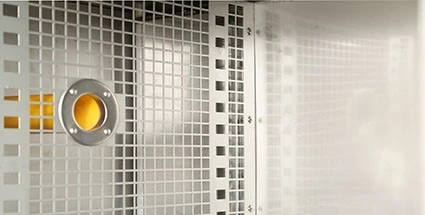

Test hole
The test hole with a diameter of 50mm facilitates the insertion of cables, sensors or external power cords during the test, and is equipped with a silicone sealing plug to ensure good sealing and temperature control performance.
Hot models, support personalized customization!Three zones independent temperature control. Professional team provides program design and operation training. Submit your needs immediately, and your dedicated consultant will connect with you within 24 hours.
