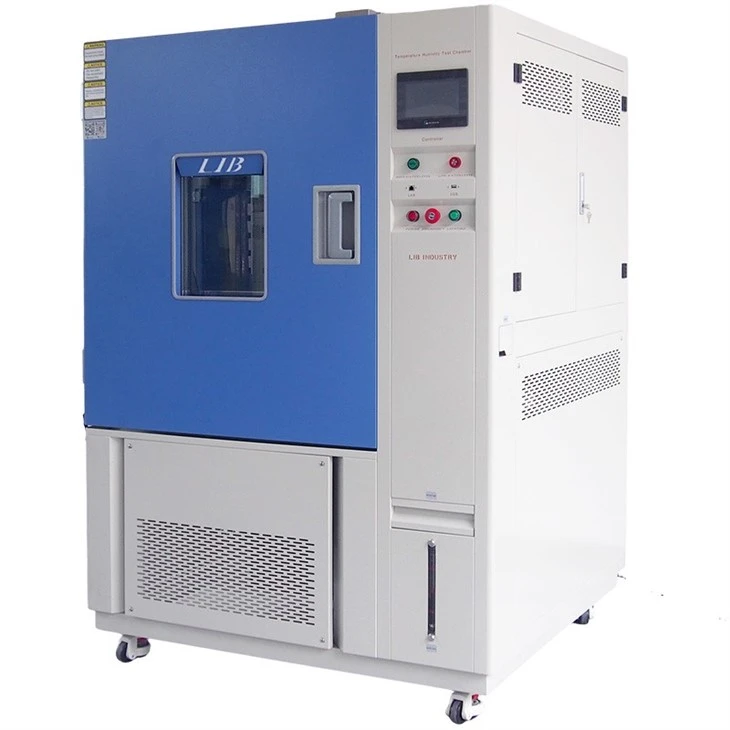

Endurance Test Rapid Temperature Aging Chamber

The Endurance Test Rapid Temperature Aging Chamber simulates repeated exposure to extreme temperature transitions, from –70°C to +150°C, with rapid temperature ramp rates up to 5/10/15/20°C per minute, ensuring products can withstand mechanical and structural stress caused by thermal expansion and contraction. Standard chamber volumes range from 100L to 1000L, accommodating everything from small electronic assemblies to large automotive components

Whether for IC packaging, sensors, connectors, or mechanical assemblies, it helps identify weaknesses, predict lifespan, and verify design robustness under real-world conditions.

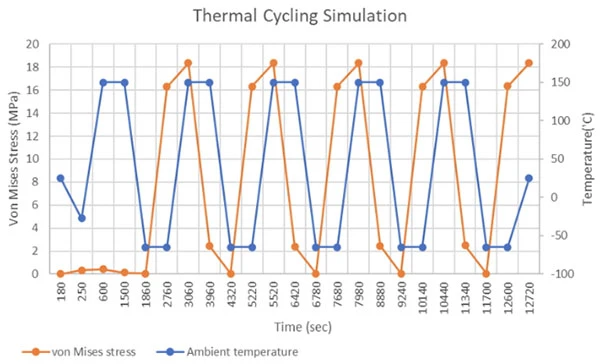

Rapid temperature cycling exposes materials to alternating hot and cold environments in quick succession. This test is critical for identifying how thermal stress impacts product performance and long-term reliability.

Solder joint fatigue and cracking:

Repeated expansion and contraction between –70°C and +150°C can lead to micro-cracks in solder joints, a common cause of electronic failure.

Seal and enclosure degradation:

Gaskets, adhesives, and sealing materials may lose elasticity or crack after repeated thermal shocks, particularly at high ramp rates of 10–15°C/min.

Material warping and delamination:

PCB substrates and composite structures may delaminate or deform under rapid temperature transitions, making chamber uniformity of ±2°C critical.

Component lifespan validation:

Accelerated thermal cycling simulates years of operational stress in just hours, enabling lifespan estimation and durability verification.

By simulating these rapid transitions with programmable, high-speed temperature cycles and maintaining precise control over internal conditions, the LIB Industry endurance test chamber helps engineers detect design flaws early, refine materials, and ensure long-term performance consistency.

Model	TR5-100	TR5-225	TR5-800	TR5-1000
Internal Dimension (mm)	400*500*500	500*600*750	800*1000*1000	1000*1000*1000
Overall Dimension (mm)	900*1050*1620	1000*1140*1870	1300*1540*2120	1500*1540*2140
Interior Volume	100L	225L	800L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Cooling Rate	5 ℃ / min
Heating Rate	5 ℃ / min
Controller	Programmable color LCD touch screen controller,PC Link, LAN interface
Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class
Cooling system	Mechanical compression refrigeration system,environmentally friendly refrigerant.
Refrigerating unit	French TECUMSEH compressor
Interior Material	SUS304 stainless steel
Power Supply	380V
Maximum Noise	65 dBA





Details & Highlights of Endurance Test Rapid Temperature Aging Chamber

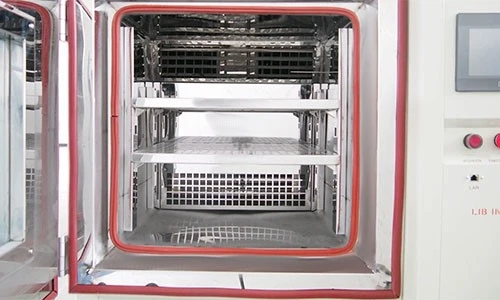

Durable SUS304 Stainless Steel Interior
Corrosion-resistant SUS304 stainless steel with seamless welding and rounded corners ensures long service life and easy maintenance.

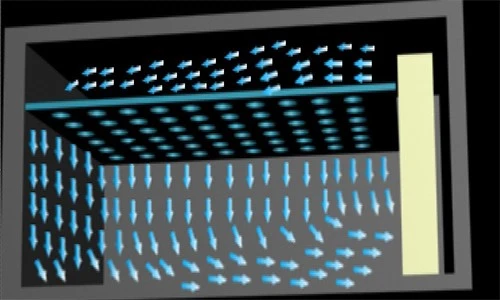

High-Speed Air Circulation System
Axial air circulation and ducted airflow design ensure rapid heat exchange and uniform temperature distribution.

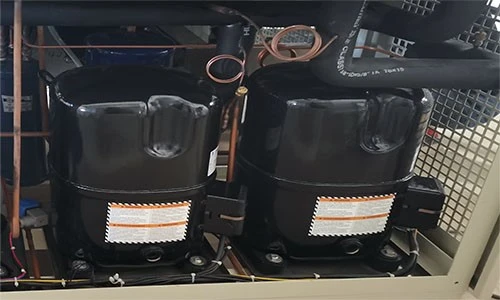

Efficient Cascade Refrigeration
Dual-stage compressor system provides ultra-fast cooling with high energy efficiency and stable performance during continuous cycling.

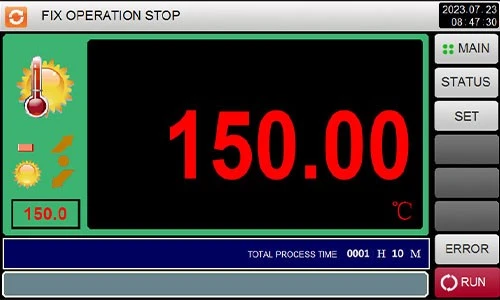

User-Friendly Control Interface
Real-time temperature graph, programmable profiles with 99 steps, USB data logging, and remote monitoring capability.









Frequently Asked Questions About Medical Stability Temperature Conditioning Chamber

1. What type of refrigeration system does the chamber use? Can it be water-cooled?

+

-

The rapid temperature aging chamber uses a high-efficiency cascade mechanical compression refrigeration system with French TECUMSEH compressors, ensuring rapid and stable temperature transitions. The standard configuration is air-cooled, but water-cooled options are available for high-power or continuous testing applications.

2. Are the sample racks adjustable?

+

-

Yes, the rapid temperature aging chamber is equipped with 2 stainless-steel adjustable shelves, allowing flexible placement of multiple samples or assemblies. This ensures even exposure to thermal cycles and accommodates different product sizes.

3. What other rapid temperature testing equipment does LIB Industry provide?

+

-

LIB Industry offers a full range of rapid temperature change and thermal shock solutions, including benchtop, walk-in types , and customized units.

Start Your Rapid Temperature Endurance Testing Today

Turn reliability testing into a competitive advantage. With LIB Industry's advanced Endurance Test Rapid Temperature Aging Chamber, you can shorten validation time, minimize failures, and ensure every component meets the highest quality standards.

Get in touch with LIB Industry now sales@libtestchamber.com - receive your customized solution and quotation within 1–3 hours, and start testing with precision, speed, and global compliance.
