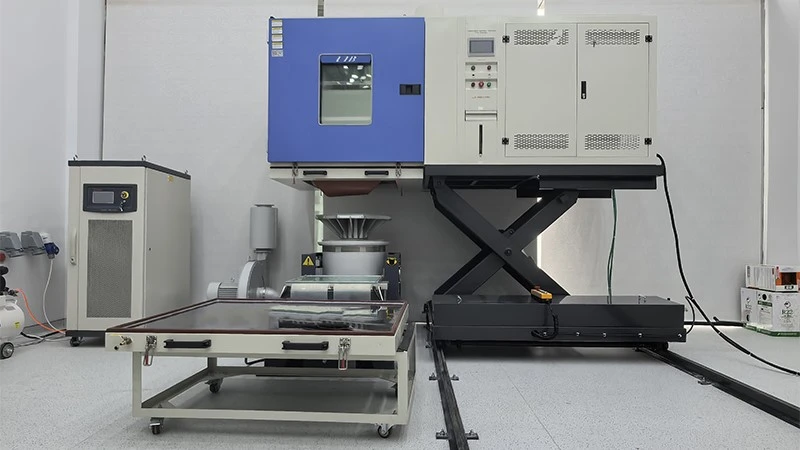

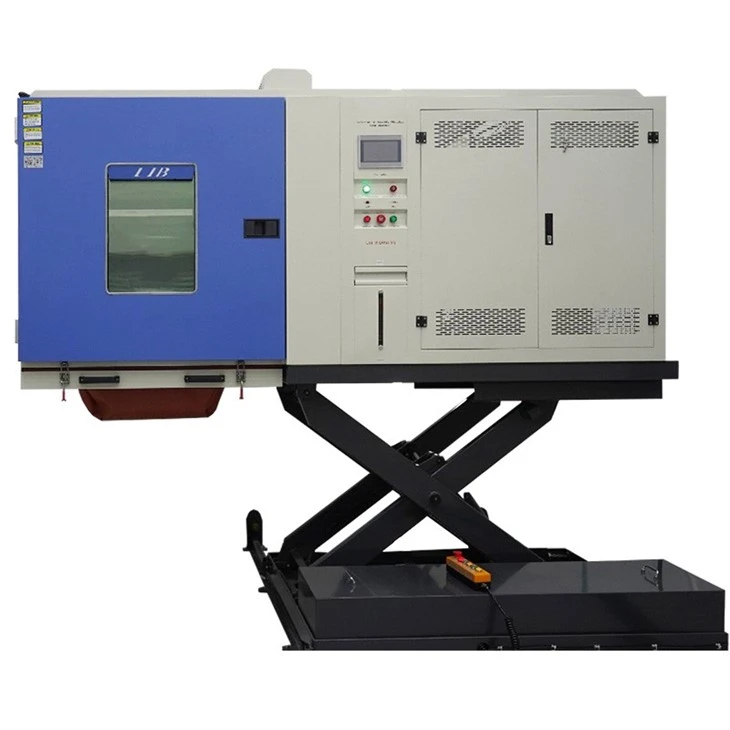

The LIB industry Vibration Test Chamber is a versatile solution that combines precise environmental control with dynamic vibration testing. Available in capacities from 100 L to 1000 L, with larger custom sizes possible, it is designed to meet a wide range of testing requirements. The system integrates a temperature and humidity chamber with a vibration platform, allowing sine, random, and multi-axis vibration modes over a frequency range of 2–4000 Hz. For added flexibility, the vibration table can be removed, enabling the chamber to function independently as a temperature and humidity test chamber. The robust SUS304 stainless steel interior and protective exterior ensure durability and long-term stability, while the digital power amplifier, mechanical compression refrigeration, and 4 kW blower provide consistent, repeatable test conditions.
Key Advantages
Vibration Test Chamber
Versatile Capacity – Available from 100 L to 1000 L, with larger custom sizes possible to suit different testing requirements.
Combined Testing Function – Integrates temperature & humidity control with a vibration platform for comprehensive environmental and mechanical stress testing.
Standard Compliance – Designed to meet widely recognized environmental and vibration testing standards, including:IEC 60068-2-6,IEC 60068-2-64,MIL-STD-810G,ISO 16750-3,IEC 60068-2-78 and etc.
Wide Vibration Range – Sine, random, and multi-axis/mixed vibration modes from 2–4000 Hz, supporting payloads up to 1000 kgf.
Precise Environmental Control – Temperature range: -50 °C to 150 °C (±0.5 °C fluctuation); humidity: 30 %–98 % RH (±2.5 % RH).
Durable Construction – SUS304 stainless steel interior and protective steel exterior for long-term reliability.
Advanced Control & Safety – Digital power amplifier, 4 kW blower, mechanical compression refrigeration, and multiple safety protections (over-temperature, over-current, refrigerant pressure, water shortage).
Technical Specifications
Vibration Test Chamber
|
Model |
THV-225 |
|||
Temperature Range |
-50℃ ～ +150 ℃ |
|||
| Temperature Fluctuation |
± 0.5 ℃ |
|||
| Temperature Deviation |
± 2.0 ℃ |
|||
| Humidity Range |
30% ~ 98% RH |
|||
| Humidity Deviation |
± 2.5% RH |
|||
Cooling Rate |
5 ℃ / min |
|||
| Heating Rate |
5 ℃ / min |
|||
Rated Force of Vibration |
1000kgf |
|||
Frequency Range of Vibration |
2 to 4000 Hz |
|||
| Armature Diameter of shaker |
φ240mm |
|||
horizontal sliding table |
600*600 mm |
|||
Power Amplifier |
Digital power amplifier |
|||
| Head Expander |
600*600 mm |
|||
Blower |
4Kw blower, including muffler. |
|||
Cooling system |
Mechanical compression refrigeration system,environmentally friendly refrigerant |
|||
| Safety Device |
Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection |
|||
| Standard Configuration | French TECUMSEH compressor | |||
Product Details
Vibration Test Chamber

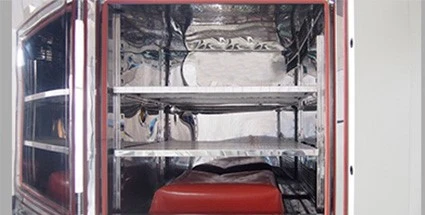

Precision Environmental Workroom
- Durable SUS304 stainless steel interior ensures long-term reliability and easy maintenance
- Adjustable 2 shelves provide flexible placement for a variety of test samples
- Observation window made of double-layer tempered insulated glass with internal LED lighting; heated to prevent condensation
Dynamic Vibration Platform
- Removable 600×600 mm horizontal sliding table designed for convenient sample loading,Supporting XY vibration modes
- Rated force of 1000 kgf ensures robust vibration simulation
- Frequency range of 2–4000 Hz realistically reproduces operational stresses and fatigue conditions
Smart Control Hub
- Advanced digital touchscreen interface simplifies operation and reduces setup time
- Programmable temperature, humidity, and vibration test profiles with real-time monitoring
- Data logging allows precise tracking of test cycles and ensures test reproducibility
Airflow & Cooling System
- 4 kW blower with muffler delivers uniform airflow for consistent environmental distribution
- Mechanical compression refrigeration provides rapid heating and cooling, stabilizing test conditions quickly
All vibration test chambers come with a 3-year warranty, lifetime technical support and one-stop solution providing peace of mind for long-term operation,with fully customizable chamber sizes and configurations tailored to your specific testing requirements.
With rapid delivery within 7–15 days and a dedicated support team ready to respond within 1–3 hours, LIB industry ensures your projects stay on schedule and your testing needs are met efficiently, reliably, and without compromise.
