Medical Stability Temperature Conditioning Chamber

With a temperature range of -20°C to 150°C and humidity control from 20% RH to 98% RH, this chamber ensures your pharmaceutical products maintain quality, efficacy, and safety under controlled stress conditions. As a premier manufacturer of environmental simulation chambers with over 16 years of experience, LIB industry offers multiple standard models alongside flexible customization options, including chamber dimensions, performance specifications, and integrated illumination systems. LIB Industry's medical stability temperature control chambers deliver reliable, repeatable, and secure stability testing for vials, ampoules, syringes, tablets, and other dosage forms.

Pharmaceutical products are highly sensitive to environmental conditions. Stability testing under controlled temperature and humidity conditions is critical to ensure consistent drug quality throughout its shelf life.

LIB industry's Medical Stability Temperature Conditioning Chamber allows simulation of various global climatic zones defined in ICH Q1A and WHO Technical Report Series 953.

Typical testing conditions include:

• Long-term stability test: 25°C / 60% RH (Zone II), 30°C / 65% RH (Zone IVa)
• Accelerated test: 40°C / 75% RH
• Intermediate test: 30°C / 75% RH
• Refrigerated condition: 5°C ± 3°C
• Frozen condition: –20°C ± 5°C

By using a Medical Stability Temperature Conditioning Chamber, pharmaceutical companies can confidently assess product stability, identify early-stage degradation, and ensure global regulatory compliance before market release.

Model	T-100	T-225	T-500	T-1000
Internal Dimension (mm)	400*500*500	500*600*750	700*800*900	1000*1000*1000
Overall Dimension (mm)	900*1050*1620	1000*1140*1870	1200*1340*2020	1500*1540*2140
Interior Volume	100L	225L	500L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Controller	Programmable color LCD touch screen controller,PC Link, LAN interface
Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class
Cooling system	Mechanical compression refrigeration system,environmentally friendly refrigerant.
Refrigerating unit	French TECUMSEH compressor
Water supply system	Automatic water supply; Water purification system





Details & Highlights of Medical Stability Temperature Conditioning Chamber

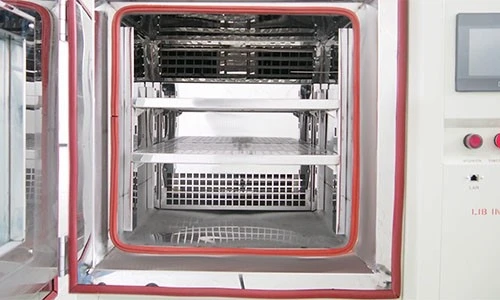

Robust Stainless Steel Interior

Constructed with SUS304 corrosion-resistant stainless steel, the chamber features smooth walls and rounded corners to prevent cold or hot spots. The workroom is equipped with a double-layer perforated sample rack as standard.

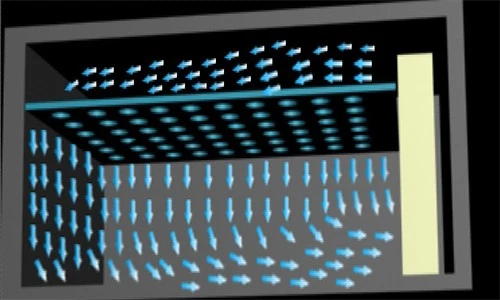

Optimized Environmental Distribution

Multi-directional forced-air circulation ensures temperature ±2°C and humidity ±3% RH uniformity. Eliminates dead zones for consistent testing of all samples. Rapid recovery: <10 min for temperature, <15 min for humidity.

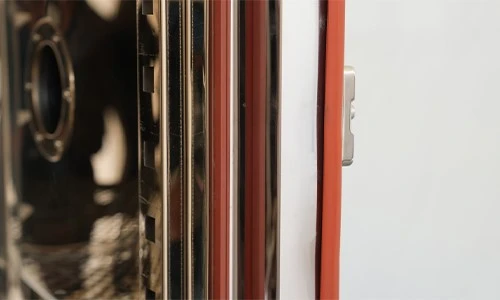

Door Sealing and Panel Design

Double-layer insulated door with silicone gasket sealing prevents air leakage. Concave-convex reinforcement enhances rigidity and reduces vibration. Observation window allows visual monitoring without opening the chamber.



Smart Control & Monitoring System

The 7-inch color touchscreen controller supports 99-step programmable profiles, real-time temperature & humidity graphing, USB and Ethernet data export, and remote monitoring. Users can program long-term, accelerated, or intermediate stability tests with precise ramp rates (heating/cooling 1–3°C/min, humidification 1–5% RH/min).







Frequently Asked Questions About Medical Stability Temperature Conditioning Chamber

1. What other stability chambers does LIB Industry offer?

+

-

In addition to the Medical Stability Temperature Conditioning Chamber, LIB Industry provides a full range of environmental test chambers, including temperature & humidity chambers, thermal shock chambers, UV and xenon aging chambers, and IP dust and water ingress chambers, meeting diverse testing needs across pharmaceutical, electronics, and materials industries.

2. Is the inner workroom easy to clean and maintain?

+

-

Yes. The interior is made of high-grade SUS304 stainless steel with smooth, rounded corners that prevent residue buildup. It can be easily wiped or sanitized using mild disinfectants-ideal for maintaining a contamination-free environment during pharmaceutical stability studies.

3. Can I customize the temperature, humidity range, or chamber size?

+

-

Absolutely. LIB Industry offers custom-built stability chambers, as well as customizable volumes from 100L to 1000L or larger. Tailored configurations ensure perfect compatibility with your testing protocols and facility requirements.

Ensure Pharmaceutical Product Stability Today

Guarantee the quality, safety, and efficacy of your drugs and vaccines under controlled environmental conditions. Contact LIB Industry today sales@libtestchamber.com to customize your Medical Stability Temperature Conditioning Chamber. Receive a quotation and preliminary plan within 1–3 hours.
